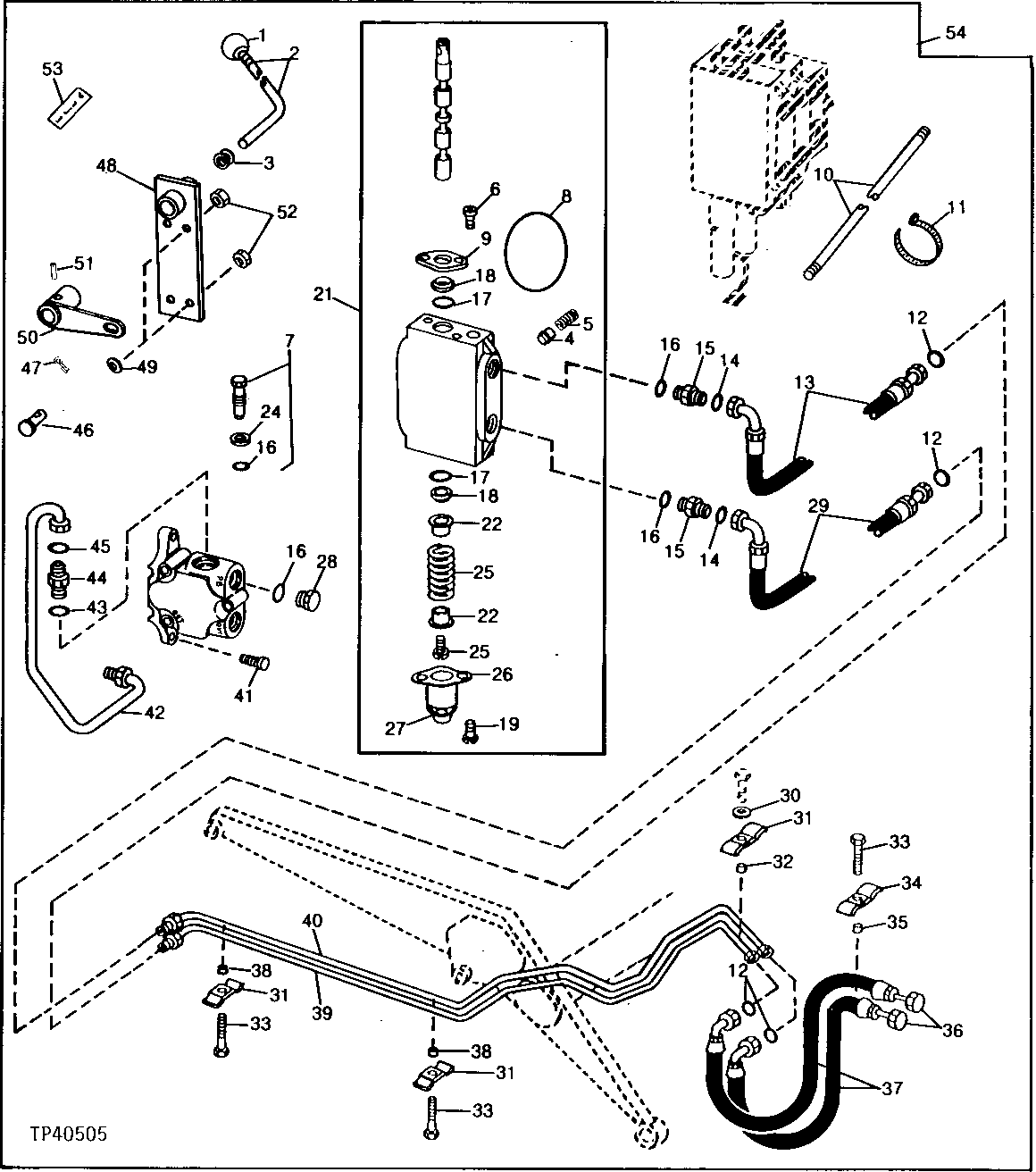

THIRD FUNCTION VALVE (MANUAL CONTROL) (SERIAL NO. 768252- ) [02L01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T68099	1	KNOB	-
2	T118642	1	ROD	-
3	A3488R	1	Grommet	-
4	T81538	1	Poppet	-
5	T81539	1	Spring	-
6	21H1018	2	SCREW	-
7	AT83174	2	Fitting Plug	-
8	T118685	1	O-Ring	-
9	T81524	1	Plate	-
10	T118650	1	Tie Rod Assembly	-
10	T118651	1	Rod	-
11	R44302	3	Tie Band	-
12	T77857	7	O-Ring	-
13	AT142101	1	Hydraulic Hose	11/16" X 1 207 MM (47-1/2") X 1-3/16"
14	T77613	2	O-Ring	-
15	38H1338	2	Adapter Fitting	-
16	U12547	5	O-Ring	-
17	-	2	Part 18	(K)
18	-	2	Part 19	(K)
19	19H3554	2	Screw	1/4" X 0.880"
20	T118649	1	Housing	(NOT INCLUDED IN KIT)
21	AT114498	1	SPOOL VALVE	(SUB AT158017)
21	AT158017	1	SPOOL VALVE	(SUB FOR AT114498)
22	T81540	2	Retainer	-
23	T118879	1	Spring	-
24	T183757	2	Seal	(SUB FOR T81544 AND T141872)
25	T81541	1	Screw	-
26	T118808	1	Cap	-
27	T118799	1	Filter	-
28	R27175	3	Drain Plug	-
29	AT142102	1	Hydraulic Hose	11/16" X 1 118 MM (44") X 13/16"
30	24H958	1	Washer	25/64" X 3/4" X 0.120"
31	U10516	1	Hose Clamp	-
32	U10516	3	Hose Clamp	-
33	19H2633	3	Cap Screw	3/8" X 1-1/2"
34	U40398	1	Clamp	-
35	28H1697	1	Spacer	-
36	38H1147	2	Fitting Plug	-
37	AT142105	2	Hydraulic Hose	13/16" X 1 170 MM (46") X 13/16"
38	28H1521	2	Spacer	-
39	AT142108	1	OIL LINE	-
40	AT142107	1	OIL LINE	-
41	19H1805	2	CAP SCREW	1/2" X 2-1/4"
42	AT145781	1	OIL LINE	-
43	T76938	1	O-Ring	-
44	38H1164	1	Adapter Fitting	-
45	R29936	1	O-Ring	-
46	T19155	1	Pin Fastener	-
47	11M7081	1	Cotter Pin	2.500 X 20 MM
48	AT114485	1	BRACKET	-
49	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
50	AT47913	1	LEVER	-
51	34H312	1	Spring Pin	1/4" X 1"
52	14H1040	2	Nut	1/2"
53	T128171	1	LABEL	-
54	-	1	Part 56	( AT142112 NO LONGER AVAILABLE)

THIRD FUNCTION VALVE (MANUAL CONTROL) (SERIAL NO. 768252- ) [02L01]

Нет текстового описания
