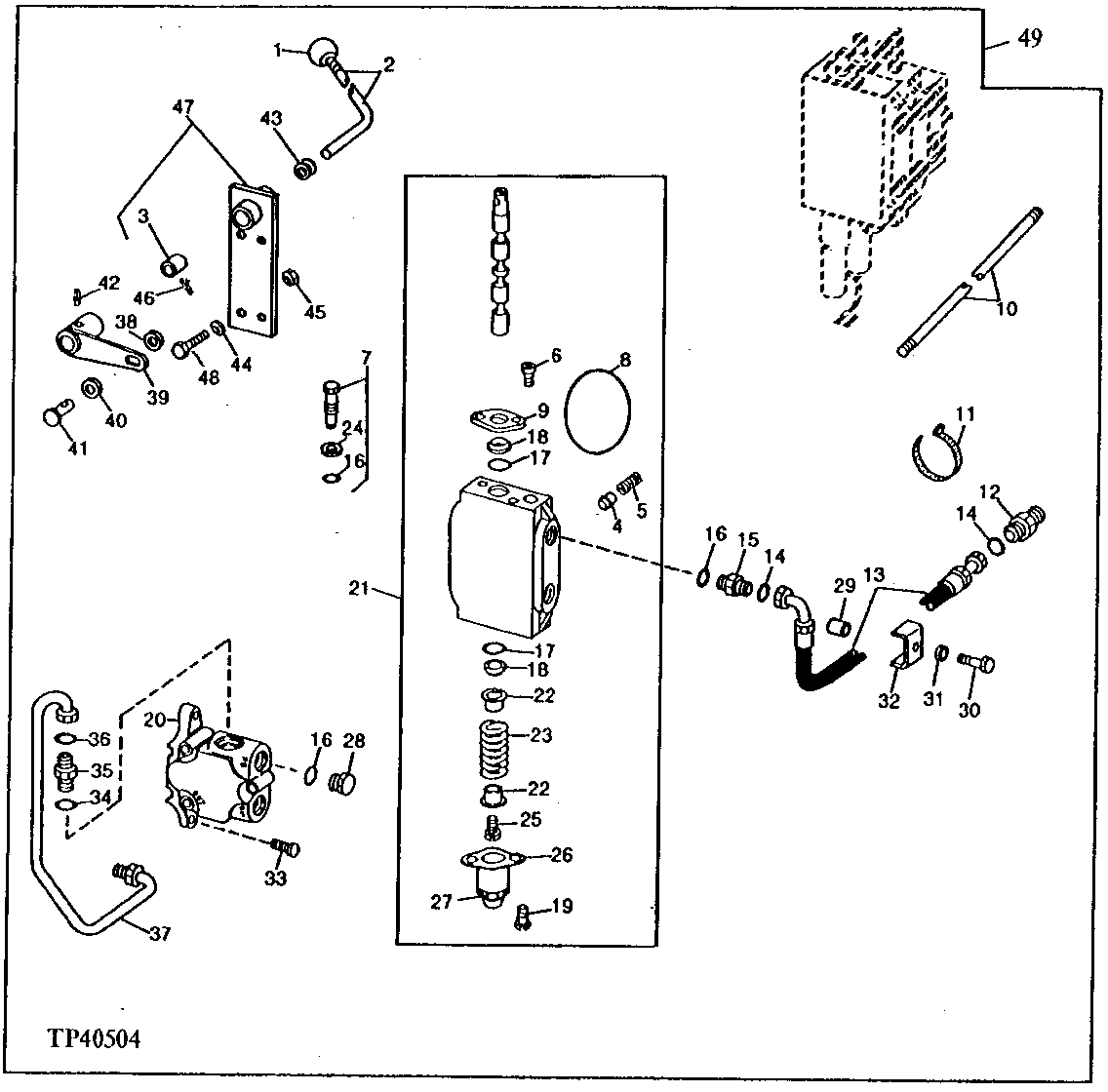

THIRD FUNCTION VALVE (MANUAL CONTROL) (SERIAL NO. 738469-768251) [02K23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T68099	1	KNOB	-
2	T118642	1	ROD	-
3	T52805	2	BUSHING	-
4	T81538	1	Poppet	-
5	T81539	1	Spring	-
6	21H1018	2	SCREW	-
7	AT83174	2	Fitting Plug	-
8	T118685	1	O-Ring	-
9	T81524	1	Plate	-
10	T118650	2	Tie Rod Assembly	-
10	T118651	1	Rod	-
11	R44302	2	Tie Band	-
12	38H1146	2	Fitting Plug	-
13	AT135725	2	HYDRAULIC HOSE - FABRICATE	11/16" X 2 900 MM (114-1/4") X 11/16", (SUB FOR AT113815)
14	T77613	4	O-Ring	-
15	38H1338	2	Adapter Fitting	-
16	U12547	5	O-Ring	-
17	-	2	Part 18	(K)
18	-	2	Part 19	(K)
19	19H3554	2	Screw	1/4" X 0.880"
20	T118649	1	Housing	(NOT INCLUDED IN KIT)
21	AT114498	1	SPOOL VALVE	(SUB AT158017)
21	AT158017	1	SPOOL VALVE	(SUB FOR AT114498)
22	T81540	2	Retainer	-
23	T118879	1	Spring	-
24	T183757	3	Seal	(SUB FOR T81544 AND T141872)
25	T81541	1	Screw	-
26	T118808	1	Cap	-
27	T118799	1	Filter	-
28	R27175	3	Drain Plug	-
29	28H3381	2	Spacer	-
30	19H1765	2	Cap Screw	3/8" X 1-3/4"
31	24H958	1	Washer	25/64" X 3/4" X 0.120"
31	24H1301	4	Washer	13/32" X 9/16" X 0.065"
32	U40398	3	Clamp	-
33	19M8306	2	Screw	M12 X 50, (INCLUDED IN KIT)
34	T76938	1	O-Ring	-
35	38H1164	1	Adapter Fitting	-
36	R29936	1	O-Ring	-
37	AT145781	1	OIL LINE	(SUB FOR AT114456)
39	AT47913	1	LEVER	-
40	W19898	1	Shim	0.010"
41	T19155	1	Pin Fastener	-
42	34H312	1	Spring Pin	1/4" X 1"
43	A3488R	1	Grommet	-
44	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
45	14H1040	2	Nut	1/2"
46	11M7081	1	Cotter Pin	2.500 X 20 MM
47	AT114485	1	BRACKET	-
48	19H1805	2	CAP SCREW	1/2" X 2-1/4"
49	-	1	Part 51	(4-IN-1 BUCKET HYDRAULIC CONVERSION PARTS) ( AT114480 NO LONGER AVAILABLE) (SUB AT142112)
