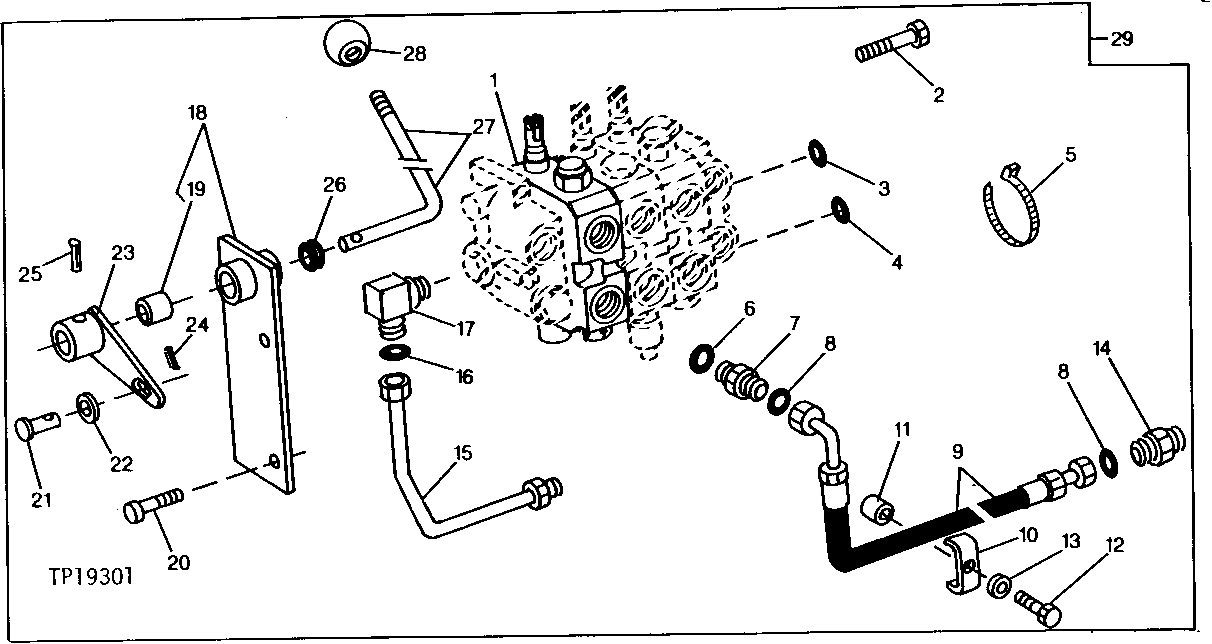

THIRD FUNCTION VALVE (MANUAL CONTROL) (SERIAL NO. -738468) [02I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT167240	1	Valve	(SUB FOR AT148686 AND AT160104)
1	AT148686	1	VALVE	(USE IF AVAILABLE) (SUB FOR AT101872) (ALSO ORDER AT160682)
2	08H4497	3	CAP SCREW	3/8" X 9-1/2"
3	T49819	2	O-Ring	(SUB FOR T106368)
4	T142419	2	O-Ring	(SUB FOR T113021)
5	R44302	2	Tie Band	-
6	R26906	2	O-Ring	-
7	38H1172	1	Adapter Fitting	(WORK PORT WITHOUT ORIFICE)
7	T100498	1	Adapter Fitting	(WORK PORT WITH ORIFICE) (SUB FOR 38H1172, THIS APPLICATION)
8	T77613	4	O-Ring	-
9	AT135725	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT113815)
10	U40398	3	Clamp	-
11	28H3381	2	Spacer	-
12	19H1765	2	Cap Screw	3/8" X 1-3/4"
12	19H2284	1	Cap Screw	3/8" X 7/8"
12	24H1301	1	Washer	13/32" X 9/16" X 0.065"
13	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
14	38H1146	2	Fitting Plug	-
15	AT114645	1	OIL LINE	(SUB FOR AT107883)
16	T77858	1	O-Ring	-
17	38H1007	1	Elbow Fitting	-
18	AT114485	1	BRACKET	(SUB FOR AT113814)
19	T52805	2	BUSHING	-
20	-	2	Part 24	(NOT INCLUDED IN KIT)
21	T19155	1	Pin Fastener	-
22	24H1287	2	Washer	9/32" X 5/8" X 0.065"
23	AT47913	1	LEVER	-
24	11M7081	1	Cotter Pin	2.500 X 20 MM
25	34H312	1	Spring Pin	1/4" X 1"
26	A3488R	1	Grommet	-
27	T118642	1	ROD	(SUB FOR T113141)
28	T68099	1	KNOB	-
29	-	1	Part 33	(INCLUDES T75654) MANUAL CONTROL ( AT113812 - NO LONGER AVAILABLE)
