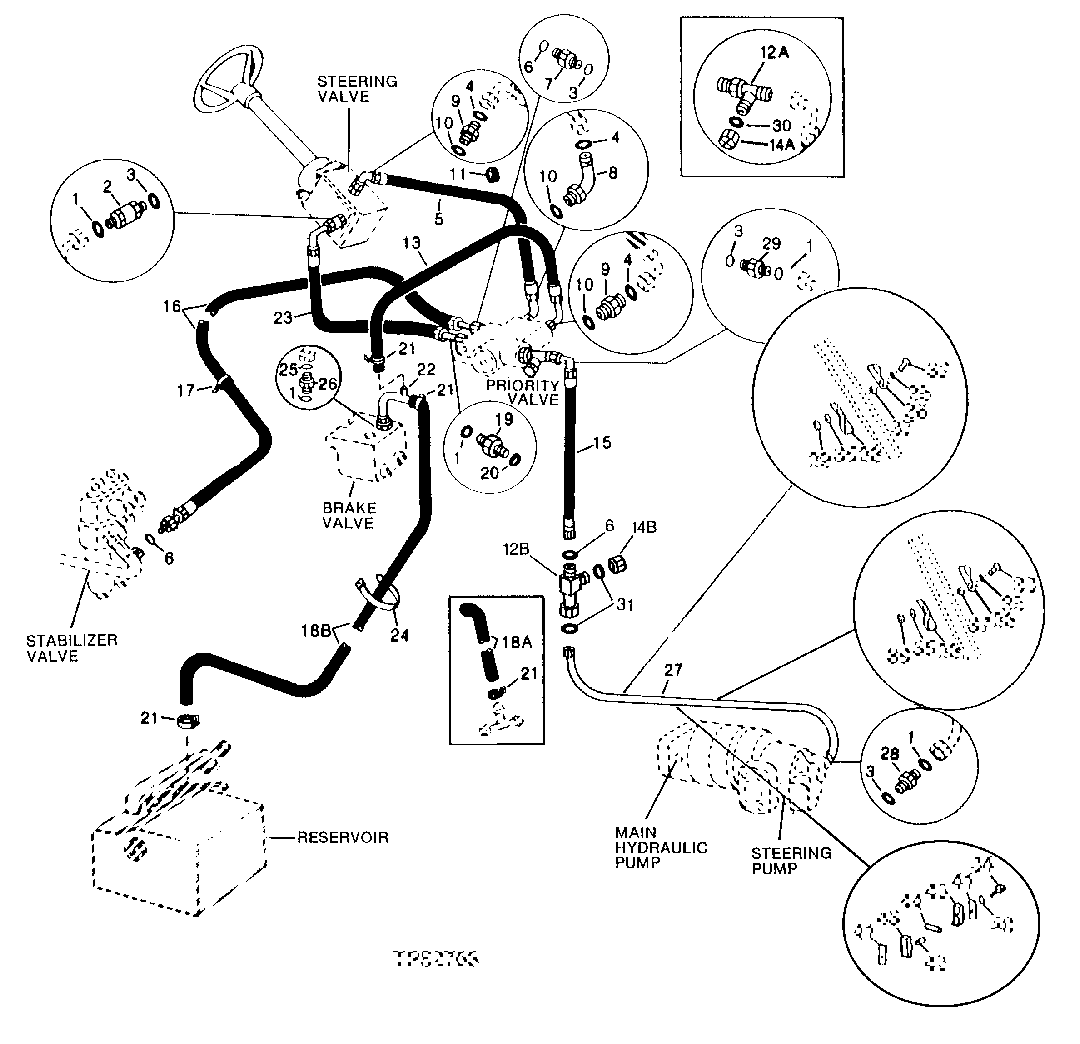

STEERING PRIORITY VALVE AND BRAKE VALVE HYDRAULICS [01J05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	4	O-Ring	-
2	AT132903	1	CHECK VALVE	(SUB FOR AT83307 AND AT107698)
3	R26375	4	O-Ring	-
4	T77814	3	O-Ring	-
5	AT101577	1	HYDRAULIC HOSE - FABRICATE	-
6	T77613	3	O-Ring	-
7	38H1171	1	Adapter Fitting	-
8	38H1003	1	Elbow Fitting	-
9	38H1159	2	Adapter Fitting	-
10	R28782	3	O-Ring	-
11	T58739	1	Grommet	-
13	AT101576	1	HYDRAULIC HOSE - FABRICATE	9/16" X 445 MM (17-1/2") X 1/4"
15	AT150239	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT101770)
16	AT150240	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT101771)
17	H77698	1	Tie Band	(SUB FOR T44946)
19	38H1173	1	Adapter Fitting	-
20	R26448	1	O-Ring	-
21	TY22462	3	Clamp	(SUB FOR AR48236)
21	TY22462	4	Clamp	(SUB FOR AR48236)
22	AT106629	1	OIL LINE	-
23	AT101592	1	HYDRAULIC HOSE - FABRICATE	13/16" X 500 MM (19-3/4") X 13/16"
24	R44302	1	Tie Band	-
25	R29936	1	O-Ring	-
26	38H1176	1	Adapter Fitting	-
27	-	1	Part 31	(A) (SUB AT172139) (SUB FOR AT101768 AND AT124351)
28	38H1161	1	Adapter Fitting	-
29	38H1161	1	Adapter Fitting	-
30	T77857	1	O-Ring	-
31	T77613	2	O-Ring	-
32	19M7513	1	Cap Screw	(A) M8 X 30
33	19M7922	1	Cap Screw	(A) M8 X 40
34	19H2359	1	Cap Screw	(A)
35	24M7238	4	Washer	(A) 8.700 X 17 X 2 MM
36	T24958	2	Clip	(A)
37	28H3381	2	Spacer	(A)
38	R72659	2	Clamp	(A)
39	14M7273	2	Nut	(A) M8
40	T18407	1	WASHER	(A)
41	A20682	2	STRAP	(A)
42	28H1981	1	Bushing	(A)
43	T152697	2	CLAMP	(A)
44	T438T	1	HOSE	(A)
12A	38H1024	1	Tee Fitting	-
12B	38H1030	1	Tee Fitting	-
14A	38H1416	1	Fitting	-
14B	38H1415	1	Fitting	-
18A	-	1	Part 20	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
18B	-	1	Part 21	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
