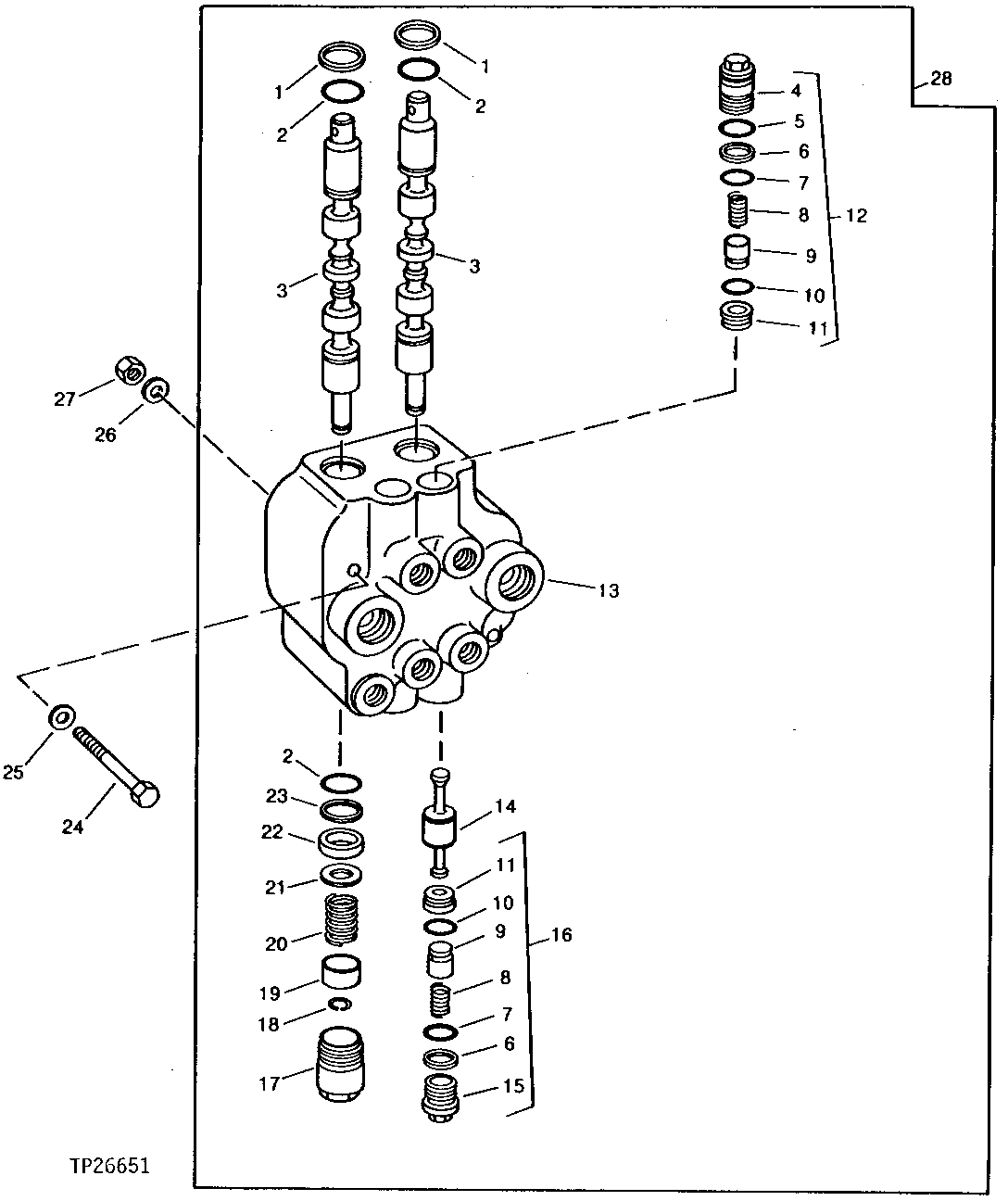

STABILIZER VALVE (EATON) (SERIAL NO. 760496- ) [03D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T127265	2	Seal	(A)
2	T127268	4	O-Ring	(A)
3	-	2	Part 3	(SUB AT190330)
4	-	2	Part 4	(SUB AT190334)
5	R116031	2	O-Ring	(A) (SUB FOR U15192, THIS APPLICATION)
6	T154187	4	Back-Up Ring	(A) (SUB FOR T127258, THIS APPLICATION)
7	R72328	4	O-Ring	(A) (SUB FOR U46731, THIS APPLICATION) (SUB FOR T127269)
8	-	4	Part 8	(SUB AT190333 OR AT190334)
9	-	4	Part 9	(SUB AT190333 OR AT190334)
10	R56464	4	O-Ring	(A) (SUB FOR 32246, THIS APPLICATION)
11	-	4	Part 11	(SUB AT190333 OR AT190334)
12	AT190334	2	Stabilizer Kit	(SUB FOR AT135769)
13	-	1	Part 13	(SUB AT190330)
14	T127257	2	Plunger	-
15	-	2	Part 15	(SUB AT135768)
16	AT190333	2	Stabilizer Kit	(SUB FOR AT135768) (INSIDE)
17	AT135767	2	Cap	-
18	T127263	2	Snap Ring	(A)
19	T127261	2	Retainer	-
20	MG272321	2	Spring	-
21	T127264	2	Washer	-
22	T127260	2	Spacer	(BETWEEN VALVE AND PLATE)
23	R73530	2	Back-Up Ring	(A)
24	19M7325	2	Cap Screw	M8 X 80
25	24H1292	2	Washer	11/32" X 3/4" X 0.120"
26	24H1136	2	Washer	11/32" X 11/16" X 0.065"
27	14M7298	2	Flange Nut	M8
28	AT190330	1	Spool Valve	(SUB FOR AT114673, AT149981, AT178272, AT186400 AND AT188549) (ALSO ORDER (2) M137181)
..	AT190741	1	Seal Kit	INCLUDES ALL (A) PARTS

STABILIZER VALVE (EATON) (SERIAL NO. 760496- ) [03D09]
