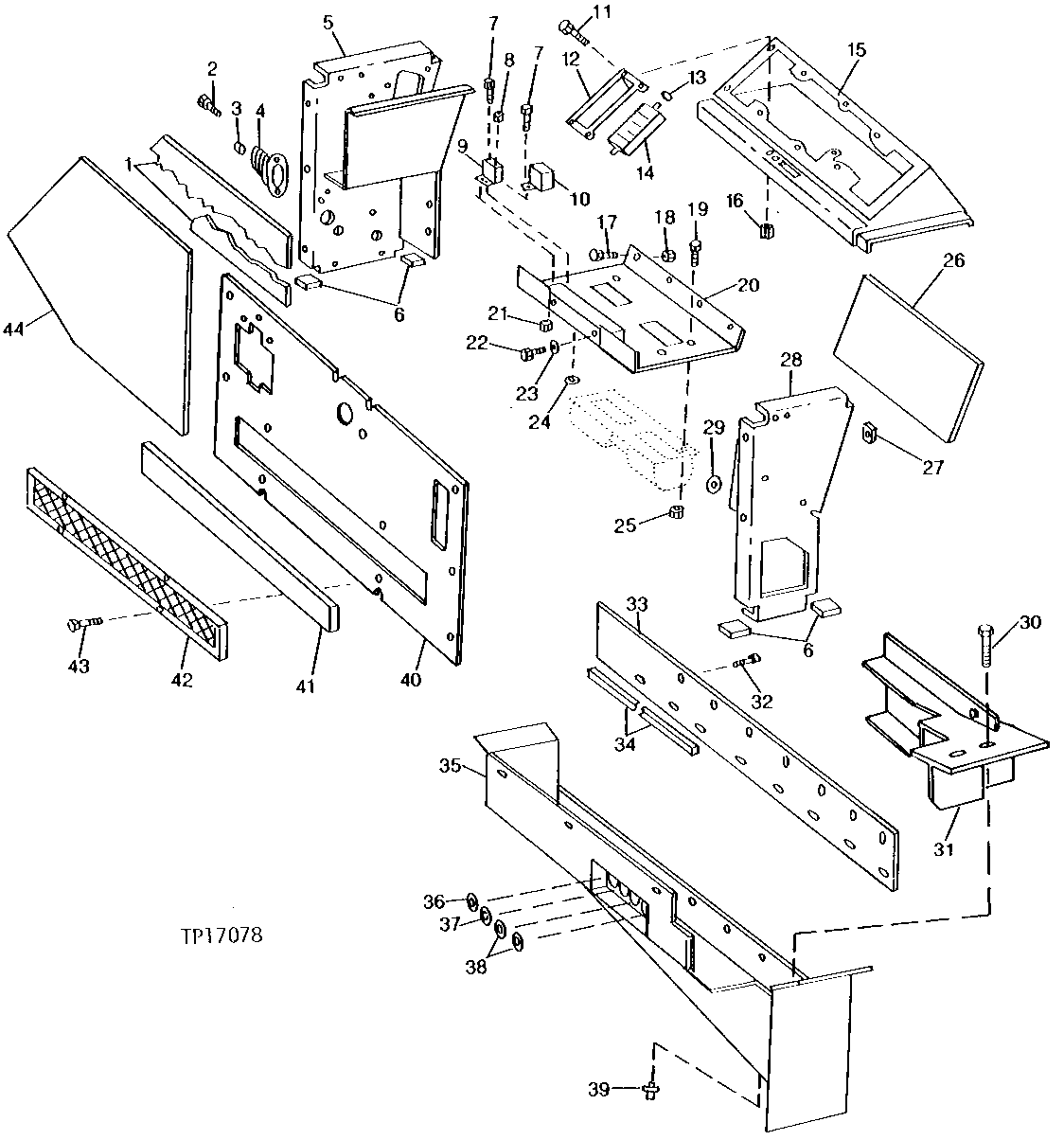

SIDE CONSOLE (DELUXE HEATER, AIR CONDITIONER AND PRESSURIZER) [02G11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T79847	1	PAD	-
2	37H49	2	Screw	-
3	T79839	1	GROMMET	-
4	AT79957	1	BOOT	-
5	AT101508	1	PARTITION	-
5	AT114468	1	PARTITION	-
6	-	1	Part 7	(MAKE FROM T66418 BULK MATERIAL, CUT TO LENGTH)
7	19H3370	2	Cap Screw	0.190" X 5/8"
8	14H631	2	Nut	0.190"
8	12H295	2	Lock Washer	0.190"
9	AR28403	1	CIRCUIT BREAKER	-
10	AT75769	1	Relay	-
11	21H1303	4	Screw	1/4" X 3/4"
12	T79845	2	PANEL	-
13	R2579R	4	GROMMET	-
14	AT65638	2	LOUVER	-
15	T79205	1	HOUSING	-
16	BP13712	4	Nut	-
17	19M7865	5	Screw	M8 X 16
18	14M7298	5	Flange Nut	M8
19	19H1948	4	Cap Screw	1/4" X 3/4"
20	AT101509	1	SUPPORT	-
21	U45916	2	Lock Nut	-
22	T79831	2	SCREW	-
23	24H1821	2	Washer	9/32" X 47/64" X 1/16"
24	R27180	1	Grommet	-
25	M40333	4	Lock Nut	-
26	T79841	1	FOAM PAD	-
27	T79836	3	RETAINER	-
28	AT101507	1	PARTITION	-
28	AT106705	1	PARTITION	-
29	R27180	1	Grommet	-
30	19M7774	2	Screw	M6 X 12
31	AT101512	1	COVER	-
32	19M7774	8	Screw	M6 X 12
33	T79840	1	COVER	-
34	-	1	Part 37	(MAKE FROM T70307 BULK MATERIAL, CUT TO LENGTH)
35	AT101513	1	PAN	-
36	-	1	Part 39	( T60418 NO LONGER AVAILABLE FOR SERVICE)
37	H31207	1	GROMMET	-
38	U16949	2	Grommet	-
39	T63009	1	CHECK VALVE	(SUB FOR T59108)
40	AT101241	1	PANEL	-
41	T79837	1	FILTER	-
42	AT79956	1	COVER	-
43	T79838	4	WING SCREW	-
44	T79204	1	PANEL	-
..	-	1	Part 48	DELUXE HEATER WITH PRESSURIZER, COMPLETE ( AT101648 NO LONGER AVAILABLE)
