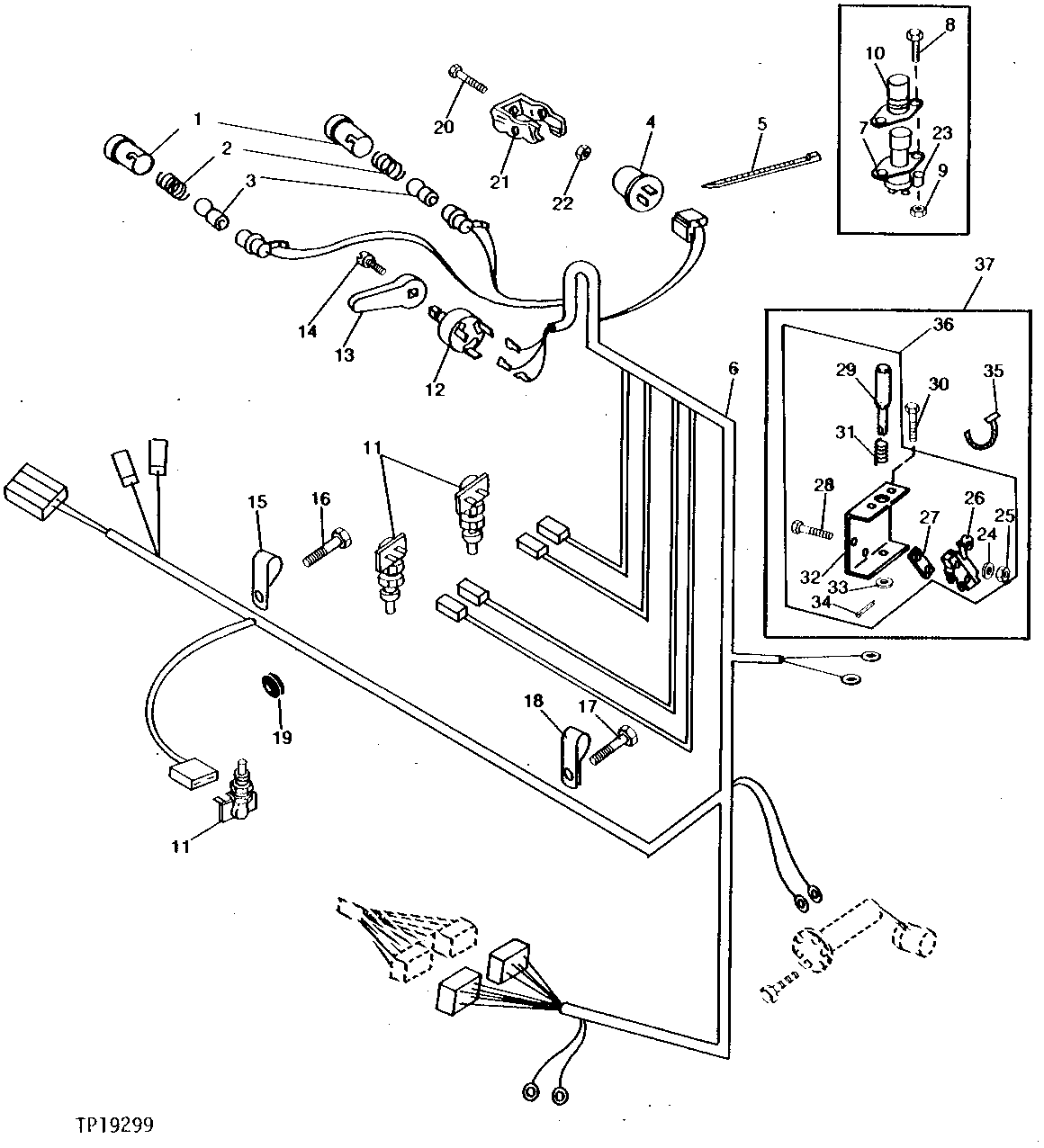

PLATFORM WIRING HARNESS (SERIAL NO. -748716) [02B23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT38113	2	LENS	TURN SIGNAL
2	R30378	2	Spring	-
3	R56409	2	BULB	-
4	AU41465	1	Flasher	TURN SIGNAL
5	R44302	1	Tie Band	-
6	AT107664	1	WIRING HARNESS	(SUB FOR AT100079)
7	AT101975	1	Switch	CLUTCH DISCONNECT, (SUB AT107966)
8	19M7862	2	Screw	M6 X 20
9	14M7303	2	Flange Nut	M6
10	T101077	1	COVER	-
11	AH78765	3	SWITCH	BRAKE LIGHT AND PARK BRAKE, (SUB FOR AT42011)
12	AT60637	1	SWITCH	TURN SIGNAL
13	R56026	1	Knob	-
14	21H1372	1	Screw	1/8" X 3/8"
15	T75276	3	Clamp	-
16	19M7008	1	Cap Screw	M8 X 10
17	19M7938	3	Cap Screw	M10 X 20
18	AH89557	2	Clip	-
19	T65643	1	Grommet	-
20	T77832	1	Self-Locking Screw	-
21	T29417	1	BRACKET	-
22	14M7303	1	Flange Nut	M6
23	28H1611	2	Washer	0.269" X 0.405" X 5/16"
24	12M7084	2	Lock Washer	4.300 MM
25	14H1026	2	Nut	0.138"
26	AT182389	1	SWITCH	(SUB FOR AT69969, THIS APPLICATION) (ALSO ORDER R78053, (2) R78061, (2) R78063 AND (2) 21H1290) (SUB FOR AT46755)
27	T112976	1	Strap	-
28	21H1472	2	Screw	0.138" X 1-1/2"
29	T112975	1	Plunger	-
30	19M7775	2	Screw	M6 X 16
31	R28914	1	SPRING	-
32	-	1	Part 32	( AT107841 USE IF AVAILABLE)
33	24M7232	1	Washer	8.700 X 17 X 2 MM
34	11M7082	1	Cotter Pin	2.500 X 25 MM
35	H77698	1	Tie Band	(SUB FOR T44946)
36	-	1	Part 36	( AT86128, NO LONGER AVAILABLE) (SUB AT107966)
37	AT107966	1	KIT	-

PLATFORM WIRING HARNESS (SERIAL NO. -748716) [02B23]
