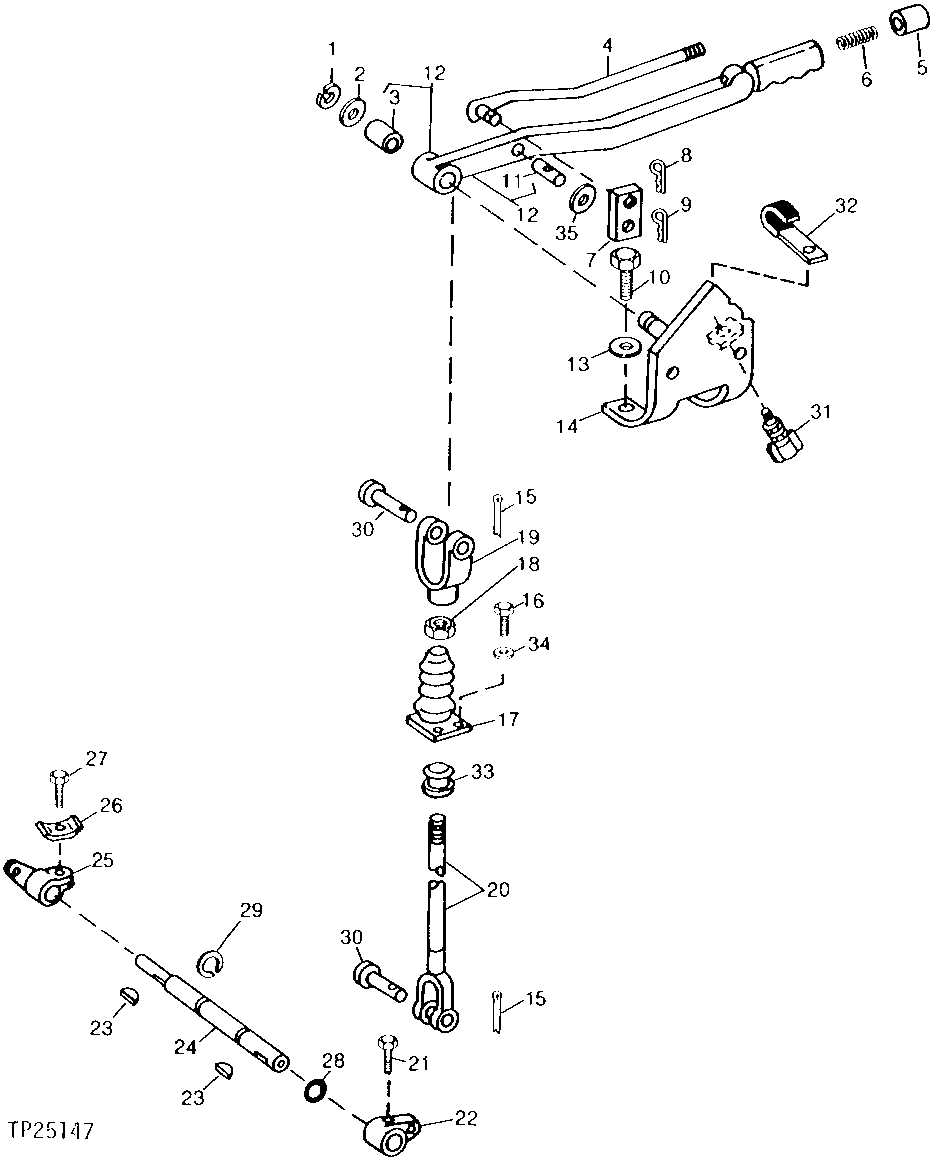

PARK BRAKE LEVER AND LINKAGE [01J17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A602R	1	Snap Ring	-
2	24H1451	1	Washer	1-1/32" X 1-3/4" X 0.060"
3	T21998	1	BUSHING	-
4	T68288	1	ROD	-
5	L62606	1	Knob	(SUB FOR T21595)
6	T21576	1	SPRING	-
7	T21587	1	PAWL	-
8	11M7077	1	Cotter Pin	1.600 X 25 MM
9	11M7059	1	Cotter Pin	3.200 X 20 MM
10	19M7403	2	Cap Screw	M12 X 35
11	T21593	1	PIN	(PRESSED IN)
12	AT65264	1	LEVER	(MARKED T68287)
13	24M7047	2	Washer	13 X 24 X 2.500 MM
14	AT73838	1	SUPPORT	-
15	11M7081	2	Cotter Pin	2.500 X 20 MM
16	T77832	2	Self-Locking Screw	-
17	AT66911	1	Boot	-
18	14H732	1	Nut	3/8"
18	14H846	1	NUT	3/8"
19	M80373	1	Yoke	-
19	C284R	1	Yoke	-
20	AT100536	1	YOKE	(SUB AT124286) (ALSO ORDER M80373 AND 14H846)
20	AT114228	1	YOKE	(SUB AT124286) (ALSO ORDER M80373 AND 14H846)
20	AT124286	1	YOKE	-
21	19M7407	1	Cap Screw	M8 X 25
22	T67041	1	LEVER	-
22	T113576	1	LEVER	-
23	26H77	2	Shaft Key	3/16" X 3/4"
24	T106086	1	SHAFT	(SUB FOR T67040, THIS APPLICATION)
25	L32144	1	Lever	-
26	R1888R	1	STRAP	-
27	19H3483	1	Cap Screw	3/8" X 1-1/8"
28	T122075	1	O-Ring	(SUB FOR U45860)
29	M2353T	1	Snap Ring	-
30	C1067R	2	PIN FASTENER	-
31	AH78765	1	SWITCH	(SUB FOR AT42011)
32	T13744	1	Clamp	-
33	T70083	1	Grommet	-
34	24H1286	2	Washer	9/32" X 1/2" X 1/16"
35	24H1305	1	Washer	13/32" X 13/16" X 0.065"

PARK BRAKE LEVER AND LINKAGE [01J17]

Нет текстового описания
