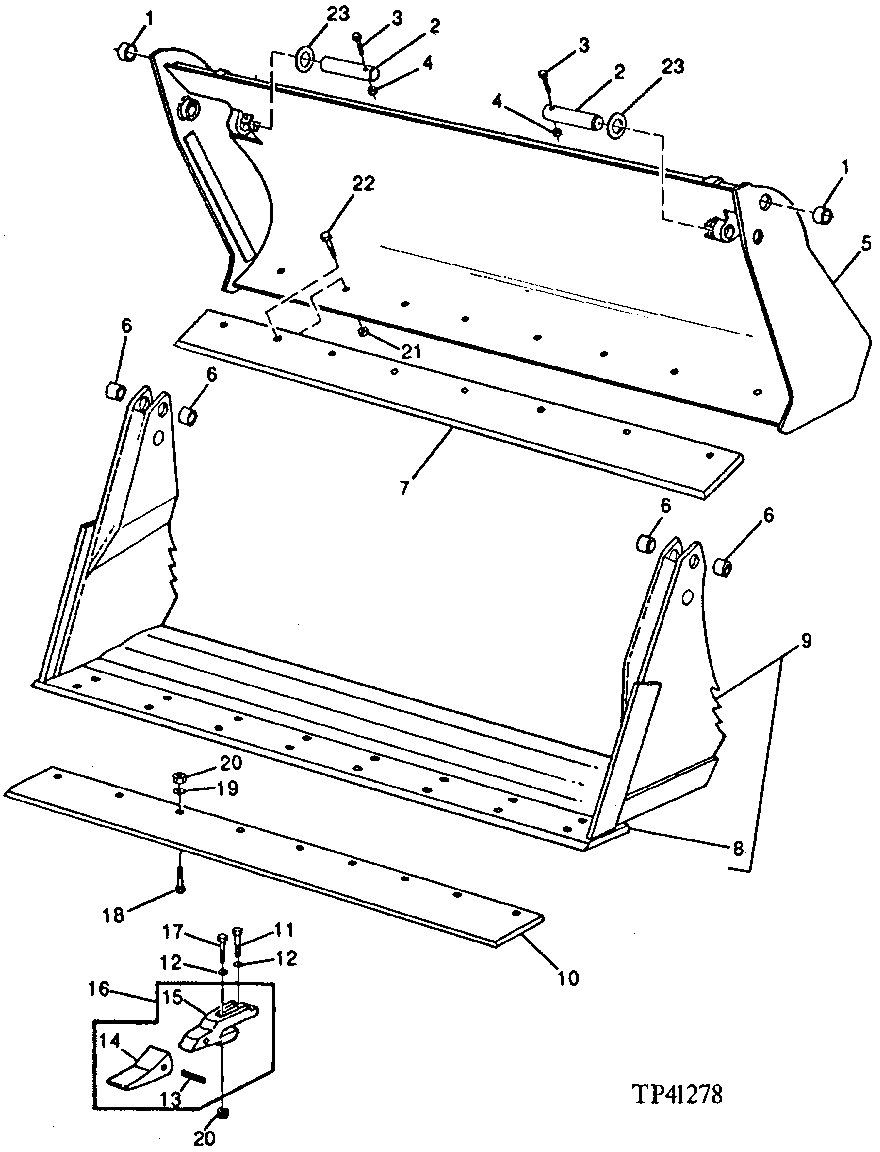

MULTI-PURPOSE BUCKET (GANNON) 2337 MM (92") (SERIAL NO. 768252- ) [02J05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T128534	2	Bushing	-
2	T167059	2	Pin	(SUB FOR T128535)
3	19H2106	2	Cap Screw	7/16" X 2-3/4"
4	K40006	2	Lock Nut	-
5	-	1	Part 5	( AT150827 NO LONGER AVAILABLE) (SUB FOR AT142602)
6	T128533	4	Bushing	-
7	T143802	1	Cutting Edge	-
7	T126774	1	Dura-Max Cutting Edge	-
8	T128538	1	Cutting Edge	-
8	T143679	1	Dura-Max Cutting Edge	-
9	-	1	Part 11	( AT142603 NO LONGER AVAILABLE)
10	T126774	1	Dura-Max Cutting Edge	(AUXILLARY) (REQUIRES (8) U44915, (8) 09H1757 AND (8) 24M7241)
11	19H2599	1	Cap Screw	HS, SAE 8, 5/8" X 2-1/2"
12	24H1367	1	Washer	21/32" X 1-1/4" X 1/4"
13	T40910	1	PIN	-
14	T230SP	1	Tooth	(SUB FOR T54317)
15	T128889	1	Shank	-
16	-	8	Part 18	( AT142895 NO LONGER AVAILABLE) (SUB T40910, T230SP AND T12889) (ALSO ORDER 19H2599, 19H2641, (3) 24H1367 AND (2) K40015)
17	19H2641	1	Cap Screw	HS, SAE 8, 5/8" X 3-1/4"
18	09H1757	1	Bolt	HS, SAE 8, 5/8" X 2-3/4"
19	24M7241	1	Washer	17 X 34 X 4 MM
20	U44915	1	Lock Nut	-
21	K40015	8	Lock Nut	-
22	10H1039	8	Bolt	5/8" X 1-3/4"
23	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"

MULTI-PURPOSE BUCKET (GANNON) 2337 MM (92") (SERIAL NO. 768252- ) [02J05]
