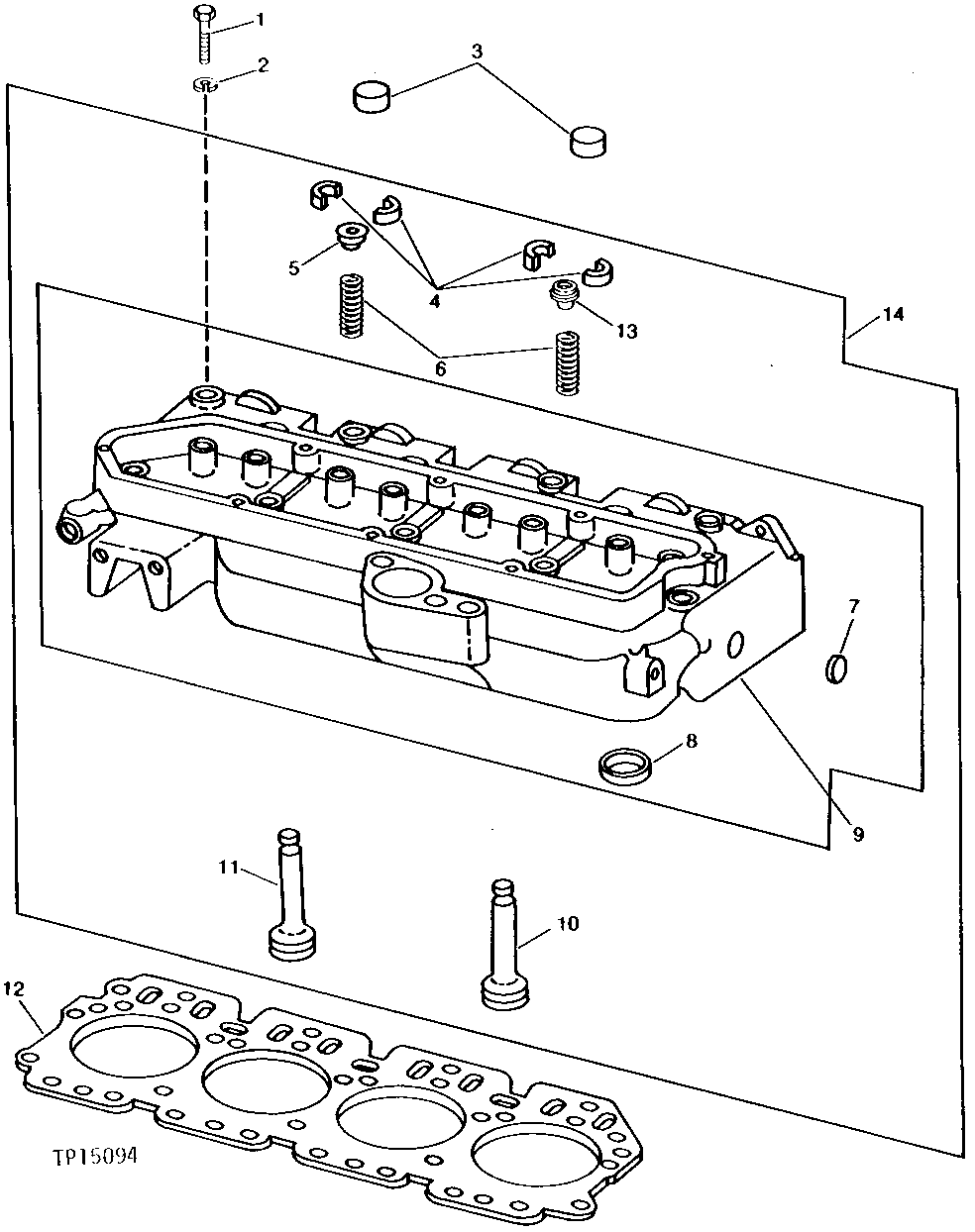

CYLINDER HEAD, HEAD GASKET AND VALVES (ENGINE SERIAL NO. -299999) [01F16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R85363	18	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/4"
2	T20168	18	Washer	(DO NOT USE WITH R85363)
3	T20129	8	Cap	-
4	T20077	16	Retainer	-
5	RE11410	8	Rotator	(SUB FOR R41412) (EXHAUST AND INTAKE) (WITHOUT TURBOCHARGER)
5	RE11410	4	Rotator	(SUB FOR R41412) (INTAKE) (WITH TURBOCHARGER)
6	R26125	8	Spring	-
7	A3910R	1	PLUG	-
7	CD16284	1	Plug	-
8	R51734	4	VALVE SEAT INSERT	EXHAUST
9	AR62452	1	CYLINDER HEAD	(MARKED R54560)
10	R79624	4	EXHAUST VALVE	STANDARD
10	-	4	Part 15	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE
10	R79626	4	EXHAUST VALVE	0.38 MM (.015) OVERSIZE
10	R79625	4	EXHAUST VALVE	0.08 MM (.003") OVERSIZE
11	R79623	4	Intake Valve	STANDARD
11	R79628	4	INTAKE VALVE	0.08 MM (.003") OVERSIZE
11	R79629	4	INTAKE VALVE	0.38 MM (.015") OVERSIZE
11	-	4	Part 19	( R79630 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE
12	R91878	1	GASKET	(SUB FOR R80242)
13	RE11410	4	Rotator	(EXHAUST) (WITH TURBOCHARGER)
14	RE36342	1	CYLINDER HEAD	(MARKED R56790) (WITHOUT TURBOCHARGER)
14	RE36342	1	CYLINDER HEAD	(MARKED R54560) (WITH TURBOCHARGER)

CYLINDER HEAD, HEAD GASKET AND VALVES (ENGINE SERIAL NO. -299999) [01F16]
