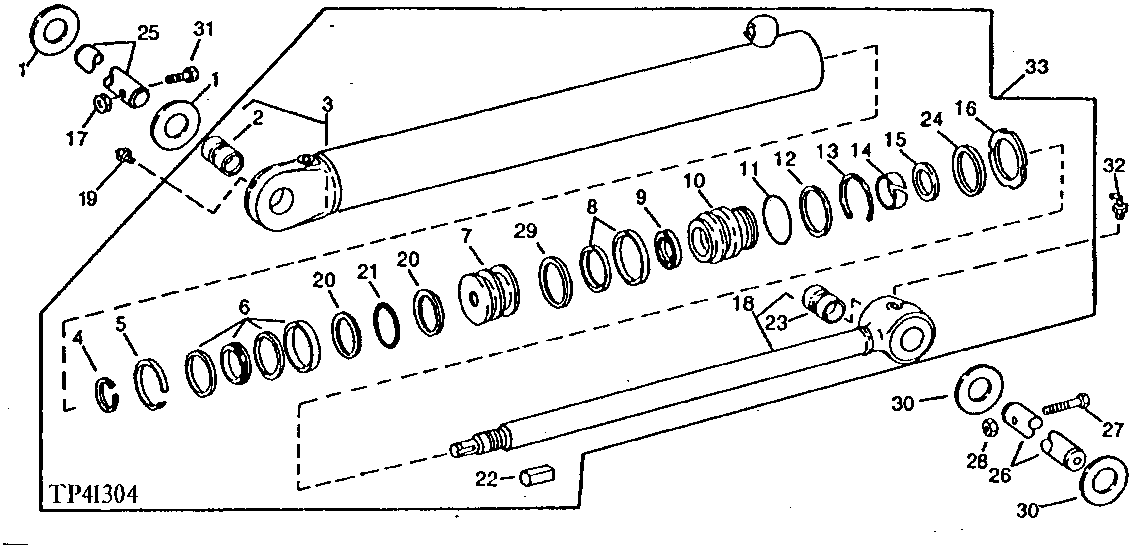

CROWD CYLINDER (SERIAL NO. -740538) [03D20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1589	1	Washer	2" X 3-3/16" X 0.036"
2	R81968	1	Bushing	-
3	RE22686	1	HYDRAULIC CYLINDER BARREL	-
4	R83142	1	SNAP RING	-
5	R81775	1	Wear Ring	-
6	RE20343	1	Seal	-
7	R83136	1	PISTON	-
8	RE20757	1	Seal	-
9	R81973	1	Seal	-
10	-	1	Part 10	( R81972 NO LONGER AVAILABLE) (SUB H157978) (ALSO ORDER AH210484)
11	R83577	1	O-Ring	(SUB FOR F950R, THIS APPLICATION)
12	R81862	1	Back-Up Ring	-
13	R81787	1	Snap Ring	-
14	R81975	1	Wear Ring	-
15	RE24536	1	Seal	-
16	R81793	1	Nut	-
17	14M7319	1	Lock Nut	M12
18	RE31543	1	ROD	-
18	RE22688	1	ROD	(SUB RE31543)
19	JD7759	1	Lubrication Fitting	1/8", STRAIGHT
20	R83144	2	BACK-UP RING	-
21	T11220	1	O-Ring	-
22	R83143	1	SHAFT KEY	-
23	R82077	1	Bushing	-
24	R91731	1	Ring	(DISASSEMBLY AID TOOL) (SUB FOR R84031)
25	T125935	1	PIN FASTENER	(SUB FOR T100175)
26	T126033	1	PIN FASTENER	(SUB FOR T81345) (USE WITH EXTENDIBLE DIPPERSTICK)
26	T125936	1	PIN FASTENER	(SUB FOR T101033)
27	19M7949	1	Cap Screw	M12 X 100
28	14M7319	1	Lock Nut	M12
29	R81796	1	Ring	SPLIT, BRAKE SEAL
30	24H1679	1	Washer	2-17/64" X 3-1/4" X 0.060"
31	19M7949	1	Cap Screw	M12 X 100
32	JD7799	1	Lubrication Fitting	1/8", 90°, (SUB FOR JD7759 AND JD7781, THIS APPLICATION)
33	RE21963	1	HYDRAULIC CYLINDER	(SUB RE31715)
33	RE31544	1	HYDRAULIC CYLINDER	(SUB RE31715)

CROWD CYLINDER (SERIAL NO. -740538) [03D20]
