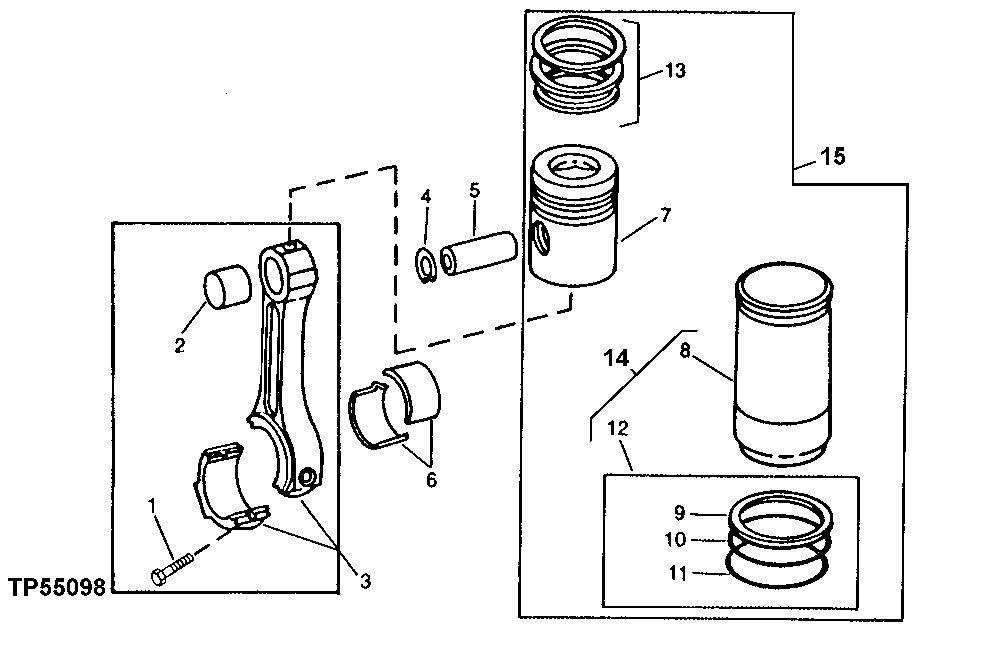

CONNECTING ROD, PISTON, RINGS AND LINER (WITHOUT TURBOCHARGER) [01E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R80033	8	Cap Screw	-
2	R55647	4	BUSHING	-
3	RE21076	4	Connecting Rod	(SUB SE500747) (MARKED R80034)
3	SE500747	4	Connecting Rod Reman	(REMANUFACTURED)
4	M41029	8	Snap Ring	-
5	R125754	4	Piston Pin	(SUB FOR R51731)
6	AT21128	4	BEARING	.76 MM (.030") UNDERSIZE (SET OF (2) T23572)
6	AT21126	4	BEARING	.51 MM (.020") UNDERSIZE (SET OF (2) T23570)
6	AT21124	4	BEARING	.25 MM (.010") UNDERSIZE (SET OF (2) T23568)
6	-	4	Part 8	( AT21122 NO LONGER AVAILABLE) .05 MM (.002") UNDERSIZE (SET OF (2) T23566)
6	AT21138	4	BEARING	STANDARD (SET OF (2) T20011)
7	-	4	Part 12	(USE IF AVAILABLE) (WHEN NO LONGER AVAILABLE, SUB RE30250)
8	-	4	Part 13	( R116281 IS NO LONGER AVAILABLE) (RE30250 PISTON LINER KIT) (SUB FOR R51726 OR R90059) (SUB RE500023 OR RE22678) (SUB (4) RE30250)
9	R26121	4	O-Ring	-
10	R48767	4	Packing	-
11	R55453	4	O-Ring	-
12	AR65507	4	O-Ring Kit	-
13	RE507852	4	Piston Ring Kit	(SUB FOR RE15674, RE48818 OR RE66820)
14	RE22678	4	Piston-Liner Kit	(SUB FOR RE500023) (MARKED R116281)
15	RE30250	4	Piston-Liner Kit	(SUB FOR RE24458) (MARKED RE19282)

CONNECTING ROD, PISTON, RINGS AND LINER (WITHOUT TURBOCHARGER) [01E23]
