Открытый узел

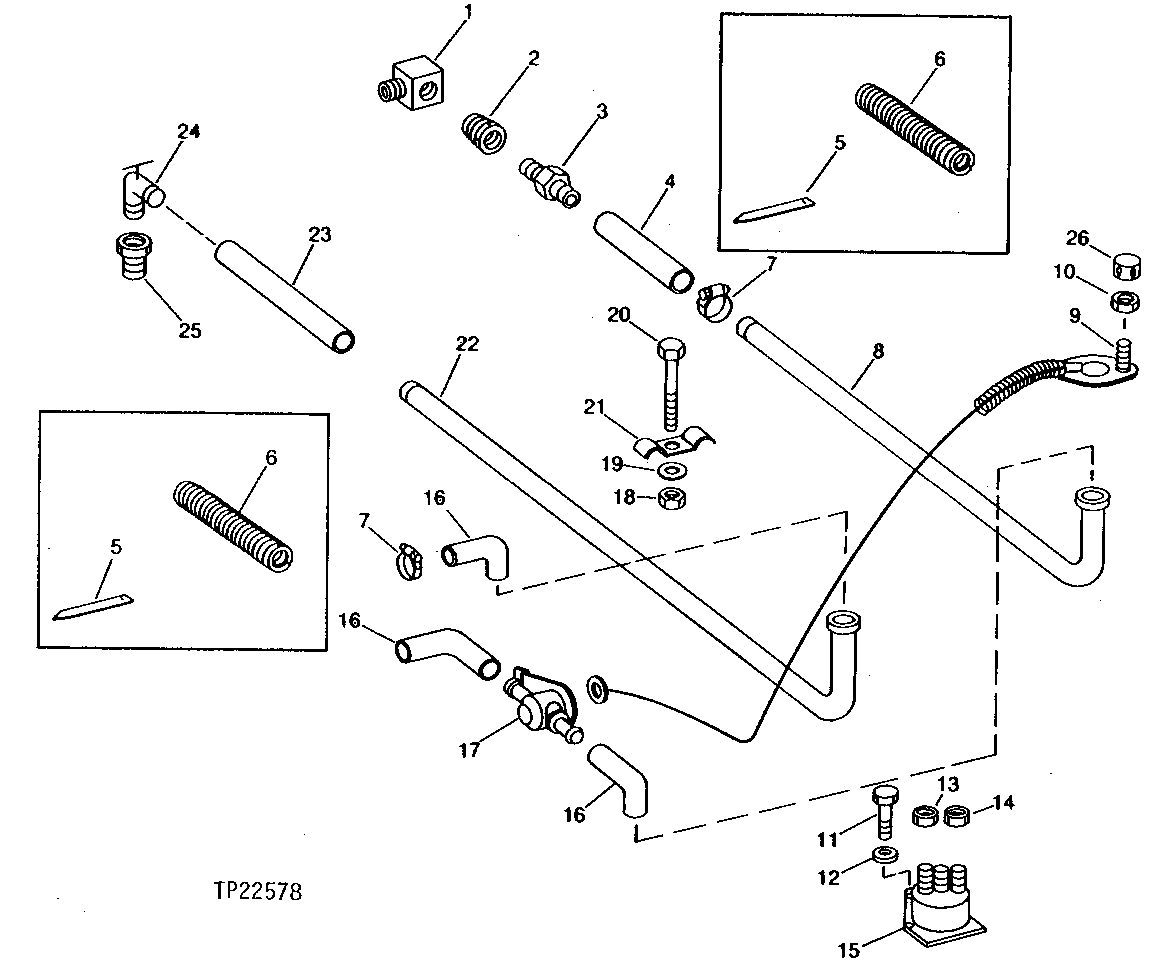

CAB STANDARD HEATER HOSES AND CONTROLS [02G07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T37041	1	ELBOW FITTING	-
2	15H590	1	Pipe Bushing	1/2"
3	R41985	1	Fitting	-
4	-	1	Part 4	(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)
5	R44302	1	Tie Band	-
6	T38970	1	SPRING	(CUT IN HALF)
7	AR21837	10	Clamp	-
8	T119179	1	TUBE	(SUB FOR T71139 AND T113214)
9	AT68274	1	CONTROL	-
10	E46066	1	Nut	-
11	19M7560	2	Cap Screw	M6 X 16
12	24M7088	2	Washer	6.600 X 12 X 1.600 MM
13	14H785	2	Nut	5/16"
13	R11151	2	Lock Nut	5/16"
14	14H631	1	Nut	0.190"
15	AR73144	1	Relay	ACCESSORY RELAY
15	12M7065	2	Lock Washer	8 MM
15	AR73144	1	Relay	-
15	-	1	Part 17	( AT142305 NO LONGER AVAILABLE) ACCESSORY RELAY, (SUB AR73144, (2) 14H785 AND (2) 12M7065)
16	T22942	2	HOSE	-
17	AT69645	1	HAND OPERATED VALVE	-
18	14M7298	1	Flange Nut	M8
19	24H1136	1	Washer	11/32" X 11/16" X 0.065"
20	19M7162	1	Cap Screw	M8 X 16
21	AH83846	1	Clamp	-
22	T122114	1	TUBE	(SUB FOR T71138, T113213 AND T119178)
23	-	1	Part 27	(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)
24	AT35831	1	Drain Valve	-
25	15H586	1	Adapter Fitting	3/8"
26	AL58295	1	Knob	(SUB FOR AR69370)

CAB STANDARD HEATER HOSES AND CONTROLS [02G07]

Нет текстового описания
