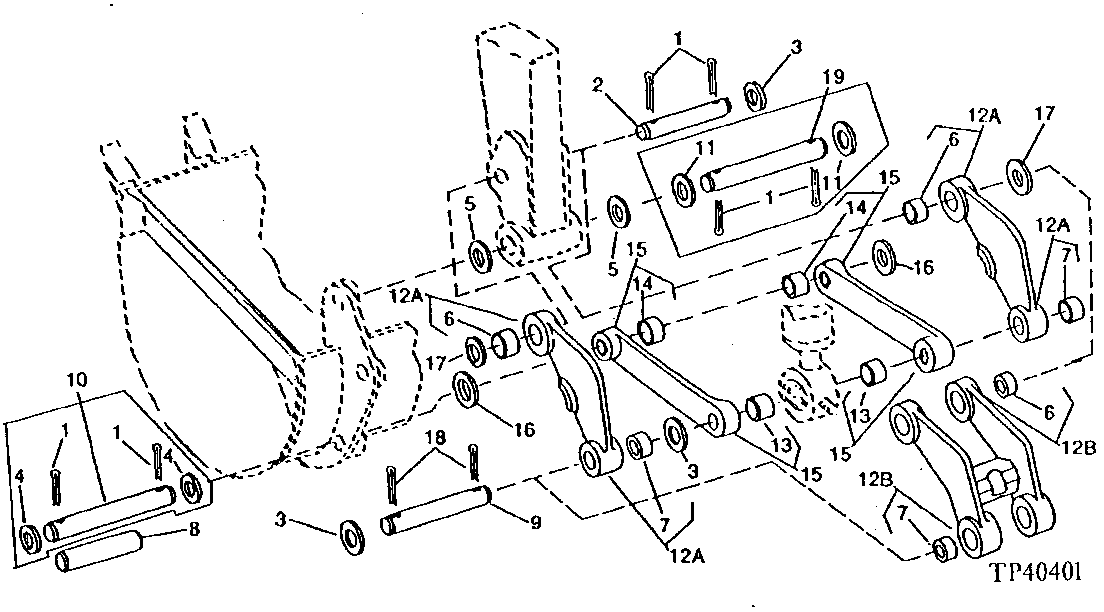

BUCKET LINKS AND PINS (SEE REPLACEMENT BUCKET LINKS AND PINS) [03C21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11H221	6	COTTER PIN	3/8" X 2-1/2"
2	T125929	1	Pin Fastener	(SUB FOR T101173)
3	T161036	1	Washer	(SUB FOR T69222 OR (AR) T125955) (SUB FOR T148178)
4	U11649	1	WASHER	-
5	24H1576	1	Washer	1-13/16" X 2-15/16" X 0.075", (SUB FOR H89524, THIS APPLICATION)
6	R72579	2	BUSHING	-
7	T101084	2	BUSHING	-
8	T140362	1	Spacer	(SUB FOR T101167, THIS APPLICATION)
9	T125939	1	PIN FASTENER	(SUB FOR T100828)
10	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931)
10	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
11	U11650	1	WASHER	-
13	T101084	2	BUSHING	-
14	T101148	2	BUSHING	-
15	AT146005	2	LINK	(SUB FOR AT101587)
16	24H1536	1	Washer	1-17/32" X 2-1/4" X 0.060", (SUB FOR A4705R, THIS APPLICATION)
17	24H1558	1	Washer	1-41/64" X 2-3/8" X 0.075", (SUB FOR T21903, THIS APPLICATION)
18	11H227	2	Cotter Pin	3/8" X 3"
19	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926)
19	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
12A	AT106538	2	LINK	-
12B	AT158567	1	LINK	(SUB FOR AT107527)

BUCKET LINKS AND PINS (SEE REPLACEMENT BUCKET LINKS AND PINS) [03C21]
