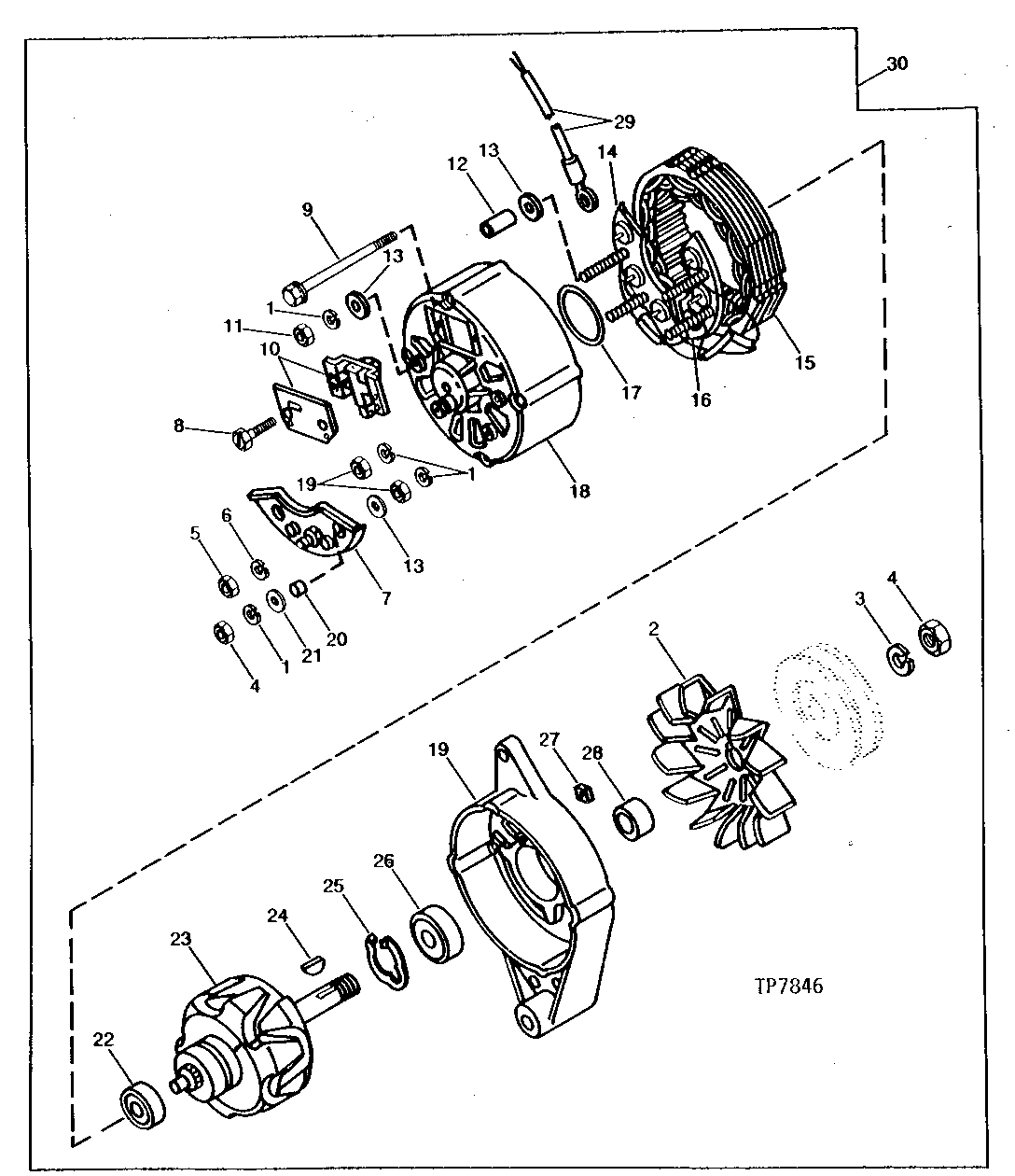

ALTERNATOR (51-AMP) (SERIAL NO. -736175) [02B09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H295	7	Lock Washer	0.190"
2	R15027	1	FAN	-
3	12H294	1	Lock Washer	5/8"
4	14H866	1	Nut	5/8"
5	14H785	1	Nut	5/16"
6	12H297	1	Lock Washer	1/4"
7	R39800	1	DIODE	DUAL
7	AH117790	1	DIODE	TRIO, (USE WITH AT100789)
8	37H47	2	SCREW	NO. 8 X 1/2"
9	R15045	4	SCREW	-
10	-	1	Part 12	(BRUSH HOLDER) (USE WITH AT100789) ( T118967 USE IF AVAILABLE)
10	AT27128	1	HOLDER	AND COVER
11	14H778	8	Nut	0.190"
12	R15035	2	SLEEVE	INSULATOR
13	R15036	4	WASHER	-
14	T81168	1	DIODE	RECTIFYING, POSITIVE
14	-	1	Part 17	(AT118599 - USE IF AVAILABLE) POSITIVE, (USE WITH AT100789)
15	R39802	1	STATOR	-
16	R15024	1	DIODE	RECTIFYING, NEGATIVE
16	AM117795	1	KIT	NEGATIVE, (USE WITH AT100789) (SUB FOR AT118598 OR MG277935)
17	R15030	1	O-RING	-
18	-	1	Part 23	(USE WITH AT100789) ( T118933 USE IF AVAILABLE)
18	-	1	Part 22	( T81167 USE IF AVAILABLE)
19	R15033	1	HOUSING	-
19	W36266	1	HOUSING	(USE WITH AT100789)
20	R39803	1	WASHER	-
21	R39804	2	WASHER	-
22	AT23189	1	Ball Bearing	-
23	TY26017	1	ALTERNATOR	(SUB FOR R39801)
23	SE501357	1	Alternator Reman	(REMANUFACTURED FOR TY26017)
24	26H9	1	SHAFT KEY	1/8" X 5/8"
25	R15029	1	RETAINER	-
26	JD9449	1	Ball Bearing	-
27	T23610	4	NUT	-
28	-	1	Part 35	( T25343 USE IF AVAILABLE)
28	-	1	Part 36	(USE WITH AT100789) ( T118966 USE IF AVAILABLE)
29	-	1	Part 37	( AT74603 USE IF AVAILABLE)
29	-	1	Part 38	(AT118597 - NO LONGER AVAILABLE) (USE WITH AT100789)
30	AT74602	1	ALTERNATOR	(51-AMP) (LESS PULLEY AND REGULATOR) (SUB FOR AT100789) (SUB TY6678, AT107970, 19M7867 AND AU42892, THIS APPLICATION)
30	SE501368	1	Alternator Reman	(REMANUFACTURED FOR TY6678)

ALTERNATOR (51-AMP) (SERIAL NO. -736175) [02B09]
