Открытый узел

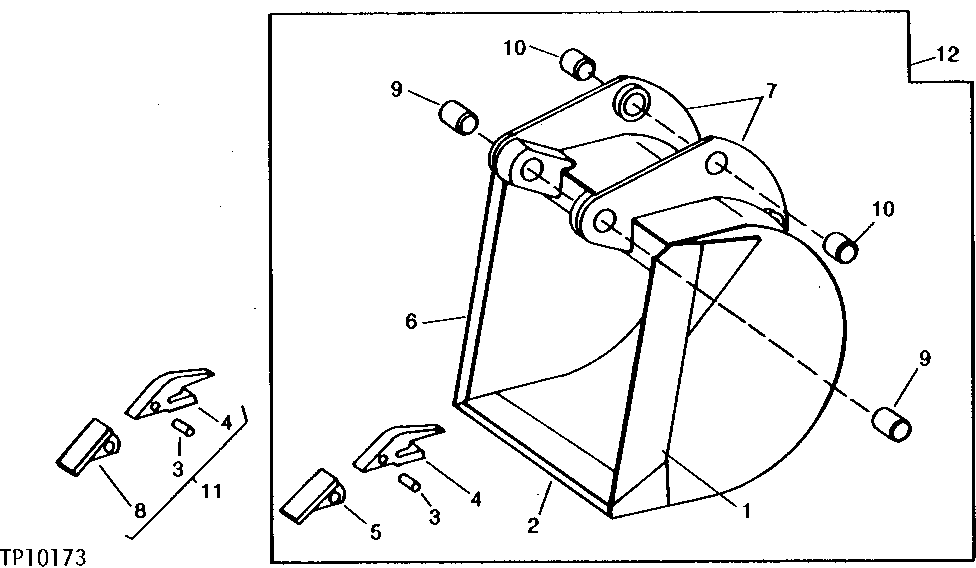

REPLACEMENT HEAVY-DUTY BUCKETS (WITH CURVED PIVOT PLATES) (9500 BACKHOE) [03B08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38875	1	CUTTING EDGE	SIDE, R.H. 16 MM X 127 MM X 876 MM (5/8" X 5" X 34-1/2")
2	T38856	1	CUTTING EDGE	FRONT, 22 MM X 152 MM X 425 MM (7/8" X 6" X 16-3/4") (FOR 457 MM (18") BUCKET)
2	T38862	1	CUTTING EDGE	FRONT, 22 MM X 152 MM X 578 MM (7/8" X 6" X 22-3/4") (FOR 610 MM (24") BUCKET)
2	T38865	1	CUTTING EDGE	FRONT, 22 MM X 152 MM X 730 MM (7/8" X 6" X 28-3/4") (FOR 762 MM (30") BUCKET)
3	T40910	1	PIN	FLEX, (4 USED WITH 457 MM (18") AND 610 MM (24"), 5 USED WITH 762 MM (30") BUCKET)
4	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750) 24 MM (15/16") (4 USED WITH 457 MM (18") AND 610 MM (24"), 5 USED WITH 762 MM (30") BUCKET)
5	T54317	1	POINT	(4 USED WITH 457 MM (18") AND 610 MM (24"), 5 USED WITH 762 MM (30") BUCKET)
6	T38876	1	CUTTING EDGE	SIDE, L.H. 16 MM X 127 X 876 MM (5/8" X 5" X 34-1/2")
7	-	1	Part 9	(SUB AT76972, AT76971 OR AT76969)
8	U42751	1	POINT	(4 USED WITH 457 MM (18") AND 610 MM (24"), 5 USED WITH 762 MM (30") BUCKET)
8	T56524	1	POINT	(4 USED WITH 457 MM (18") AND 610 MM (24"), 5 USED WITH 762 MM (30") BUCKET)
9	T105987	2	BUSHING	(SUB FOR U42736)
10	T105988	4	Bushing	(SUB FOR U42739)
11	-	1	Part 14	24 MM (15/16") (4 USED WITH 457 MM ()18") AND 610 MM (24"), 5 USED WITH 762 MM (30") BUCKET) (USE WITH 22 MM (7/8") CUTTING EDGE) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
12	AT76972	1	BACKHOE BUCKET	457 MM (18") (SUB FOR AT37726)
12	AT37727	1	BACKHOE BUCKET	610 MM (24") (SUB FOR AT37727)
12	AT37728	1	BACKHOE BUCKET	762 MM (30") (SUB FOR AT37728)

REPLACEMENT HEAVY-DUTY BUCKETS (WITH CURVED PIVOT PLATES) (9500 BACKHOE) [03B08]

Нет текстового описания
