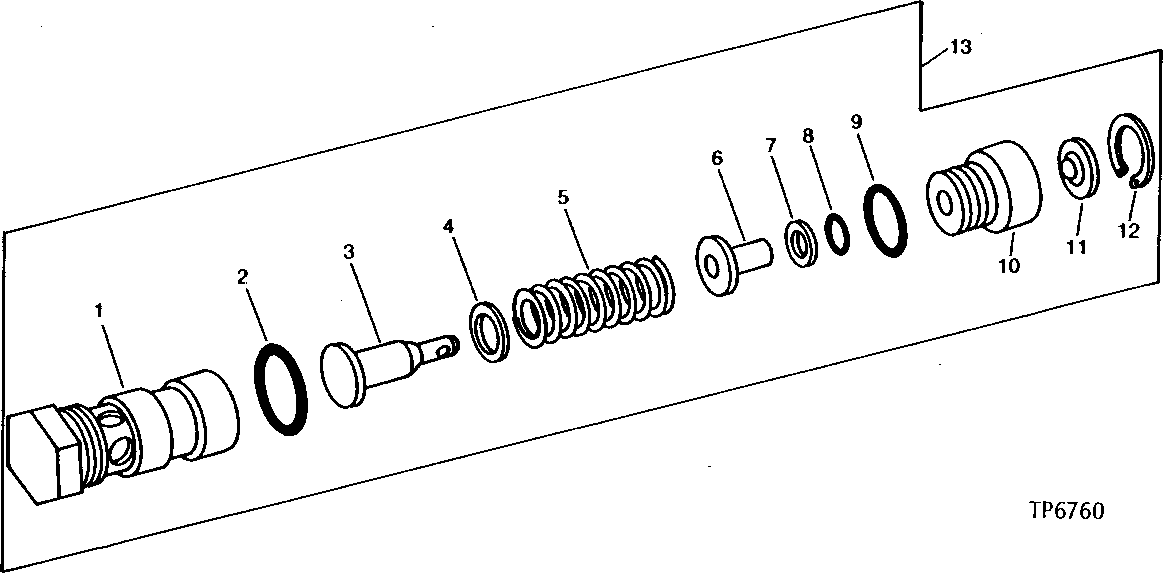

RELIEF VALVE FOR LOADER CONTROL VALVE [02F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AU40752, AU40528 OR AU40751)
2	32240	1	O-Ring	-
3	-	1	Part 3	(SUB AU40752, AU40528 OR AU40751)
4	-	1	Part 4	(SUB AU40752, AU40528 OR AU40751)
4	-	1	Part 5	(SUB AU40752, AU40528 OR AU40751)
4	-	1	Part 6	(SUB AU40752, AU40528 OR AU40751)
4	-	1	Part 7	(SUB AU40752, AU40528 OR AU40751) (SUB FOR R43549, THIS APPLICATION)
5	-	1	Part 8	172 BAR (2 500 PSI) (FOR 190 BAR (2750 PSI), SUB AU40751 OR AU40752) (SUB FOR U40738, THIS APPLICATION)
5	-	1	Part 9	103 BAR (1500 PSI) (SUB AU40528) (SUB FOR U41045, THIS APPLICATION)
6	-	1	Part 10	(SUB AU40752, AU40528 OR AU40751)
7	T68668	1	WASHER	(SUB FOR H61397, THIS APPLICATION)
8	R87627	1	O-RING	(SUB FOR R27976, THIS APPLICATION)
9	U40745	1	O-Ring	-
10	-	1	Part 14	(SUB AU40752, AU40528 OR AU40751)
11	-	1	Part 15	(SUB AU40752, AU40528 OR AU40751)
12	-	1	Part 16	(SUB AU40752, AU40528 OR AU40751) (SUB. FOR R31415, THIS APPLICATION)
13	AU40528	1	PRESSURE RELIEF VALVE	103 BAR (1500 PSI) (USED WITHOUT DROTT 4-IN-1 BUCKET)
13	AU40528	1	PRESSURE RELIEF VALVE	103 BAR (1500 PSI)
13	AU40751	1	PRESSURE RELIEF VALVE	172 BAR (2500 PSI) (USED WITHOUT DROTT 4-IN-1 BUCKET)
13	AU40752	1	PRESSURE RELIEF VALVE	190 BAR (2750 PSI) (USED WITH DROTT 4-IN-1 BUCKET)
13	AU40752	1	PRESSURE RELIEF VALVE	190 BAR (2750 PSI)

RELIEF VALVE FOR LOADER CONTROL VALVE [02F24]
