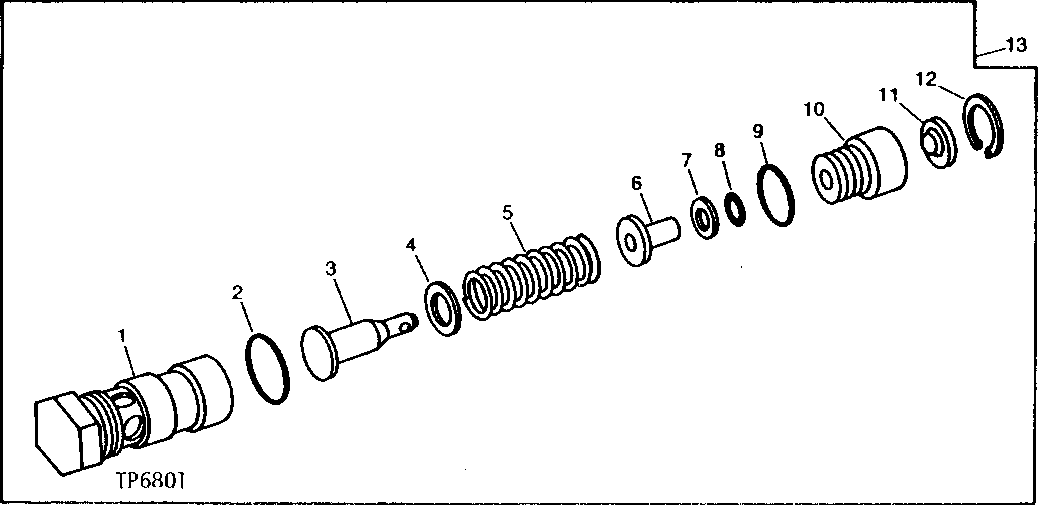

RELIEF VALVE CARTRIDGES (9500 BACKHOE) [03C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AU40527, AU40529, AU40815 OR AT35910)
2	32240	1	O-Ring	-
3	-	1	Part 3	(SUB AU40527, AU40529, AU40815 OR AT35910)
4	-	1	Part 4	(SUB AU40527, AU40529, AU40815 OR AT35910) (AS REQUIRED)
4	-	1	Part 5	(SUB AU40527, AU40529, AU40815 OR AT35910) (AS REQUIRED)
4	-	1	Part 6	(SUB AU40527, AU40529, AU40815 OR AT35910) (AS REQUIRED)
4	-	1	Part 7	(SUB AU40527, AU40529, AU40815 OR AT35910) (SUB FOR R43549, THIS APPLICATION)
5	-	1	Part 8	(SUB AU40527, AU40529 AND AT35910) (SUB FOR U40738, THIS APPLICATION) (FOR 16 376 KPA (164 BAR) (2375 PSI)) (FOR 20 685 KPA (207 BAR) (3000 PSI)) (FOR (276 BAR) (4000 PSI))
5	-	1	Part 9	(SUB AU40815) (SUB FOR U41045, THIS APPLICATION) 11 204 KPA (112 BAR) (1625 PSI)
6	-	1	Part 10	(SUB AU40527, AU40529, AU40815 OR AT35910)
7	T68668	1	WASHER	(SUB FOR H61397, THIS APPLICATION)
8	R87627	1	O-RING	(SUB FOR R27976, THIS APPLICATION)
9	U40745	1	O-Ring	-
10	-	1	Part 14	(SUB AU40527, AU40529, AU40815 OR AT35910)
11	-	1	Part 15	(SUB AU40527, AU40529, AU40815 OR AT35910)
12	-	1	Part 16	(SUB AU40527, AU40529, AU40815 OR AT35910) (SUB FOR R31415, THIS APPLICATION)
13	AU40527	1	PRESSURE RELIEF VALVE	20 685 KPA (207 BAR) (3000 PSI)
13	AU40529	1	PRESSURE RELIEF VALVE	16 376 KPA (164 BAR) (2375 PSI)
13	AU40815	1	RELIEF VALVE	11 204 KPA (112 BAR) (1625 PSI)
13	AT35910	1	VALVE	(276 BAR) (4000 PSI)

RELIEF VALVE CARTRIDGES (9500 BACKHOE) [03C09]

Нет текстового описания
