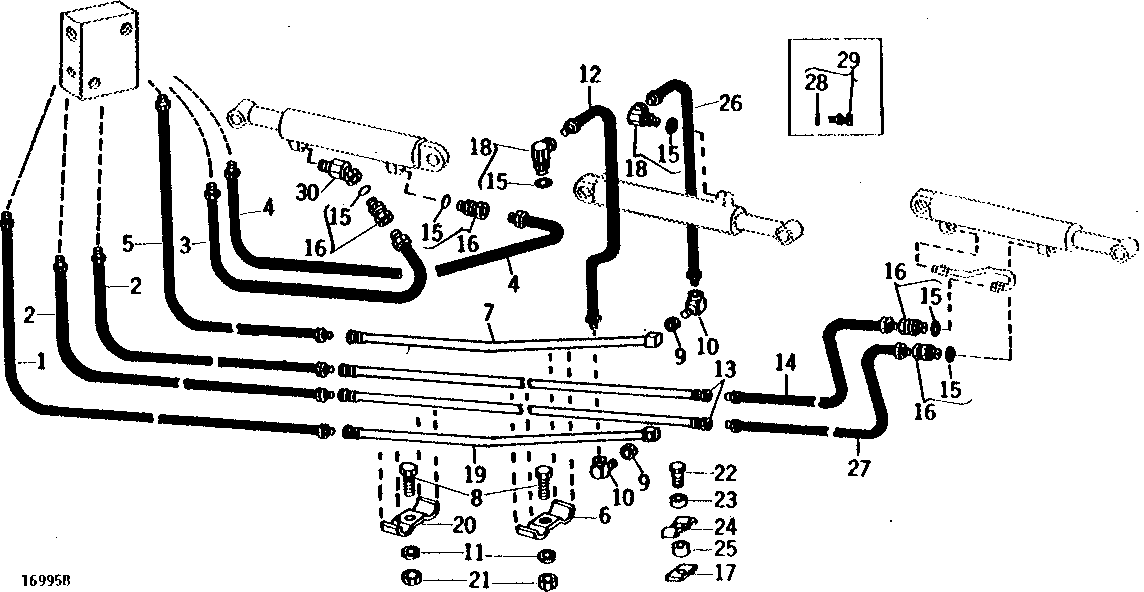

MANIFOLD TO BOOM, CROWD AND BUCKET CYLINDER (9500 BACKHOE) [03D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AU40429	1	HYDRAULIC HOSE - FABRICATE	1 387 MM (54.6") LONG
2	TY3010	2	HYDRAULIC HOSE	1 168 MM (45.9") LONG, (SUB FOR AU13295)
3	AT34934	1	HYDRAULIC HOSE - FABRICATE	2 159 MM (84.9") LONG (USE WITH AT32997)
3	AU13294	1	HYDRAULIC HOSE - FABRICATE	1 270 MM (49.9") LONG, (USE WITH AR90447)
4	TY3013	1	HYDRAULIC HOSE	2 235 MM (87.9") LONG, (SUB FOR AU10852)
5	AT33004	1	HYDRAULIC HOSE - FABRICATE	1 359 MM (53.5") LONG
6	U10736	1	CLAMP	(SUB FOR U10737, THIS APPLICATION)
7	AU11679	1	TUBE	-
8	19H3065	2	Cap Screw	3/8" X 2"
9	14H873	2	Nut	1-1/4"
10	U16163	2	ELBOW FITTING	-
11	12H304	2	Lock Washer	3/8"
12	AU10862	1	HYDRAULIC HOSE - FABRICATE	574 MM (22.5") LONG
13	AT33003	2	OIL LINE	-
13	AT64860	1	OIL LINE	L.H. (USE WITH AT64858)
13	AT64861	1	OIL LINE	R.H. (USE WITH AT64858)
14	AU10810	1	HYDRAULIC HOSE - FABRICATE	775 MM (30.5") LONG
15	R26906	6	O-Ring	-
16	AU11753	4	UNION FITTING	-
17	T38968	1	STRAP	-
18	AU11752	1	Fitting	(HEAD END)
18	AU11753	1	UNION FITTING	(SUB FOR AU11752, THIS APPLICATION)
19	AU11678	1	TUBE	-
20	U10736	1	CLAMP	-
21	14H812	2	NUT	3/8"
22	19H1765	1	Cap Screw	3/8" X 1-3/4"
23	28H2481	1	Spacer	(SUB FOR N10445, THIS APPLICATION)
24	U13055	1	CLAMP	-
25	28H2481	1	Spacer	3/8" X 1/2"
26	AU10861	1	HYDRAULIC HOSE - FABRICATE	864 MM (34.0") LONG
27	AU10810	1	HYDRAULIC HOSE - FABRICATE	775 MM (30.5") LONG (USE WITH AT32774)
27	AU13294	1	HYDRAULIC HOSE - FABRICATE	1 270 MM (49.9") LONG, (USE WITH AR90635)
28	R26906	1	O-Ring	(USE WITH AT32774 CYLINDER)
29	AU11753	1	UNION FITTING	(USE WITH AT32774)
30	JD184	1	Elbow Fitting	(USE WITH AR90447)
