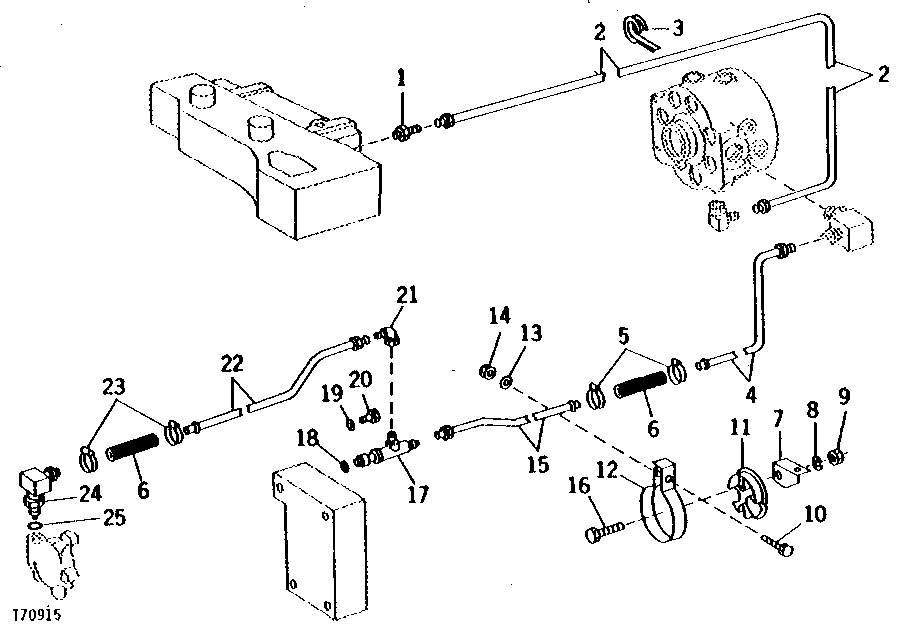

HYDRAULIC PUMP RETURN AND DRAIN OIL LINES [02E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27346	1	Fitting	-
1	R39832	1	Adapter Fitting	-
2	AT25345	1	LINE	(SUB AT63378, R36742, R26287, U45768 AND R27346, THIS APPLICATION)
2	AT63378	1	LINE	-
3	R44302	8	Tie Band	-
4	AT33919	1	OIL LINE	-
5	AR21839	2	Clamp	-
6	-	2	Part 8	25 MM X 76 MM (1" X 3") (MAKE FROM U11186) (SUB FOR T35691 AND T37798)
7	T36048	1	BRACKET	-
8	12H303	1	Lock Washer	5/16"
9	14H785	1	Nut	5/16"
10	19H1914	1	Cap Screw	1/4" X 1"
11	T34888	1	CLAMP	-
12	T36200	1	CLAMP	-
13	24H1287	1	Washer	9/32" X 5/8" X 0.065"
14	14H786	1	Nut	1/4"
15	AT33921	1	OIL LINE	-
16	19H1849	1	Cap Screw	5/16" X 1-1/4"
17	AT33923	1	ADAPTER FITTING	-
18	R1662R	1	WASHER	-
19	R43696	1	Washer	(SUB FOR A4231R)
20	19H2676	1	Cap Screw	3/8" X 1"
21	AT33917	1	ELBOW FITTING	90°
22	AT33918	1	OIL LINE	-
23	AR21839	2	Clamp	(SUB FOR H2742B, THIS APPLICATION)
24	AT33916	1	ELBOW FITTING	90°
25	U12547	1	O-Ring	(SUB FOR F3171R)

HYDRAULIC PUMP RETURN AND DRAIN OIL LINES [02E23]
