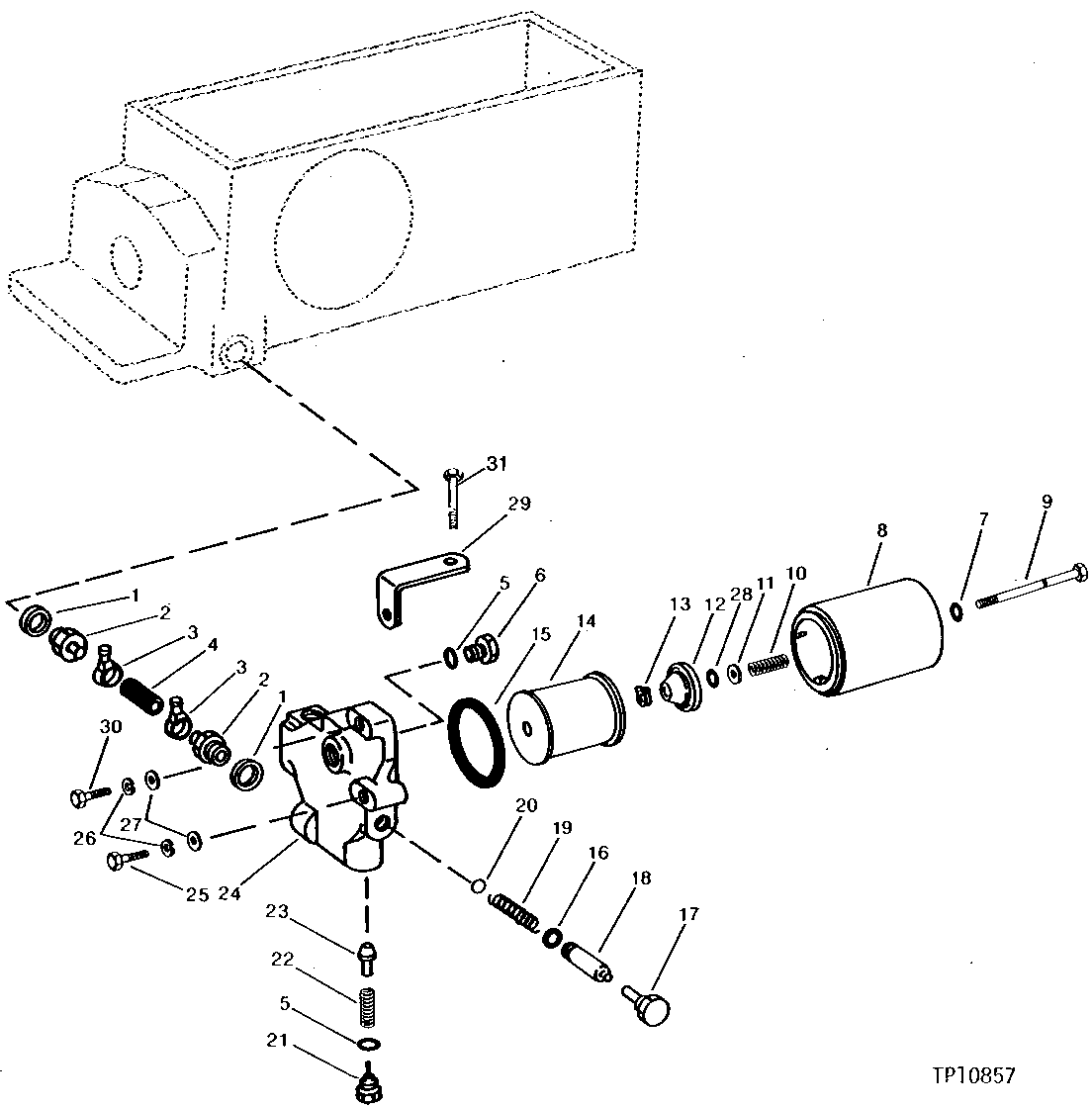

HYDRAULIC OIL FILTER AND RELIEF VALVE [02F01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4808R	2	WASHER	-
2	T38460	2	FITTING	-
3	AR21839	2	Clamp	(SUB FOR H2742B, THIS APPLICATION)
4	-	1	Part 4	25 MM X 86 MM (1" X 3-3/8") (MAKE FROM U11186) (SUB FOR T38461 AND T37798)
5	U12547	3	O-Ring	(K) (SUB FOR (3) F3171R)
6	R27175	2	Drain Plug	-
7	R394R	1	O-Ring	-
8	R51654	1	COVER	-
9	R82731	1	SCREW	(SUB FOR R54753)
10	H819R	1	SPRING	-
11	24H1227	1	Washer	17/32" X 13/16" X 0.060"
12	R28593	1	RETAINER	(USE WITH R394R ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
12	R65892	1	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
13	R32507	1	Snap Ring	-
14	AR75603	1	FILTER ELEMENT	(SUB FOR AR75601)
15	R34733	1	WASHER	-
16	R33259	1	O-Ring	(K)
17	AT26172	1	PLUG	(K) (NO LONGER AVAILABLE, ORDER R27474 AND T22850)
18	R57559	1	VALVE	(K)
19	T27992	1	SPRING	(K)
20	R26906	1	O-Ring	(K)
21	AT26171	1	PLUG	(K)
22	R30776	1	SPRING	(K)
23	R40976	1	VALVE	(K)
24	AT27078	1	HOUSING	(K) (MARKED T27991)
25	19H1732	2	Cap Screw	3/8" X 1-1/4"
25	19H1732	1	Cap Screw	3/8" X 1-1/4"
25	19H3239	2	Cap Screw	3/8" X 1-1/4"
26	12H304	2	Lock Washer	3/8"
27	24M7096	2	Washer	0.413" X 0.709" X 0.063"
28	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
28	F2741R	1	Packing	(USE WITH R65892 RETAINER)
29	T25068	1	ANGLE	-
30	19H3239	1	Cap Screw	3/8" X 1-1/4"
31	19H2633	1	Cap Screw	3/8" X 1-1/2"

HYDRAULIC OIL FILTER AND RELIEF VALVE [02F01]
