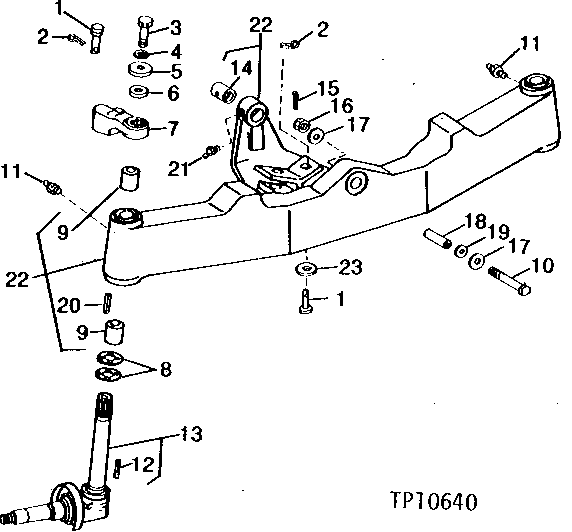

FRONT AXLE, SPINDLE, AND KNUCKLE ASSEMBLY [01B09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T48225	2	PIN FASTENER	STEERING CYLINDER
2	11M7087	2	Cotter Pin	4 X 40 MM
3	19H1439	2	CAP SCREW	5/8" X 3"
4	12H294	2	Lock Washer	5/8"
5	R20135	2	Washer	-
6	R52383	4	THRUST WASHER	-
7	T77737	1	STEERING ARM	L.H. (SUB FOR T71749) (ALSO ORDER AT76136, AS REQUIRED)
7	T77483	1	STEERING ARM	L.H. (ALSO ORDER AT76136, AS REQUIRED)
7	-	1	Part 13	L.H. ( T71746 NO LONGER AVAILABLE) (SUB T77483) (ALSO ORDER AT76136, AS REQUIRED)
7	T77737	1	STEERING ARM	L.H., (NOT ILLUSTRATED) (ALSO ORDER AT76136, AS REQUIRED) (SUB FOR T54445, T66937 AND T71749)
7	T77482	1	STEERING ARM	R.H. (ALSO ORDER AT76136, AS REQUIRED)
7	-	1	Part 9	R.H. ( T71745 NO LONGER AVAILABLE) (SUB T77482) (ALSO ORDER AT76136, AS REQUIRED)
7	T77736	1	STEERING ARM	R.H. (SUB FOR T71748) (ALSO ORDER AT76136, AS REQUIRED)
7	T77736	1	STEERING ARM	R.H. (ALSO ORDER AT76136, AS REQUIRED) (SUB FOR T54444, T66936 AND T71748)
8	R49838	4	Washer	-
8	T76024	4	THRUST WASHER	-
9	R49835	4	Bushing	-
9	R52188	4	Bushing	-
10	T25840	1	CAP SCREW	-
11	T162396	2	Lubrication Fitting	(SUB FOR JD7798) STRAIGHT, 1/8"
12	R56457	2	DOWEL PIN	-
12	34H308	2	Spring Pin	1/4" X 1/2"
13	AT76758	2	KNUCKLE	(SUB FOR AT46785) (ALSO ORDER AT76136, AS REQUIRED)
13	AT74163	2	KNUCKLE	(SUB AT76139) (ALSO ORDER AT76136, AS REQUIRED)
13	AT76139	2	KNUCKLE	-
14	T23170	1	BUSHING	-
15	11M7030	1	Cotter Pin	5 X 40 MM
16	14H534	1	NUT	3/4", (SUB FOR 14H902) SLOTTED
17	T151797	2	Washer	(SUB FOR T25922 OR T134960)
17	T25922	2	WASHER	(USE IF AVAILABLE)
18	T21669	1	BUSHING	-
19	T25921	6	SHIM	0.38 MM (.015")
20	34H308	2	Spring Pin	1/4" X 1/2"
20	R56457	2	DOWEL PIN	-
21	JD7799	1	Lubrication Fitting	1/8"
22	AT46784	1	FRONT AXLE	(MARKED T48221) (SUB AT63366)
22	AT63366	1	FRONT AXLE	(LIFETIME SUPPLY) (MARKED T66815)
22	AT74162	1	FRONT AXLE	(MARKED T76023)
23	24H448	1	Washer	25/32" X 1-1/8" X 0.090"

FRONT AXLE, SPINDLE, AND KNUCKLE ASSEMBLY [01B09]
