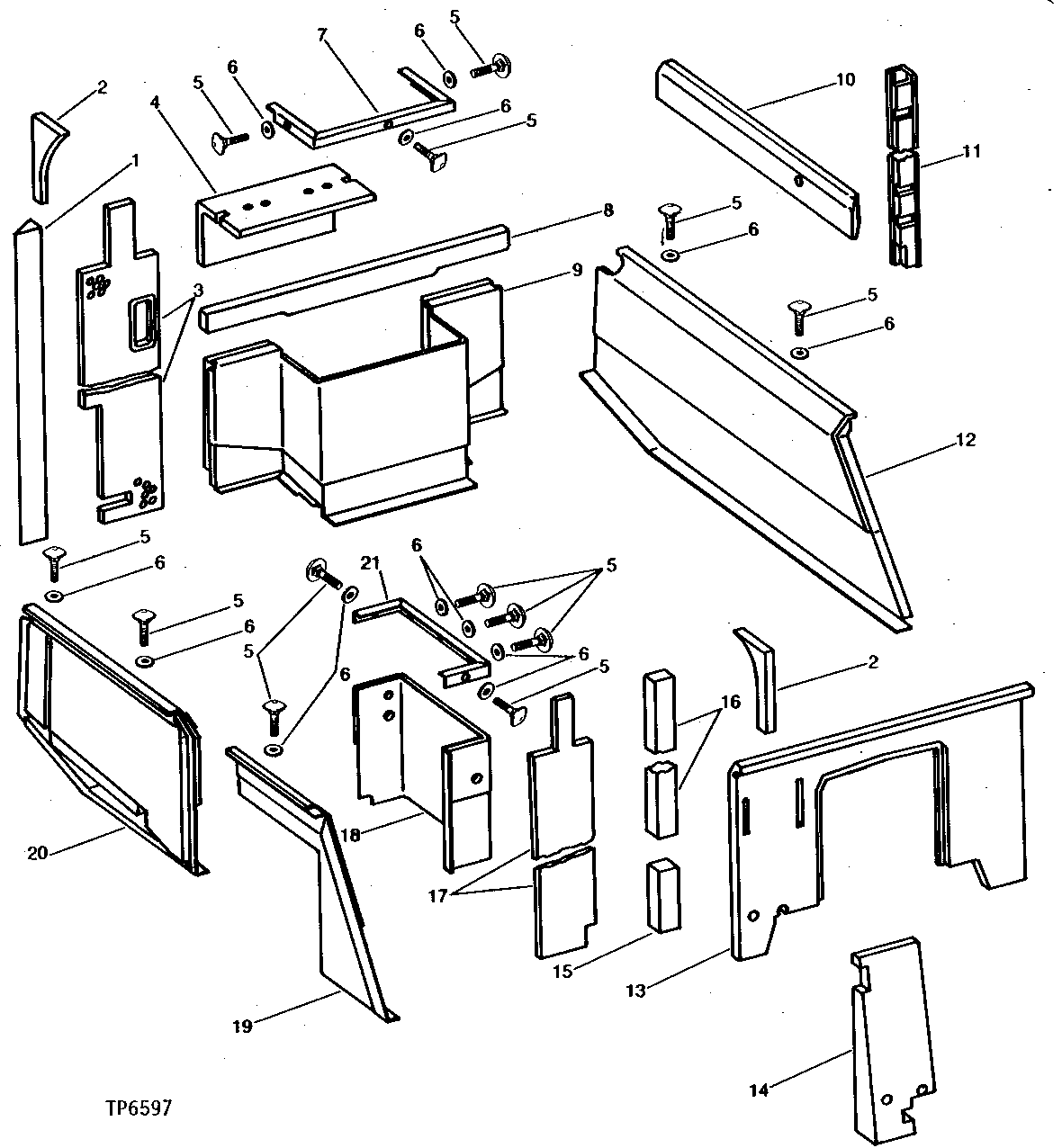

CAB FOAM COVERS AND FILLERS (NOISE REDUCTION INSTALLATION) [02B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T75335	2	REINFORCEMENT	REAR POST
2	T75324	4	GUSSET	POST
3	AT73214	1	BARRIER	REAR RIGHT POST
3	AT73215	1	BARRIER	REAR LEFT POST (NOT ILLUSTRATED)
4	T135327	1	ISOLATOR	BACKHOE VALVE COVER, (SUB FOR T51223)
5	37H112	13	Screw	0.190" X 1/2"
6	24H1283	13	Washer	7/32" X 1/2" X 0.049"
7	T75336	1	MOLDING	REAR CONSOLE
8	T75330	1	BARRIER	REAR
9	AT73220	1	BARRIER	REAR CONSOLE
10	T75331	1	BARRIER	RIGHT WINDOW (NOT ILLUSTRATED)
10	T75332	1	BARRIER	LEFT WINDOW
11	T75334	1	BARRIER	LEFT WINDOW
11	T75333	1	BARRIER	RIGHT WINDOW (NOT ILLUSTRATED)
12	AT73227	1	BARRIER	LEFT FENDER
13	T75325	1	BARRIER	FRONT
14	T75326	1	FOAM PAD	FRONT LEFT (NOT ILLUSTRATED)
14	T75327	1	REINFORCEMENT	FRONT RIGHT
15	T51217	2	ISOLATOR	FRONT POST TO CAB LOWER
16	T51216	2	ISOLATOR	FRONT POST TO CAB UPPER
17	AT73216	1	BARRIER	FRONT RIGHT POST
17	AT73217	1	BARRIER	FRONT LEFT POST (NOT ILLUSTRATED)
18	AT73221	1	BARRIER	RIGHT CONSOLE
19	AT73219	1	BARRIER	RIGHT FENDER FRONT
20	AT73218	1	BARRIER	RIGHT FENDER REAR
21	T75337	1	MOLDING	RIGHT CONSOLE
