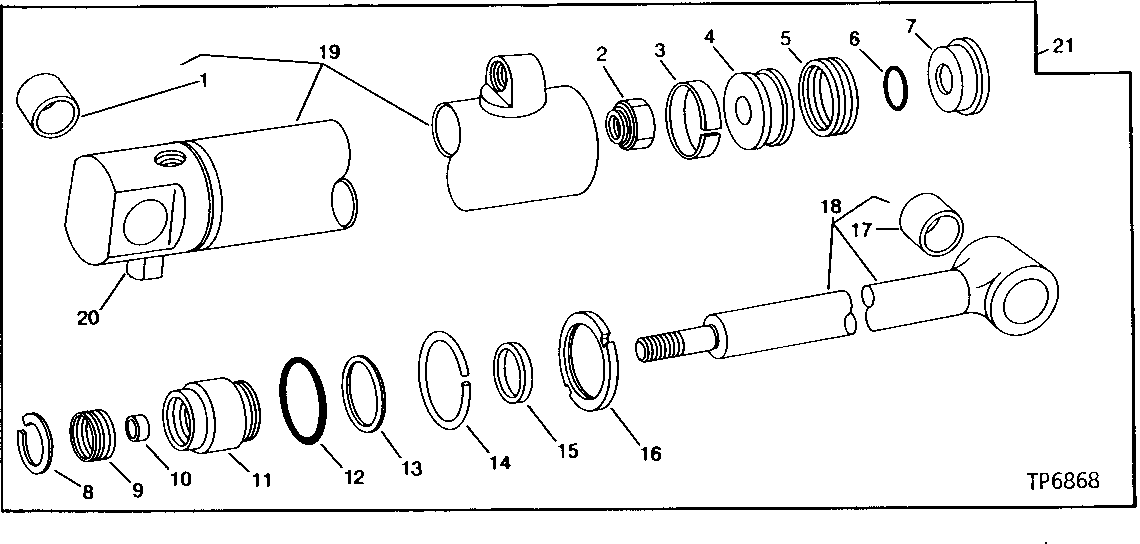

BACKHOE STABILIZER CYLINDER (9405 BACKHOE) (SERIAL NO. -700422) [02J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R92851	2	BUSHING	(USE WITH RE32619)
1	U11121	2	BUSHING	(USE WITH AT45904)
2	U13572	1	LOCK NUT	-
3	U17217	1	WEAR RING	(A)
4	U17349	1	PISTON	-
5	T38193	1	PACKING	(A) (SUB FOR R72827)
5	T38193	1	PACKING	-
6	A3606R	1	O-RING	(A)
7	U17345	1	PISTON	(SUB FOR R78224 AND RE12912, THIS APPLICATION)
8	U14128	1	SNAP RING	-
9	R76802	1	SEAL	(A) (SUB FOR T36998)
10	U41823	1	WEAR RING	(A)
11	U41897	1	HYDR. CYLINDER ROD GUIDE	-
12	U10776	1	O-Ring	(A)
13	R78993	1	BACK-UP RING	(A) (SUB FOR U10777, THIS APPLICATION)
14	U10775	1	SNAP RING	-
15	U11019	1	SEAL	(A)
16	U10769	1	NUT	-
17	U11121	2	BUSHING	-
18	AT34992	1	HYDRAULIC CYLINDER ROD	-
19	RE32619	1	HYDRAULIC CYLINDER BARREL	(ALSO ORDER T12844, THIS APPLICATION) (SUB FOR AT45904)
20	T12844	2	REINFORCEMENT	-
21	AT45903	2	CYLINDER	(ALSO ORDER T12844, THIS APPLICATION)
..	RE18754	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT36836, AT52703, AR96518, AR105715 AND AR105407)
