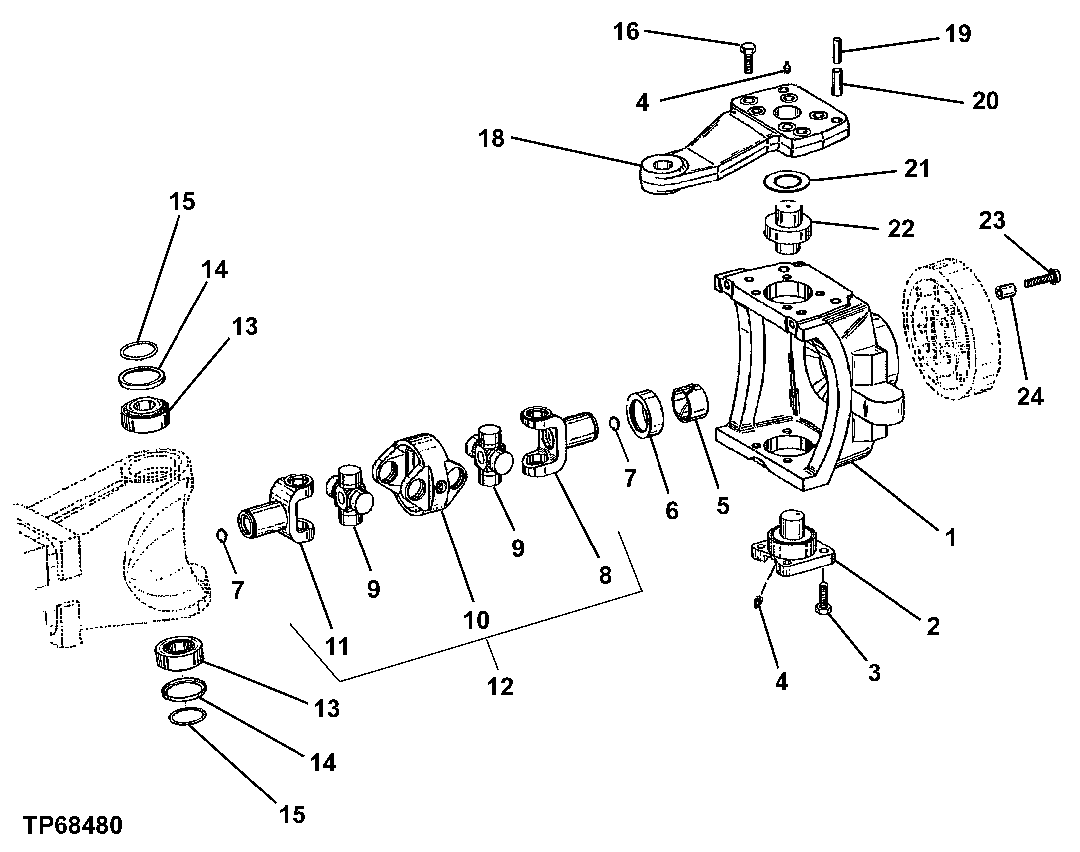

REAR AXLE PIVOT HOUSING, STEERING ARM AND UNIVERSAL JOINT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT261232	2	Housing	Left Shown
2	AT260992	2	Pin Fastener	-
3	19M8011	8	Cap Screw	M12 X 30
4	L40552	4	Lubrication Fitting	-
5	AT190925	2	Bushing	-
6	LW10291736	2	Seal	Shim Kit, ORDER LW11831910; SUB FOR T116820
6	LW11831910	1	Seal	-
7	AT260996	4	Snap Ring	-
8	AT261014	2	Yoke With Tube	-
9	AT261013	4	Cross And Bearing Assembly	-
10	AT261012	2	Universal Joint	-
11	AT261015	2	Yoke With Tube	-
12	AT260995	2	Universal Driveshaft	-
13	AL111096	4	Bearing	-
14	R75550	4	Round Retainer	-
15	R78976	4	Ring	-
16	19M7493	12	Cap Screw	M12 X 40
18	AT261867	1	Steering Arm	Right Not Shown
18	AT261866	1	Steering Arm	Left Shown
19	AT261865	4	Spring Pin	-
20	AT261864	4	Sleeve	-
21	T116670	2	Washer	-
21	T116677	2	Washer	35.100 X 70 X 2.800 mm (1.382" X 2.756" X 0.110")
21	T116676	2	Washer	35.100 X 70 X 2.600 mm (1.382" X 2.756" X 0.102")
21	T116675	2	Washer	35.100 X 70 X 2.400 mm (1.382" X 2.756" X 3/32")
21	T116674	2	Washer	35.100 X 70 X 2.200 mm (1.382" X 2.756" X 0.087")
21	T116673	2	Washer	35.100 X 70 X 2 mm (1.382" X 2.756" X 0.079")
21	T116672	2	Washer	-
21	T116669	2	Washer	-
21	T116668	2	Washer	-
21	T116667	2	Washer	-
21	T116666	2	Shim	0.6MM
21	T116665	2	Shim	0.4MM
21	T116671	2	Washer	-
22	AT260997	2	Pin	-
23	19M8121	16	Screw	M10 X 50
24	L41116	16	Bushing	10.200 X 18.100 X 23 mm (0.402" X 0.713" X 29/32")

REAR AXLE PIVOT HOUSING, STEERING ARM AND UNIVERSAL JOINT
