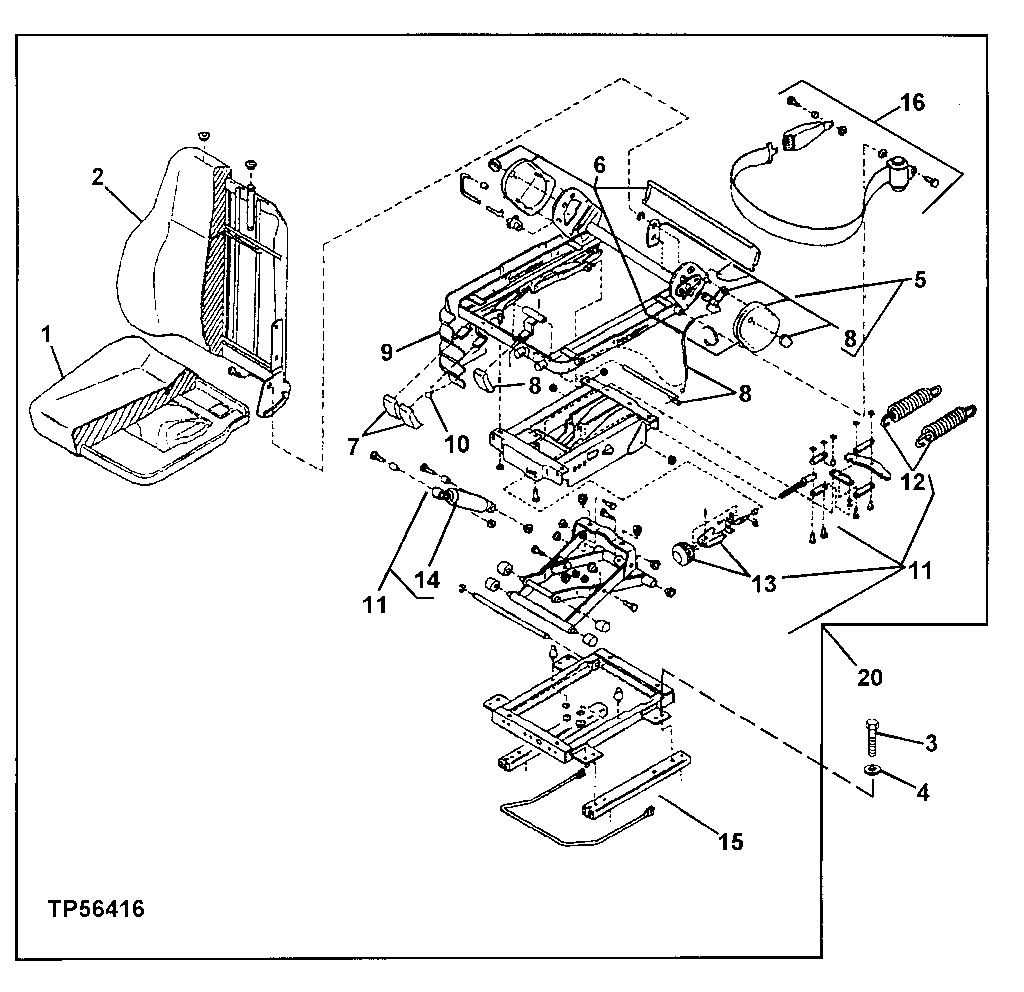

OPERATOR SEAT,SEAT TRACK AND SEAT BELT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT184884	1	Seat	Vinyl
1	AT218953	1	Seat	Cloth
2	AT218952	1	Seat Back	Cloth
2	AT184883	1	Seat Back	Vinyl
3	19M7881	4	Screw	M8 X 20
4	24M7055	4	Washer	8.400 X 16 X 1.600 mm
5	AT219224	1	Frame	(INCLUDES AT219225, AT219226 AND AT219227)
6	AT219225	1	Cover	-
7	AT219226	1	Handle	-
8	AT219227	1	Seat Adjustment Cable Kit	-
9	AT219228	1	Cover	-
10	AT218996	1	Hardware Kit	-
11	AT219229	1	Hardware Kit	(INCLUDES AT219230, AT219231 AND LW10039314)
12	AT219230	2	Spring	-
13	AT219231	1	Adjuster Kit	-
14	LW10039314	1	Shock Absorber	(SUB FOR AT219232)
15	AT322847	1	Frame	(SUB FOR AT219233)
16	AT157415	1	Seat Belt	2 INCH
16	AT171619	1	Seat Belt	3 INCH
20	AT218531	1	Seat	Cab Only Cloth
20	AT185022	1	Seat	Canopy Only Vinyl
