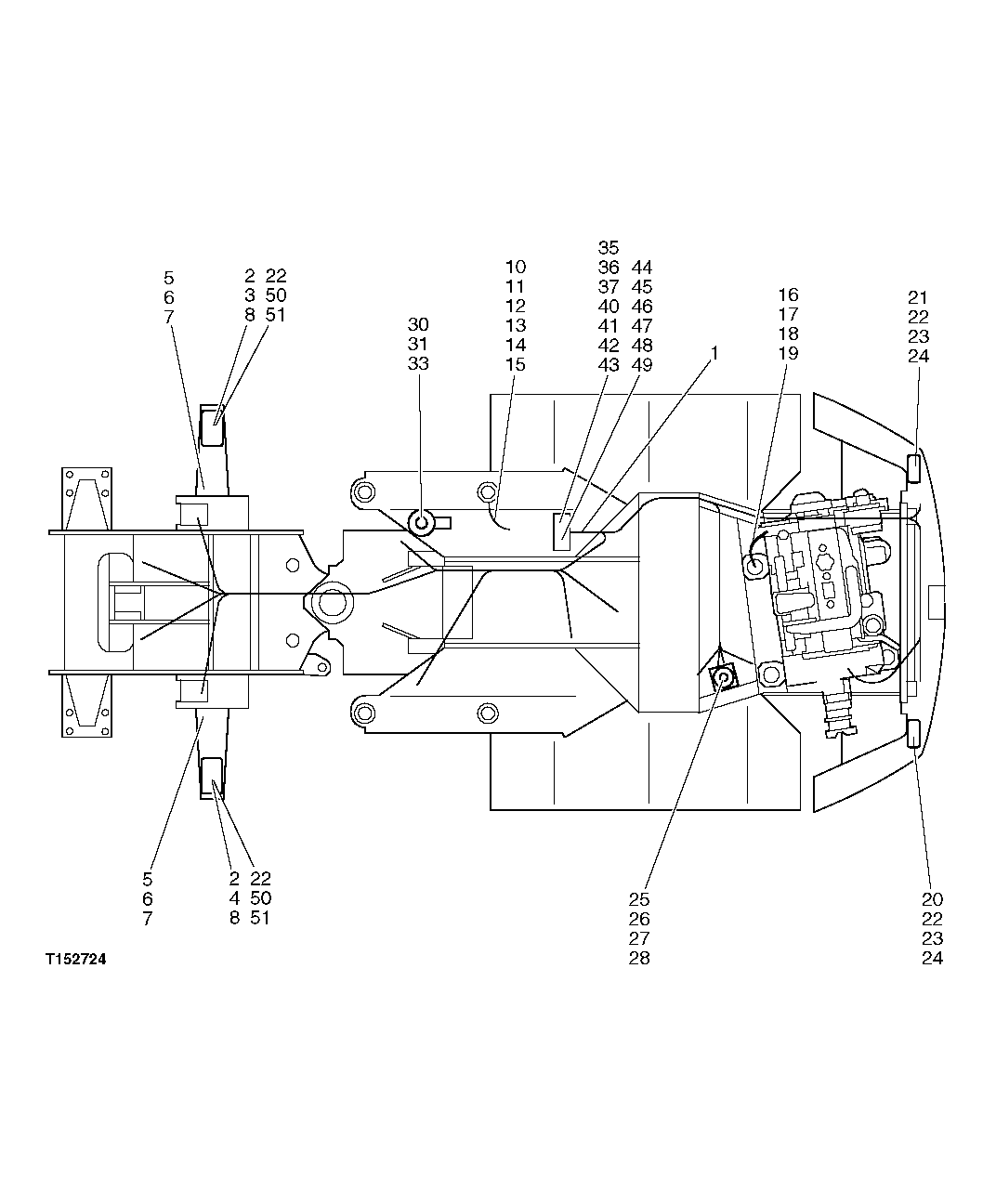

MAIN WIRING HARNESS, TURN LIGHTS, TAIL LIGHTS AND TRAVEL WARNING ALARM

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195378	1	Wiring Harness	Main Harness Loader /Rear Frame, (ALSO ORDER AT328408, AT197096 OR AT326369 AND AT196437, 24M7207, 19M7139, 24M7055 AND 14M7166)
1	AT261985	1	Wiring Harness	Main Harness Does Not Include Fuel Shutoff Components, (SUB AT195378)
1	AT309081	1	Wiring Harness	Main Harness, (SUB FOR AT197103)
2	AT219361	2	Guard	-
3	AT218584	1	Lamp	Right Drive Light
3	AT219061	1	Lamp	Right Turn Signal
4	AT218585	1	Lamp	Left Drive Light
4	AT219060	1	Lamp	Left Turn Signal
5	19M7166	4	Cap Screw	M10 X 20
6	24M7028	4	Washer	10.500 X 20 X 2 mm
7	12M7117	4	Washer	10.200 X 20 X 1.100 mm, (SUB FOR AT218444)
8	24H1621	4	Washer	11/32" X 1" X 0.220"
10	AT219287	1	Ground Cable	-
11	19M7163	1	Cap Screw	M8 X 25
12	24H1621	2	Washer	11/32" X 1" X 0.220"
13	12M7117	2	Washer	10.200 X 20 X 1.100 mm, (SUB FOR AT218444)
14	14M7273	1	Nut	M8
15	19M7162	1	Cap Screw	M8 X 16
16	AT187624	2	Ground Cable	(SUB AT219287)
16	AT219287	2	Ground Cable	-
17	19M7382	1	Cap Screw	M10 X 40, (USE WITH AT187624)
17	19M7180	1	Cap Screw	M10 X 45, (USE WITH AT219287)
18	24M7028	2	Washer	10.500 X 20 X 2 mm
19	14M7274	1	Nut	M10
20	AT260884	1	Tail Lamp	Left Tail Light, (SUB FOR AT218564)
21	AT260885	1	Tail Lamp	Right Tail Light, (SUB FOR AT218565)
22	AT218575	4	Bulb	Indicator Lights
23	AT218576	2	Bulb	-
24	AT218427	4	Screw	-
25	AT218562	1	Travel Warning Alarm	-
26	19M7964	2	Cap Screw	M8 X 12
27	12M7056	2	Lock Washer	8 mm, (SUB FOR AT218443)
28	24M7298	2	Washer	8.400 X 25 X 2 mm
30	AM107657	1	Horn	(SUB FOR AT218577)
31	19M7964	1	Cap Screw	M8 X 12
33	24M7055	1	Washer	8.400 X 16 X 1.600 mm
35	19M7557	1	Cap Screw	M10 X 16
36	24M7213	1	Washer	10.500 X 25 X 4 mm
37	12M7117	1	Washer	10.200 X 20 X 1.100 mm, (SUB FOR AT218444)
40	AT261967	1	Plate	-
41	24M7055	2	Washer	8.400 X 16 X 1.600 mm
42	12M7056	2	Lock Washer	8 mm
43	19M7964	2	Cap Screw	M8 X 12
44	21M7271	3	Screw	M5 X 16
45	24M7027	2	Washer	5.300 X 10 X 1 mm
46	M67194	3	LOCK NUT	-
47	AT261219	4	Cap Screw	-
48	24M7117	4	Washer	4.300 X 9 X 0.800 mm
49	14M7139	4	Nut	M4
50	AT262077	1	Bulb	(USE WITH AT218584 AND AT218585)
51	57M6394	1	Bulb	SUB FOR AT262078; USE WITH AT218584 AND AT218585

MAIN WIRING HARNESS, TURN LIGHTS, TAIL LIGHTS AND TRAVEL WARNING ALARM
