Loader Boom Hydraulic Lines (Auxiliary Fourth Function Loader Valve)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT191761	1	Control Valve	Fourth Function
2	AT191774	1	Cap Screw And Nut	KIT (INCLUDES (4) BOLTS AND (4) NUTS)
3	XGE10LMEDCF	2	Fitting	SUB FOR AT218623
4	AT191775	2	Orifice	-
5	AT261769	2	Fitting	Union
10	AT184932	1	Angle	-
11	19M7167	2	Cap Screw	M10 X 25
12	12M7117	2	Washer	10.200 X 20 X 1.100 mm, SUB FOR AT218444
13	14M7274	2	Nut	M10
15	AT184933	1	Flow Control Hyd. Valve	-
16	LW11832555	1	Plate	SUB FOR AT218723
17	XGE10LREDCF	4	Fitting	Union, SUB FOR AT218837
18	19M8576	4	Screw	M5 X 30
19	19M7286	2	Cap Screw	M6 X 25
20	14M7272	2	Nut	M6
21	12H302	2	Lock Washer	1/4"
22	XEL10LCF	1	Fitting	SUB FOR AT218872 AND LW247242302
22	51M7106	1	O-Ring	7.500 X 1.500 mm
23	51M7106	2	O-Ring	7.500 X 1.500 mm
23	AT184935	1	Hydraulic Hose	-
24	AT218865	1	Hydraulic Hose	-
24	51M7106	2	O-Ring	7.500 X 1.500 mm
25	AT219047	1	Hydraulic Hose	-
25	51M7111	1	O-Ring	20.300 X 2.400 mm
25	T78393	1	O-Ring	-
26	AT184934	1	Hydraulic Hose	-
26	51M7106	2	O-Ring	7.500 X 1.500 mm
30	AT184936	1	Cable	-
31	AT218768	1	Switch Kit	-
32	AT184937	2	Spring	-
35	AT184938	1	Switch	-
40	AT184939	1	Monitor Wiring Harness	-
41	AT184940	1	Solenoid Valve	-
43	AT186904	2	Elec. Connector Terminal	-
44	AT218580	2	Relay	ORDER LW12235015
44	LW12235015	2	Relay	-
45	AT187630	2	Socket	-
70	-	1	Part 38	AT190611 NLA, WHOLE GOODS Additional Components On Separate Pages

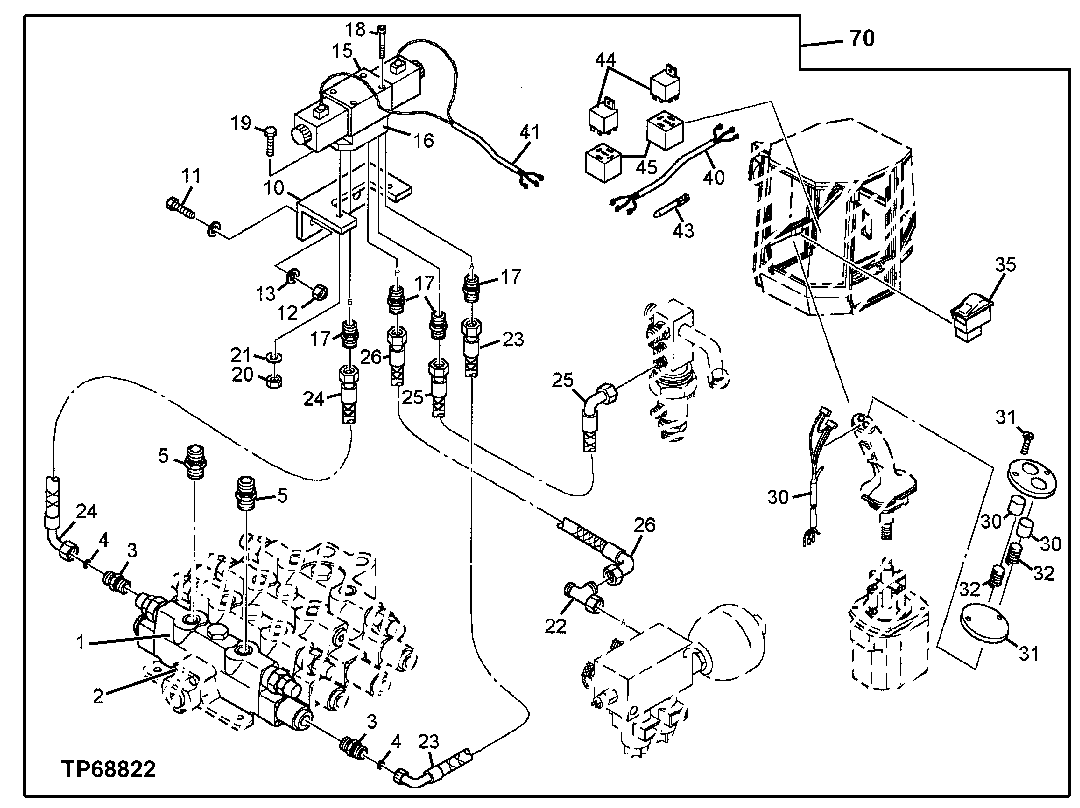

Loader Boom Hydraulic Lines (Auxiliary Fourth Function Loader Valve)
