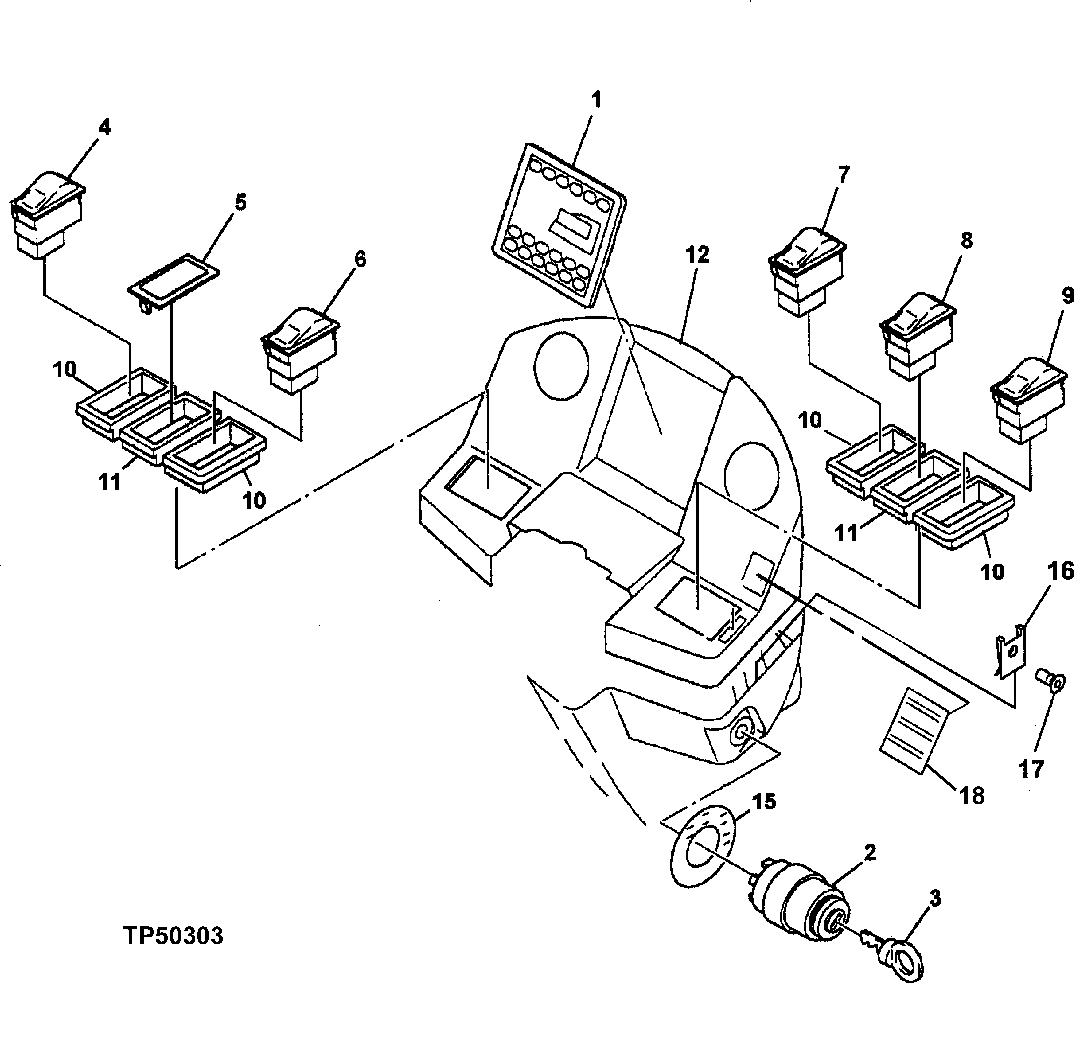

INSTRUMENT PANEL, IGNITION SWITCH, LIGHT SWITCHES AND PARK BRAKE SWITCH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT199625	1	Monitor	NLA, ORDER AT309857, SUB FOR AT187027, SUPPLIER PART NUMBER 00000449
1	-	1	Part 3	NLA, ORDER AT309855, SUPPLIER PART NUMBER 00000450
1	AT218597	1	Monitor Console	NLA, ORDER AT309857, SUPPLIER PART NUMBER 00000484
1	AT199627	1	Monitor	NLA, ORDER AT309856, SUB FOR AT261228
1	AT309855	1	Monitor	6 DIP Switches, SUPPLIER PART NUMBER 00000440
1	AT309856	1	Monitor	6 DIP Switches, SUPPLIER PART NUMBER 00000439
1	AT309857	1	Monitor	4 DIP Switches, SUPPLIER PART NUMBER 00000441
1	AT199624	1	Monitor	NLA, ORDER AT309855, SUPPLIER PART NUMBER 00000448
2	LW10114955	1	Rotary Switch	SUB FOR AT218573
3	AT218850	1	Key	-
4	AT250315	1	Switch	-
5	AT250308	1	Cover	-
6	AT250316	1	Rotary Switch	Driving Lights, Headlights Or Work Lights
7	AT250317	1	Toggle/Rocker Switch	Front Work Lights
8	-	1	Part 15	Rear Work Lights, AT250318, NLA
9	AT250319	1	Switch	Park Brake
10	N202893	4	Bezel	SUB FOR AT250306
11	AT250307	2	Holder	-
12	AT219135	1	Console	-
15	AT219257	1	Cover	-
16	AT261047	8	Nut	-
17	21M7265	8	Screw	Black Torxx
18	AT219256	1	Cover	-

INSTRUMENT PANEL, IGNITION SWITCH, LIGHT SWITCHES AND PARK BRAKE SWITCH
