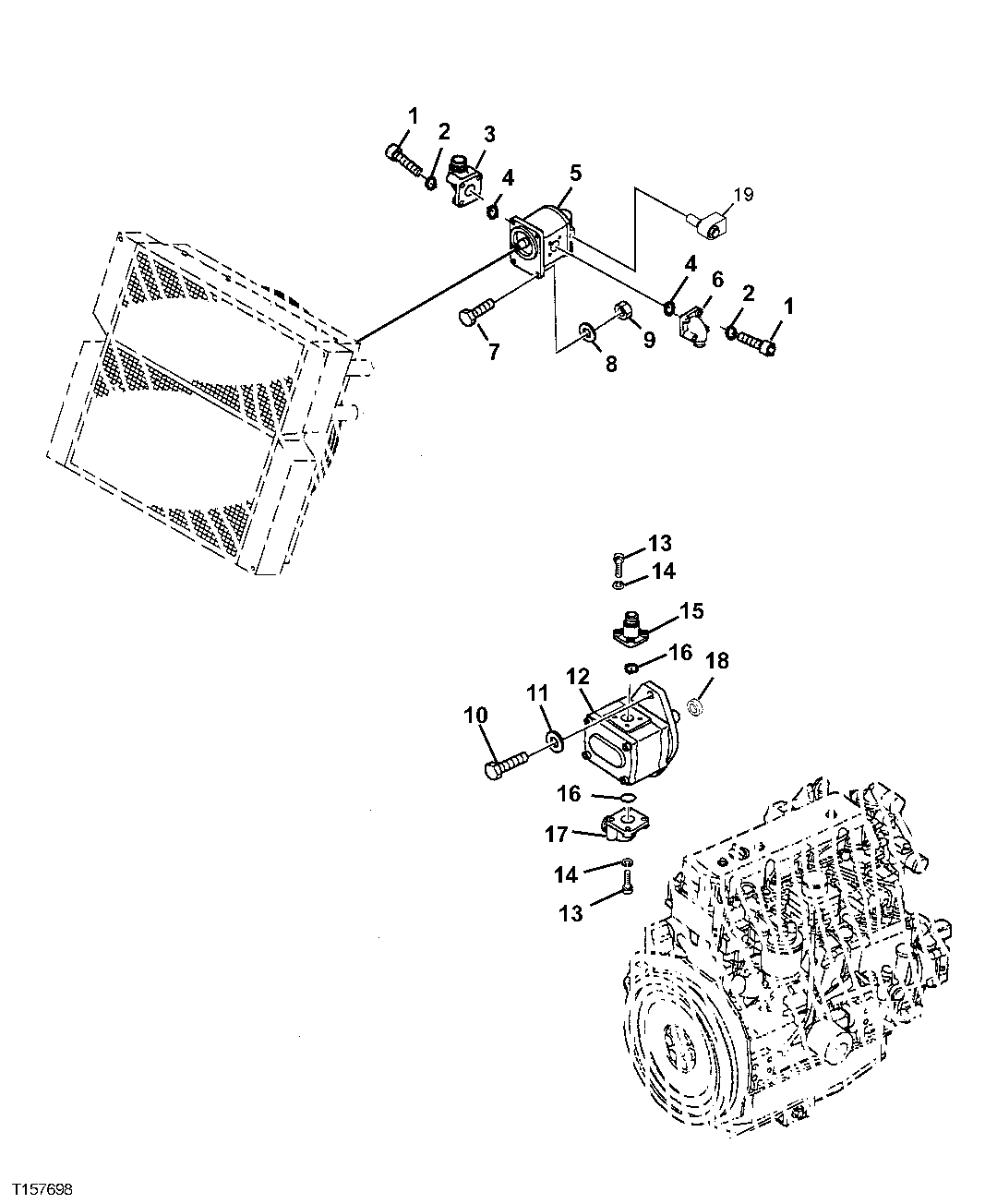

Hydraulic Pump And Cooling Fan Motor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT250296	8	Screw	-
2	12M7006	2	Lock Washer	6 mm
3	AT218878	1	Flange Fitting	-
4	AT250338	2	O-Ring	-
5	AT261757	1	Hydraulic Motor	2-PORT, SUB FORAT340123 ALSO ORDER AT219003, LW10007926, AT265384 AND XEGE16SMEDCF AND 51M7108
5	AT340123	1	Fan	3-PORT, (ALSO ORDER <service-part qty="1">AT265384</service-part> AND <service-part qty="1">AT195744</service-part> ) (SUB FOR <service-part qty="1">AT261757</service-part > INSTALLATION INSTRUCTIONS <service-part>T239438</service-part>)
5	26M4221	1	Shaft Key	3 X 13 mm, Not Illustrated
5	LW12208473	1	Solenoid Valve	Solenoid Valve Not Illustrated, ALSO ORDER AT265384 AND XEGE16SMEDCF AND 51M7108; SUB FOR AT261844
6	AT218888	1	Flange Fitting	-
7	19M7163	4	Cap Screw	M8 X 25
8	12M7056	4	Lock Washer	8 mm
9	14M7273	4	Nut	M8
10	19M8881	2	Screw	M10 X 30
11	12M7117	2	Washer	10.200 X 20 X 1.100 mm, SUB FOR AT218444
12	-	1	Part 15	AT261744 NLA
12	AT194029	1	Pump	-
13	-	8	Part 17	-
14	12M7006	8	Lock Washer	6 mm, SUB FOR (8) AT250295
15	AT261808	1	Flange Fitting	-
16	L53840	2	O-Ring	SUB FOR AT261788
17	AT218888	1	Flange Fitting	-
18	AT261785	1	Seal	-
19	LW12208473	1	Solenoid Valve	SUB FOR AT261844

Hydraulic Pump And Cooling Fan Motor

Нет текстового описания
