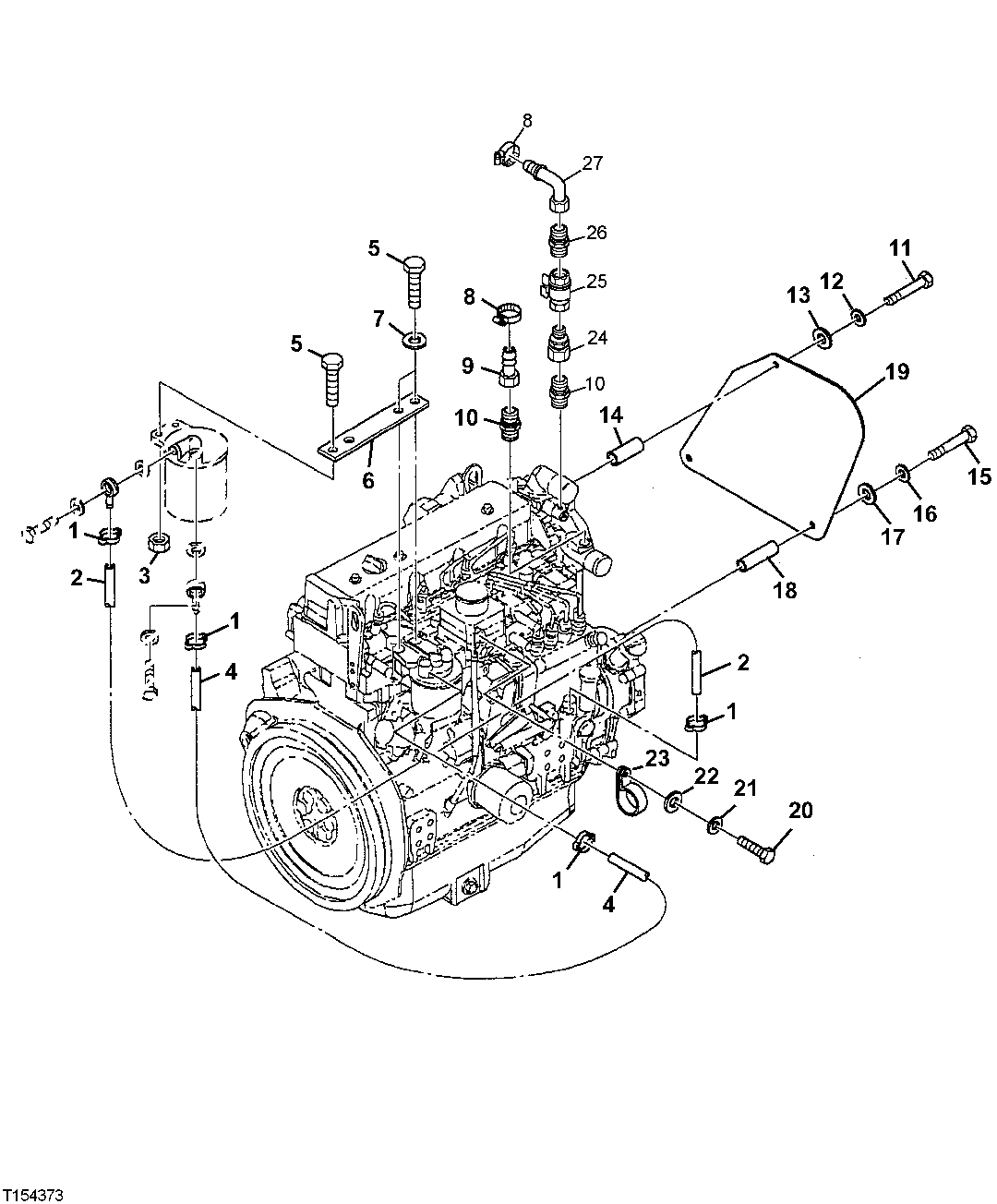

BELT GUARD, FITTINGS, CLAMPS AND FUEL HOSE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT218990	1	Hose Clamp	-
2	L65382	1	Hose	(CUT TO LENGTH), (SUB FOR AT218479)
3	14M7517	2	Lock Nut	M10
4	L65382	1	Hose	(CUT TO LENGTH), (SUB FOR AT218479)
5	19M7169	4	Cap Screw	M10 X 35, (SUB 19M7382)
5	19M7382	4	Cap Screw	M10 X 40
6	AT262005	1	Bracket	FUEL FILTER
7	12M7117	4	Washer	10.200 X 20 X 1.100 mm, (SUB FOR AT218444)
8	AT218492	2	Hose Clamp	-
9	AT261800	2	Fitting	ORDER LW12411087
9	LW12411087	2	Fitting	-
10	AT261798	2	Fitting	-
11	19M7296	1	Cap Screw	M8 X 100
12	12M7117	1	Washer	10.200 X 20 X 1.100 mm, (SUB FOR AT218444)
13	24M7028	1	Washer	10.500 X 20 X 2 mm
14	AT261969	1	Spacer	-
15	19M7479	2	Cap Screw	M10 X 80
16	12M7056	2	Lock Washer	8 mm
17	24M7055	2	Washer	8.400 X 16 X 1.600 mm
18	AT219442	2	Spacer	-
19	AT261980	1	Shield	-
20	19M7139	1	Cap Screw	M8 X 20
21	12M7056	1	Lock Washer	8 mm
22	24M7055	1	Washer	8.400 X 16 X 1.600 mm
23	AT261793	1	Clamp	-
24	XEGE15LREDCF	1	Adapter Fitting	SUB FOR AT218918
24	51M7109	1	O-Ring	15 X 2 mm
25	AT196531	1	Ball	-
26	XGE15LREDCF	1	Fitting	SUB FOR AT196530
27	AT218863	1	Union Fitting	-

BELT GUARD, FITTINGS, CLAMPS AND FUEL HOSE
