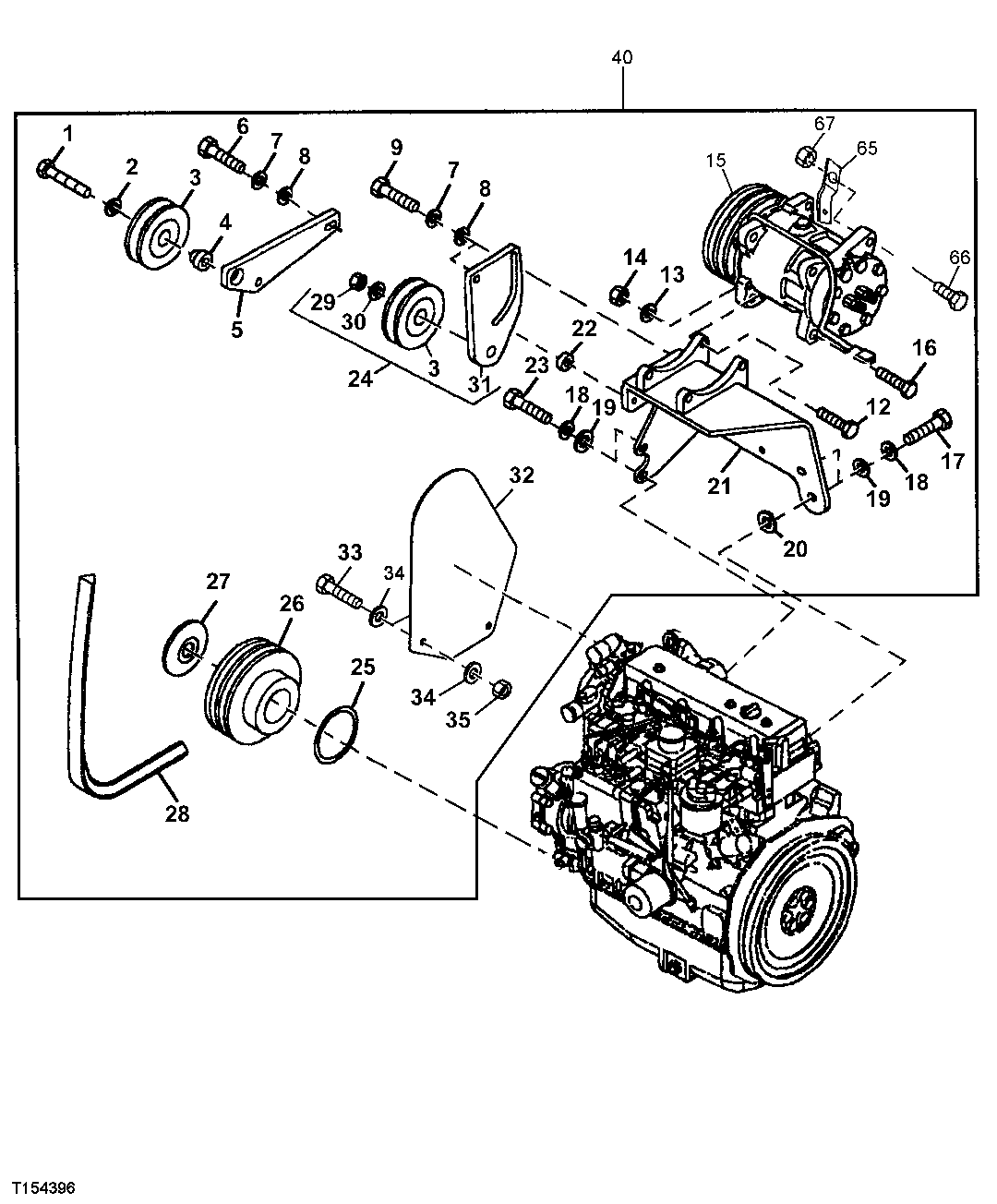

AIR CONDITIONING COMPRESSOR AND MOUNTING BRACKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8008	1	Cap Screw	-
2	24M7028	1	Washer	10.500 X 20 X 2 mm
3	AT212052	1	Bearing	Not Illustrated
3	AT212043	2	Pulley	Assembly
4	AT212044	1	Spacer	-
5	T213238	1	Bracket	(SUB FOR AT191896)
6	-	1	Part 7	-
7	12M7056	3	Lock Washer	8 mm
8	24H1621	3	Washer	11/32" X 1" X 0.220"
9	19M7163	2	Cap Screw	M8 X 25
12	19M7550	2	Cap Screw	M10 X 35, (SUB FOR 19M7169)
13	24M7028	4	Washer	10.500 X 20 X 2 mm
14	14M7517	4	Lock Nut	M10
15	AT191893	1	Compressor	-
16	19M7358	2	Cap Screw	M10 X 40, (SUB FOR 19M7183)
17	19M7288	2	Cap Screw	M8 X 30
18	12M7056	4	Lock Washer	8 mm
19	24H1621	4	Washer	11/32" X 1" X 0.220"
20	24M7207	2	Washer	8.400 X 24 X 2 mm
21	AT311909	1	Bracket	(SUB FOR AT191894 ) (ALSO ORDER T213238, (2) 34M7295, (2) 19M7572, (2) 19M7550, N188766, (3) 19M8637, (4) 14M7298, R53436 AND (4) 14M7517)
22	AT191897	1	Spacer	-
23	19M7163	2	Cap Screw	M8 X 25
24	AT212045	1	Pulley	-
25	CH13807	1	Packing	-
26	AT212067	1	Pulley	Double Crankshaft, (SUB FOR AT212042)
27	MIU803078	1	Pulley	SUB FOR AT211960
28	AT191895	1	Flat Belt	-
29	14M7274	1	Nut	M10
30	24M7028	1	Washer	10.500 X 20 X 2 mm
31	-	1	Part 30	Not Available -Order Assembly
32	AT191900	1	Guard	-
33	19M7881	2	Screw	-
34	24M7207	2	Washer	8.400 X 24 X 2 mm
35	14M7166	2	Lock Nut	M8
40	-	1	Part 35	( AT190601, AT304062 NLA) (PART OF AT196517 COMPLETE KIT) (FIELD A/C) (INCLUDES A/C COMPRESSOR, MOUNTING BRACKETS, ALTERNATOR, DRIVE BELT, DOUBLE CRANKSHAFT PULLEY, IDLER PULLEY, TENSIONER, AND MISC.) (WHOLE GOODS)
65	AT196437	1	Clamp	-
66	19M7402	1	Cap Screw	M10 X 25, (SUB FOR 19M7167)
67	14M7517	1	Lock Nut	M10

AIR CONDITIONING COMPRESSOR AND MOUNTING BRACKETS

Нет текстового описания
