Rear Hydraulic Coupler Lines, Dual Spool Valve, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7864	1	Screw	M8 X 12
2	LVA24159	1	Bracket	-
3	SU57792	2	Label	Dual Rear SCV Control
4	LVU35700	1	Bracket	ROPS Lights, RH
5	LVU35701	1	Bracket	ROPS Lights, LH
6	19M7865	4	Screw	M8 X 16
7	L55969	2	Nut	-
8	LVA13231	4	Hyd. Quick-Connect Coupler	-
9	LVU26399	2	Plug	Violet
10	LVU32118	1	Label	SCV
11	LVU32972	1	Bracket	SCV Cover
12	LVU32973	1	Bracket	SCV Coupler Cover
13	LVA16352	1	Spool Valve	-
14	R63922	4	Fitting	-
15	R26375	13	O-Ring	-
16	T77857	11	O-Ring	-
17	38H1161	4	Adapter Fitting	-
18	38H1005	1	Elbow Fitting	-
19	40M7078	8	Snap Ring	-
20	19M7979	2	Screw	M8 X 55
21	14M7298	4	Flange Nut	M8
22	38H1095	2	Elbow Fitting	-
23	38H5128	1	Union Fitting	-
24	W42417	2	Plug	Black
25	LVU31993	1	Control Lever	SCV 5
26	LVU31994	1	Control Lever	SCV 4
27	19M7691	1	Cap Screw	M8 X 90
28	14M7396	3	Lock Nut	M8
29	19M8039	2	Screw	M8 X 80
30	LVU34747	1	Bracket	-
31	LVU27291	3	Hose Guard	-
32	R44302	6	Tie Band	-
33	19M7866	2	Screw	M8 X 20
34	38H1039	1	Tee Fitting	W/ Loader
35	15H558	1	Pipe Plug	1/8"
36	19M7833	1	Screw	M6 X 35
37	SJ36573	1	Oil Line	Rear SCV to Tank Return
38	SJ36562	1	Oil Line	SCV to Rear Control Valve
39	SJ36574	1	Oil Line	Rear Control Valve to SCV, W/ Loader
40	14M7397	2	Lock Nut	M6
41	SJ36561	1	Oil Line	Rear Control Valve to SCV
42	SU57819	1	Bracket	Hydraulic Line Support
43	SJ36572	1	Oil Line	SCV to Tank Return
44	19M7797	1	Screw	M6 X 40
45	LVU31690	2	Block Clamp	-
46	SJ36575	1	Oil Line	-
47	BLV10901	1	Valve Kit	-

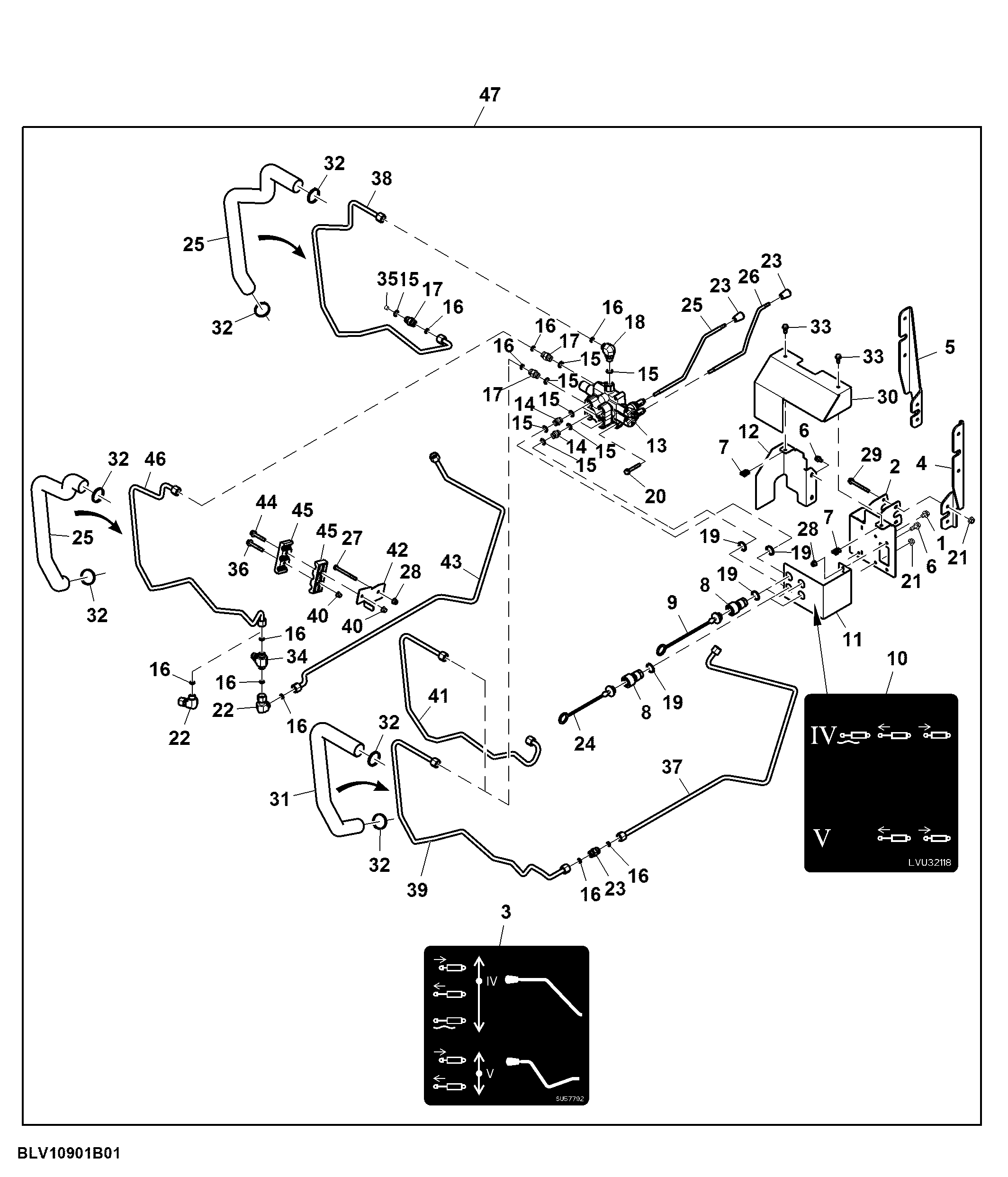

Rear Hydraulic Coupler Lines, Dual Spool Valve, Attachment
