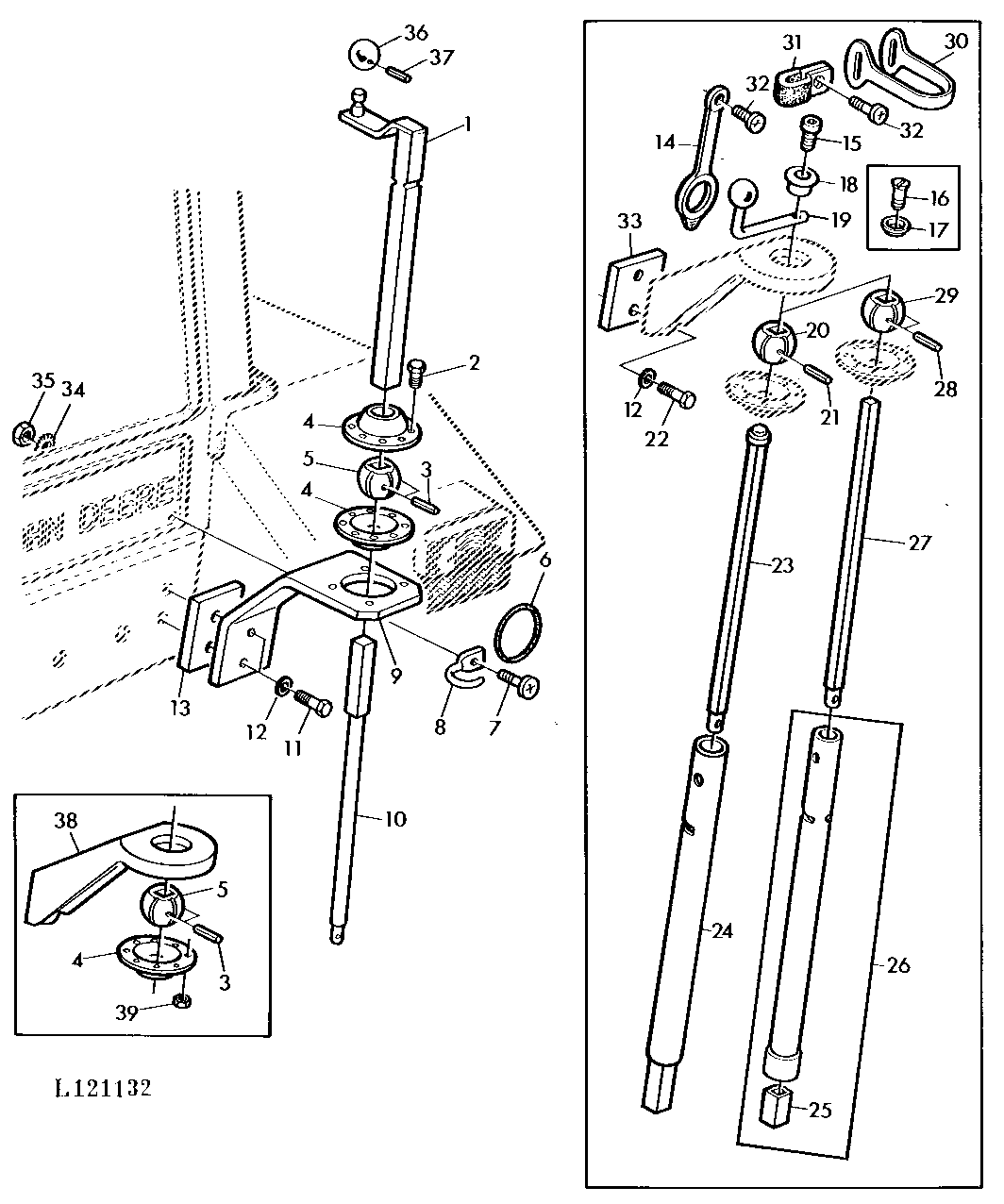

THREE POINT HITCH - LIFT LINK ADJUSTMENT (SG2 CAB)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL55717	1	Crank	(WITH INCREASED LIFTING CAPACITY) NLA
1	AL56031	1	Crank	-
2	37M7047	4	Screw	M5 X 12, M5X12
3	34M7118	2	Spring Pin	3.500 X 26 mm, 3.5X26MM
4	L38374	1	Pressed Flanged Housing	-
5	L55830	1	Ball	-
6	L56092	1	O-Ring	-
7	R50641	1	Screw	-
8	L56093	1	Eyelet	-
9	L63340	1	Bracket	-
10	AL56027	1	Rod	-
10	AL56026	1	Rod	(WITH INCREASED LIFTING CAPACITY)
11	L41153	2	Cap Screw	5/16"X1-3/4"
11	19H1849	2	Cap Screw	(WITH INCREASED LIFTING CAPACITY) 5/16" X 1-1/4", 5/16"X1-1/4"
12	24M7260	2	Washer	8.400 X 24 X 2 mm, 8.4X25X2MM
13	L41152	1	Strap	-
14	L39928	1	Retainer	-
15	19M8146	1	Screw	M5 X 16, M5X16
16	21M7300	1	Screw	M5 X 16, M5X16, (ORDER 19M8146, L40527)
17	L35671	1	Washer	(ORDER L40527, 19M8146)
18	L40527	1	Washer	-
19	AL38207	1	Lever	-
20	L35670	1	Ball	-
21	34M7118	1	Spring Pin	3.500 X 26 mm, 3.5X26MM
22	19H1849	2	Cap Screw	5/16" X 1-1/4", 5/16"X1-1/4"
22	L41153	2	Cap Screw	(WITH INCREASED LIFTING CAPACITY) 5/16"X1-3/4"
23	AL36197	1	Bar	(ORDER AL56031, AL56027, AL55791, L55830, L41152, (2) 34M7118, (2) L41153)
24	L38062	1	Tube	(ORDER AL56031, AL56027, AL55791, L55830, L41152, (2) 34M7118, (2) L41153)
25	L41987	1	Structural Tube	(WITH INCREASED LIFTING CAPACITY)
26	AL41353	1	Tube	(WITH INCREASED LIFTING CAPACITY) (ORDER AL55717, AL56026, L55830, AL55791, (2) 34M7118, (2) 19H1849)
27	L41986	1	Shaft	(WITH INCREASED LIFTING CAPACITY) (ORDER AL55717, AL56026, L55830, AL55791, (2) 34M7118, (2) 19H1849)
28	34M7142	2	Spring Pin	(WITH INCREASED LIFTING CAPACITY) 3.500 X 24 mm, 3.5X24MM
29	L41985	1	Ball	(WITH INCREASED LIFTING CAPACITY)
30	L42004	1	Strap	(WITH INCREASED LIFTING CAPACITY)
31	T13913	1	Clip	(WITH INCREASED LIFTING CAPACITY)
32	37M7116	1	Screw	M8 X 20, M8X20
33	L41152	1	Strap	(WITH INCREASED LIFTING CAPACITY)
34	12M7081	1	Lock Washer	6.400 mm, 6.4MM
35	14H786	1	Nut	1/4", 1/4"
36	L38371	1	Knob	-
37	34M7094	1	Spring Pin	4 X 16 mm, 4X16MM
38	AL55791	1	Bracket	(SUB FOR AL36369) (ORDER L63340, L38374, (4) 37M7047)
39	14M7360	4	Lock Nut	M5, M5

THREE POINT HITCH - LIFT LINK ADJUSTMENT (SG2 CAB)
