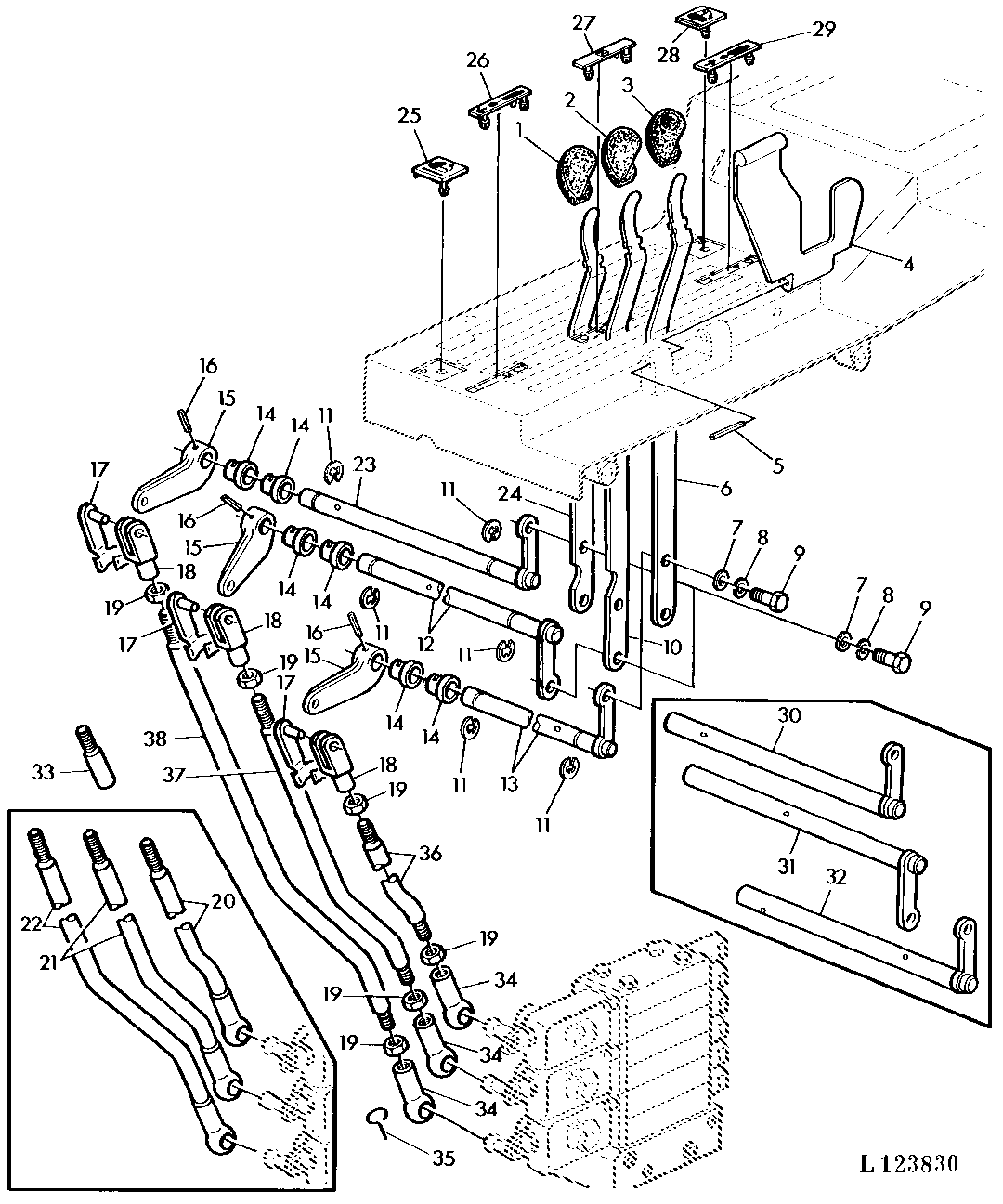

SELECTIVE CONTROL VALVE LINKAGE (SPOOL TYPE) WITH SG2 CAB

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L56932	1	Grip	(SUB FOR R52690 APPL)
2	L56933	1	Grip	(TWO SELECTIVE CONTR.VALVES) (SUB FOR R52691 APPL)
3	L57635	1	Grip	(FOR 3 SELECT.CONTROL VALVES) (SUB FOR R52692 APPL)
4	L36288	1	Stop	-
5	34M7029	2	Spring Pin	4 X 30 mm, 4X30MM
6	L38224	1	Lever	(FOR 3 SELECT.CONTROL VALVES)
7	24M7055	1	Washer	8.400 X 16 X 1.600 mm, 8.4X17X1.6MM
8	12M7056	1	Lock Washer	8 mm
9	19H1900	1	Cap Screw	5/16" X 3/4", 5/16"X3/4"
10	L38223	1	Lever	(TWO SELECTIVE CONTR.VALVES)
11	F2863R	1	Snap Ring	-
12	AL38250	1	Shaft	(TWO SELECTIVE CONTR.VALVES)
13	AL38251	1	Shaft	(FOR 3 SELECT.CONTROL VALVES)
14	R42093	1	Grommet	-
15	R50012	1	Lever	-
16	L61307	1	Spring Pin	(SUB FOR 34H313 APPL)
17	45M7065	1	Spring Locking Pin	8X32MM
18	54M4420	1	Yoke	8X32MM
19	14M7151	1	Nut	M8, M8
20	AL36407	1	Rod	(FOR 3 SELECT.CONTROL VALVES) (ORDER L38531, 56M7003, 56M7004, 14M7151)
21	AL36405	1	Rod	(TWO SELECTIVE CONTR.VALVES) (ORDER L38530, 56M7003, 56M7004, 14M7151)
22	AL40946	1	Rod	(WITH INCR.LIFTING CAPACITY) (ORDER L41782, 56M7003, 56M7004, 14M7151)
22	AL36403	1	Rod	(ORDER L38529, 56M7003, 56M7004, 14M7151)
23	AL38249	1	Shaft	-
24	L38222	1	Lever	-
25	L42073	1	Sign	-
26	L42072	1	Sign	-
27	L55027	1	Sign	(SUB FOR L40540)
28	L42074	1	Sign	-
29	L55026	1	Sign	(SUB FOR L40539)
30	AR87968	1	Shaft	(ORDER AL38249, (2) F2863R)
31	AR87970	1	Shaft	(TWO SELECTIVE CONTR.VALVES)
32	AL33446	1	Shaft	(FOR 3 SELECT.CONTROL VALVES) (ORDER AL38251, (2) F2863R)
33	L62780	1	Stud	-
34	56M7003	1	Ball Joint Socket	(ORDER W/ 56M7004)
35	56M7004	1	Ball Joint Retainer	-
36	L38531	1	Lever	(FOR 3 SELECT.CONTROL VALVES)
37	L38530	1	Lever	(TWO SELECTIVE CONTR.VALVES)
38	L38529	1	Lever	-
38	L41782	1	Lever	(WITH INCR.LIFTING CAPACITY)

SELECTIVE CONTROL VALVE LINKAGE (SPOOL TYPE) WITH SG2 CAB
