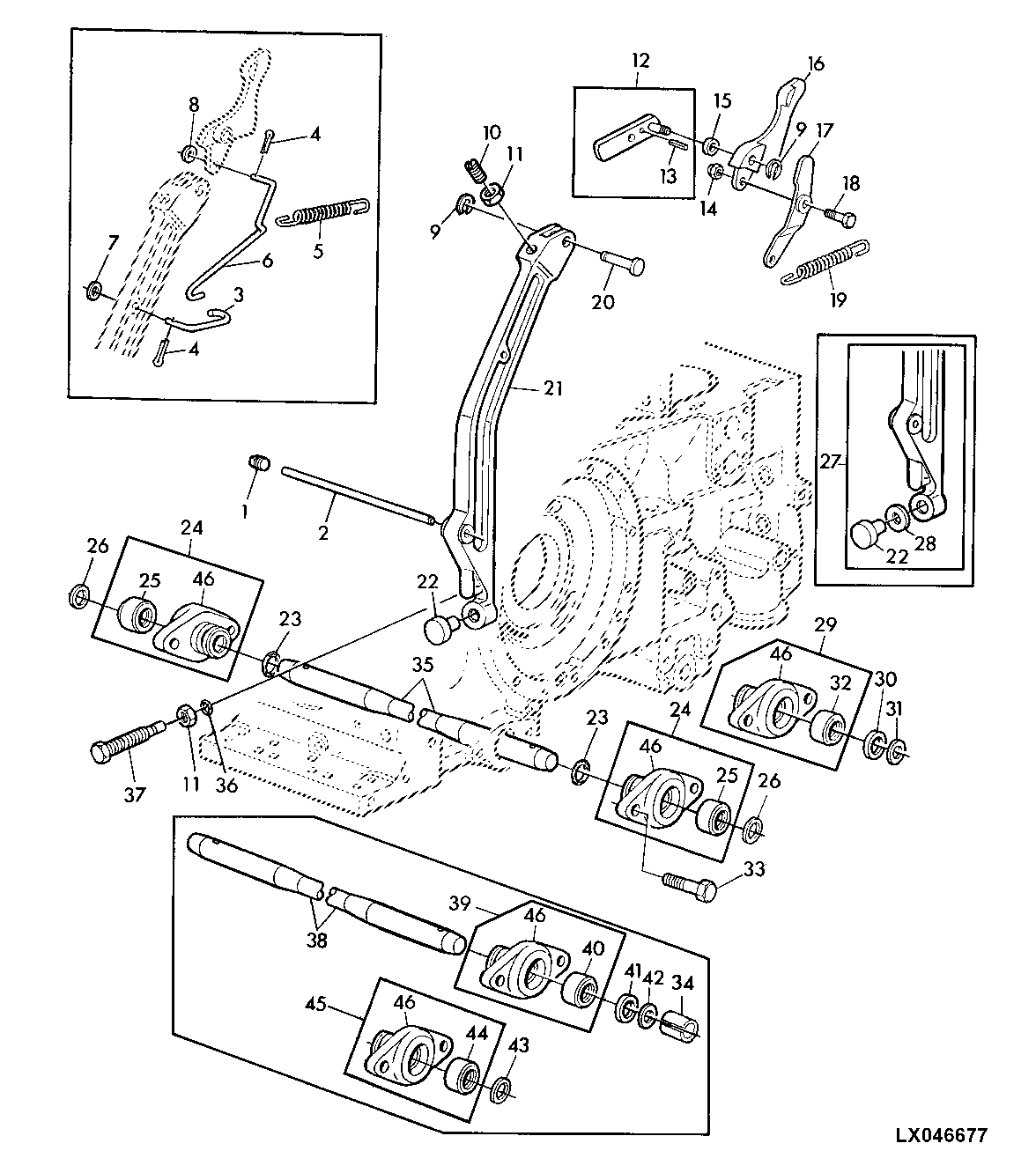

PARTS FOR LOAD CONTROL

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H604	1	Pipe Plug	1/4", 1/4"
2	T21681	1	DOWEL PIN	-
3	L34439	1	LINKAGE	(ORDER L55218, L55223, T21955, 14M7327, 19M7139)
4	11H231	2	COTTER PIN	1/16" X 1", 1/16"X1"
5	R49962	1	EXTENSION SPRING	(ORDER L55218, L55223, T21955, 14M7327, 19M7139)
6	T32355	1	SUPPORT	(ORDER L55218, L55223, T21955, 14M7327, 19M7139)
7	24H1286	1	Washer	9/32" X 1/2" X 1/16", 9/32"X1/2"X.060"
8	24H1136	1	Washer	11/32" X 11/16" X 0.065", 11/32"X11/16"X.060"
9	R72653	2	Snap Ring	(SUB FOR M2396T)
10	L56824	1	Set Screw	(SUB FOR T29311 APPL)
11	14H856	2	Nut	1/2", 1/2"
12	AL62113	1	Extension	(SUB FOR AL30092)
13	34H282	1	Spring Pin	3/16" X 1", 3/16"X1"
14	19M7139	1	Cap Screw	M8 X 20, M8X20
15	T32354	1	Washer	-
16	L55223	1	Follower	(SUB FOR L32638)
17	L55218	1	Retainer	-
18	14M7327	1	Lock Nut	M8, M8
19	T21955	1	EXTENSION SPRING	-
20	T24690	1	PIN	-
21	L59810	1	Arm	-
22	T21680	1	Pin Fastener	-
23	T19687	2	O-Ring	-
24	AL40773	2	Flange	(ORDER L41196, T28545)
25	L41196	1	Bushing	-
26	L170667	2	Sealing Washer	-
26	L41198	2	Sealing Washer	ORDER L170667; SUB FOR L55844
27	AT26575	1	Arm	(ORDER L59810, T21680)
28	24H1302	1	Washer	13/32" X 11/16" X 0.035", 13/32"X11/16"X.036"
29	AL32714	2	FLANGE	(SOUTH AFRICA VERSION) (ORDER L33865, T28545)
30	L41198	2	Sealing Washer	(SOUTH AFRICA VERSION) ORDER L170667; SUB FOR L41803
31	L41804	2	Sealing Washer	(SOUTH AFRICA VERSION)
32	L41802	1	BUSHING	(SOUTH AFRICA VERSION)
33	19H1708	4	CAP SCREW	5/8" X 1-3/4", 5/8"X1-3/4"
34	T28548	2	BUSHING	-
35	L41197	1	Load Control Shaft	(WITH INCREASED LIFTING CAPACITY) LGTH = 641MM
35	L41819	1	Load Control Shaft	LGTH = 578MM
36	A4365R	1	O-Ring	-
37	T23216	1	CAP SCREW	1/2"
38	L33903	1	SHAFT	OD= 25.4MM, (ORDER AL40978 OR AL40979)
39	AL40975	2	SHAFT	(SOUTH AFRICA VERSION) (ORDER L41802, T28545)
40	L33865	1	BUSHING	(SOUTH AFRICA VERSION)
41	L33864	2	WASHER	(SOUTH AFRICA VERSION)
42	L33863	2	WASHER	(SOUTH AFRICA VERSION)
43	L166569	2	Sealing Washer	SUB FOR L60162, L35840; ORDER L171436
43	L171436	2	O-Ring	-
44	L35841	1	Bushing	-
45	AL35762	2	Flange	(ORDER L35841, T28545)
46	T28545	1	Support	-
