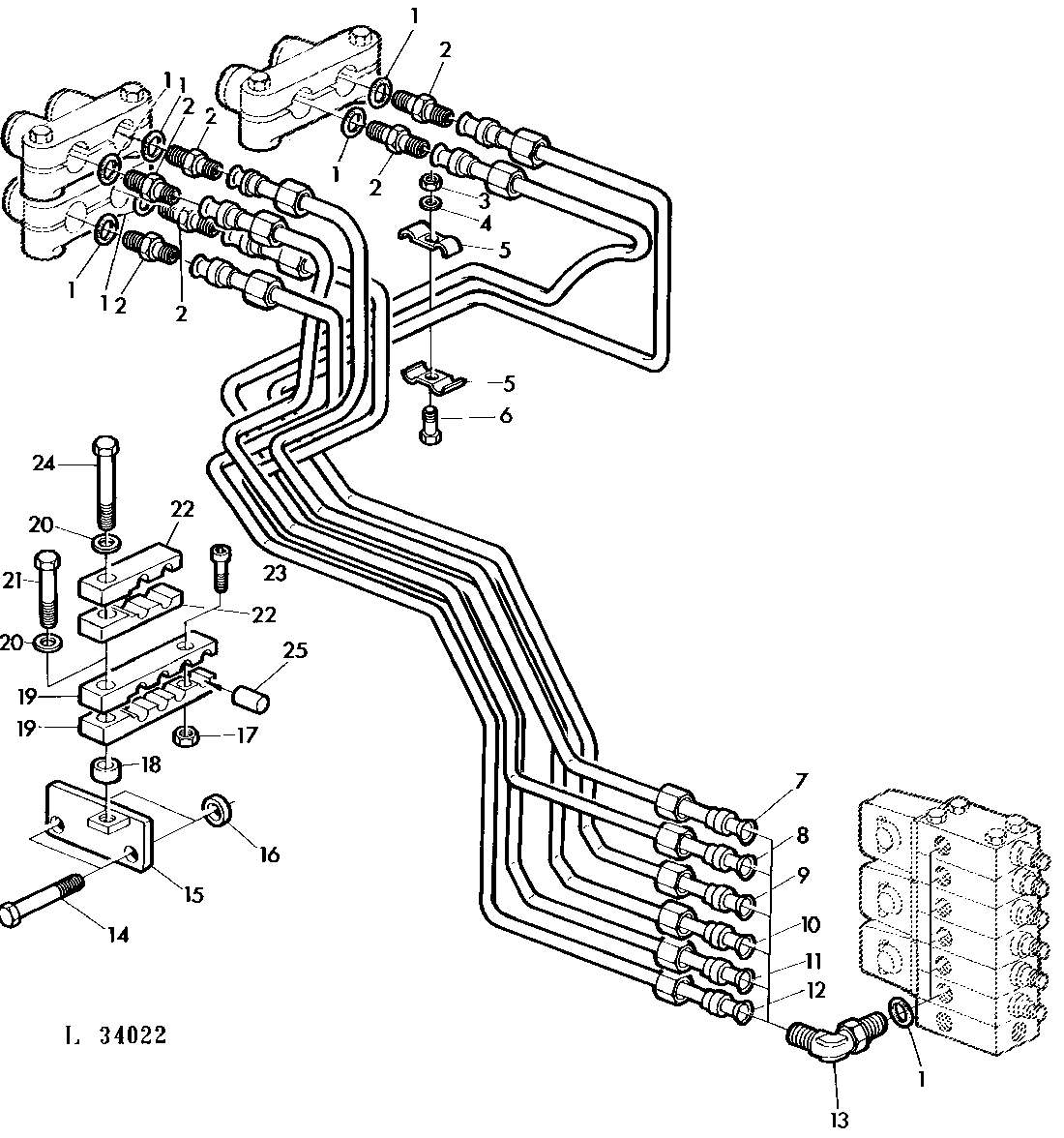

OIL LINES FOR REAR QUICK COUPLERS (SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	1	O-Ring	-
2	R27237	1	Fitting	-
3	14M7273	1	Nut	M8, M8
4	24M7036	1	Washer	9 X 16 X 1.600 mm, 9X17X1.6MM
5	R27491	2	Clamp	-
6	19M7162	1	Cap Screw	M8 X 16, M8X16
7	AL35249	1	Oil Line	(WITH 6 QUICK COUPLERS)
8	AL35248	1	Oil Line	(WITH 6 QUICK COUPLERS)
9	AL35285	1	Oil Line	-
10	AL35255	1	Oil Line	-
11	AL35245	1	Oil Line	-
12	AL35244	1	Oil Line	-
13	AR26763	1	ELBOW FITTING	3/4"
14	19H3458	2	Cap Screw	9/16" X 8-3/4", 9/16"X8-3/4"
15	AL35919	1	Holder	-
16	L33629	2	Spacer	-
17	14M7272	1	Nut	M6, M6
18	28H860	1	Washer	0.423" X 0.675" X 3/8"
19	L37519	2	Clamp	-
20	24M7028	1	Washer	10.500 X 20 X 2 mm, 10.5X21X2MM
21	19M7724	1	Cap Screw	M10 X 45, M10X45
22	L37520	2	Clamp	(WITH 6 QUICK COUPLERS)
23	19M7603	1	Screw	M6 X 20, M6X20
24	19M7385	1	Cap Screw	(WITH 6 QUICK COUPLERS) M10 X 70, M10X70
25	44M7060	1	Pin	12 X 24 mm, 12X24MM

OIL LINES FOR REAR QUICK COUPLERS (SG2 CAB)

Нет текстового описания
