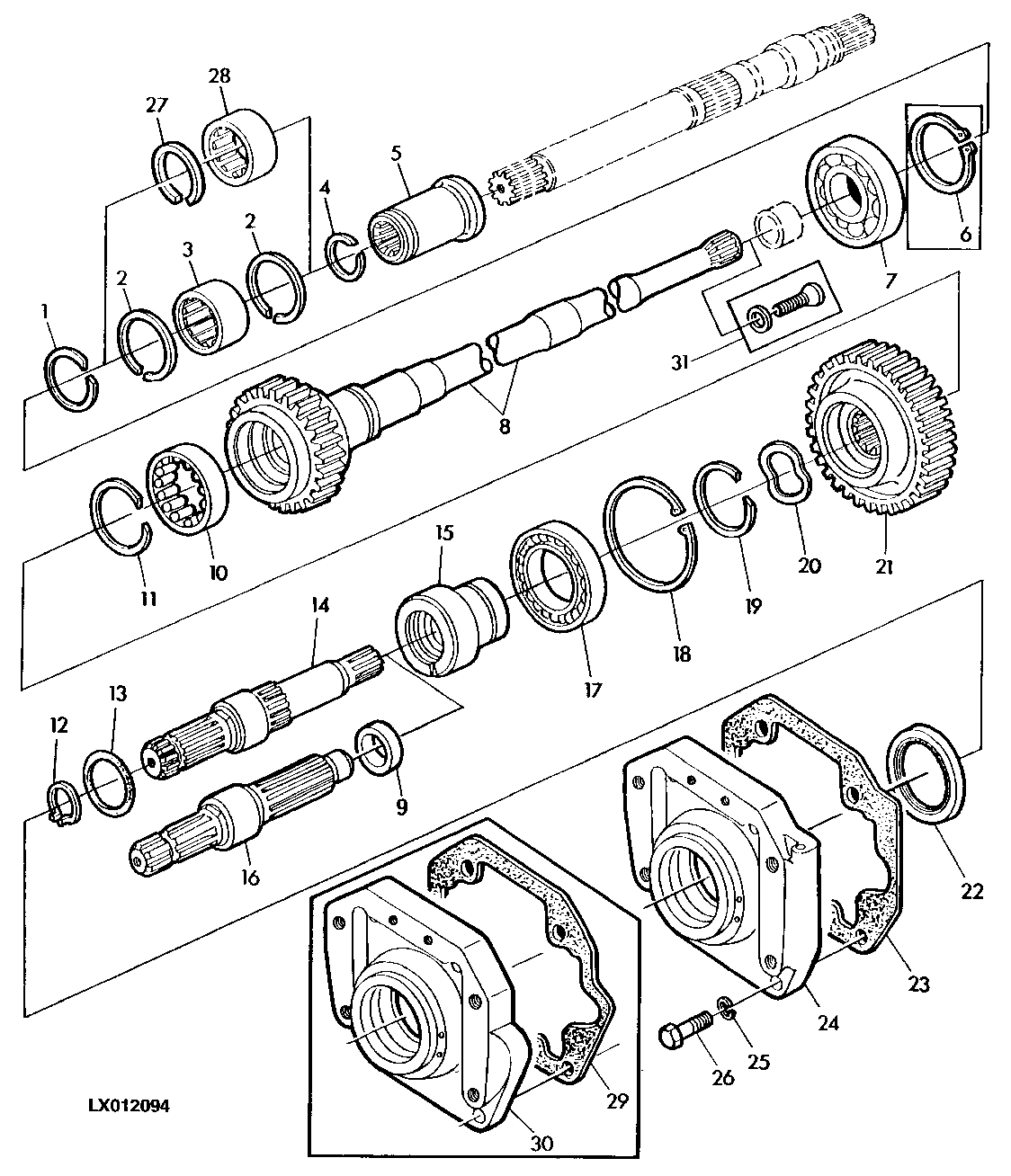

INDEPENDENT PTO 540-1000 RPM (INTERCHANGEABLE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	40M7071	1	Snap Ring	-
2	Z22760	2	Snap Ring	-
3	JD10108	1	Needle Bearing	-
4	T30766	1	Snap Ring	-
5	L33126	1	Sleeve	-
6	40M7066	1	Snap Ring	(NO LONGER REQUIRED) 55X2MM
7	JD10055	1	Cylindrical Roller Bearing	-
8	AL30885	1	Shaft	Z= 24
8	AL38962	1	DRIVE SHAFT	Z= 26
9	JD7557	1	BEARING RACE	(SUB FOR JD10283)
10	JD10282	1	Cylindrical Roller Bearing	(SUB FOR JD7537)
11	F2367R	1	SNAP RING	-
12	R129680	1	Snap Ring	(SUB FOR R38221 APPL)
13	P50631	1	O-Ring	-
14	T28672	1	SHAFT	1000U/MIN (RPM)
15	R45126	1	GUIDE	-
16	R41756	1	SHAFT	540U/MIN (RPM)
17	JD9320	1	Ball Bearing	(SUB FOR JD10056)
18	40M7178	1	Snap Ring	(SUB FOR L25837)
19	F1334R	1	SNAP RING	-
20	R38219	1	THRUST WASHER	-
21	L34129	1	Gear	Z= 31
22	AL68619	1	Seal	(SUB FOR AT16431)
23	L60548	1	Gasket	-
24	L60547	1	Bearing Cap	(ORDER AL67452)
25	12H301	4	Lock Washer	1/2"
26	19H1721	4	CAP SCREW	1/2" X 1-1/2", 1/2"X1-1/2"
27	L33745	1	Snap Ring	(WITH FRONT WHEEL DRIVE)
28	JD10071	1	Needle Bearing	(WITH FRONT WHEEL DRIVE)
29	L29268	1	Gasket	-
30	L34128	1	Bearing Housing W/O Bearing	(ORDER AL67452, 99M6934)
31	AL68461	1	Converter Kit	(WITH FRONT WHEEL DRIVE)

INDEPENDENT PTO 540-1000 RPM (INTERCHANGEABLE)
