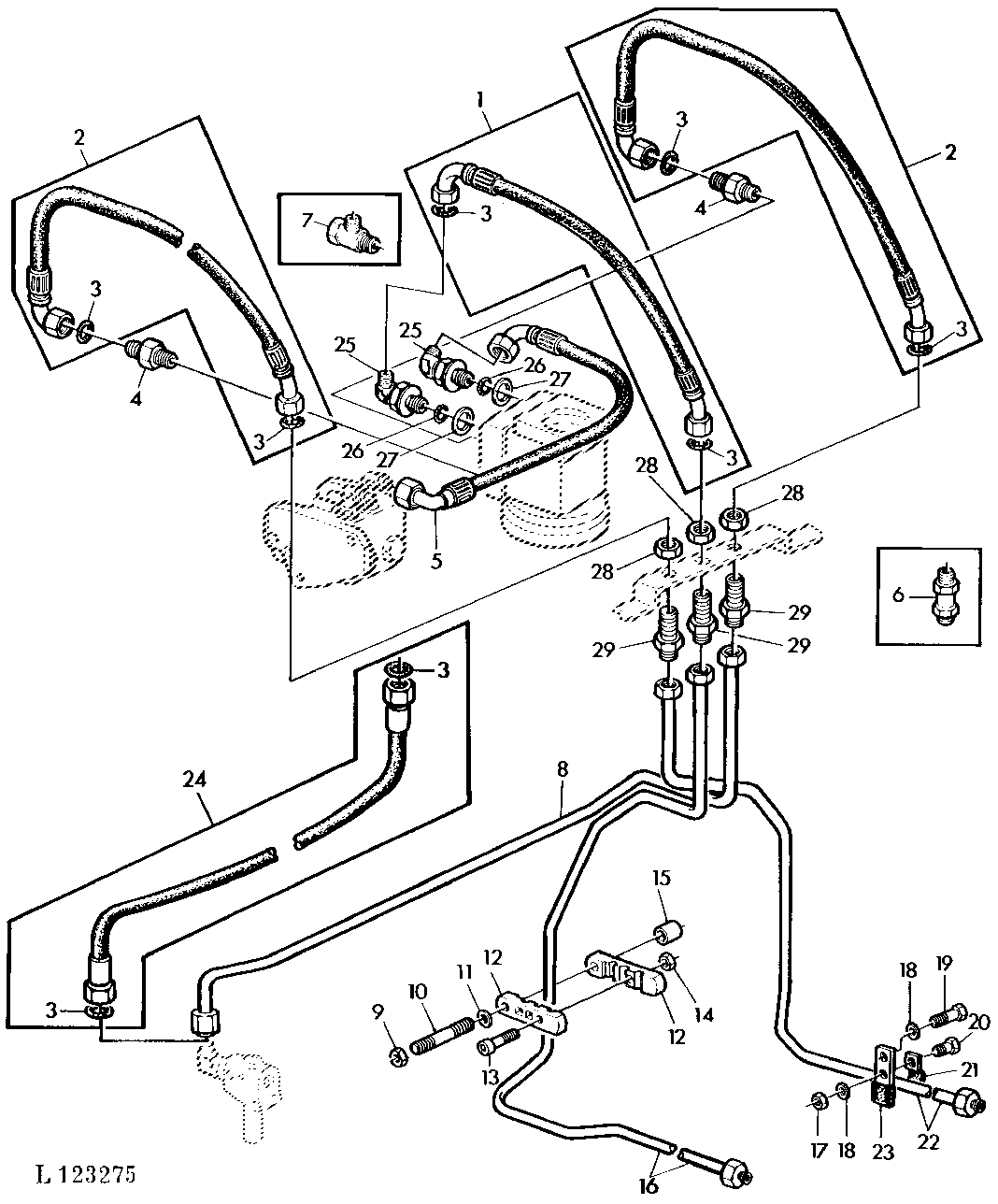

HYDROSTATIC STEERING WITH TWO STEERING CYLINDERS (SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL35437	1	Hydraulic Hose	-
2	AL35438	2	Hydraulic Hose	-
3	Z27993	1	O-Ring	-
4	L34371	2	Fitting	(SUB FOR L38680)
5	AL35000	1	Hydraulic Hose	-
6	AL32895	3	Union Fitting	(ORDER L63538, 14M7477)
7	AL39862	2	Elbow Fitting	(SUB FOR AL31412) (ORDER AL41290, L62122, 51M7033)
8	AL35258	1	Oil Line	-
9	14H1076	1	Nut	3/8", 3/8"
10	19H1944	1	Cap Screw	SUB FOR APPL AL38319
11	24H1305	1	Washer	13/32" X 13/16" X 0.065", 13/32"X13/16"
12	L37549	2	Clamp	-
13	19M7966	1	Screw	M6 X 25, M6X25
14	14M7272	1	Nut	M6, M6
15	28H1697	1	Spacer	0.493" X 0.675" X 3/4", 3/8"X.75"
16	AL35259	1	Oil Line	-
17	14M7275	1	Nut	M12, M12
18	24M7145	2	Washer	15 X 24 X 2.500 mm, M15
19	19H2353	1	Cap Screw	9/16" X 1", 9/16"X1"
20	19M7386	1	Cap Screw	M12 X 20, M12X20
21	L28744	1	Clamp	(SUB FOR R28538)
22	AL35264	1	Oil Line	-
23	L37268	1	Strap	-
24	AL36521	1	Hydraulic Hose	(WITH OIL RETURN FILTER)
25	AL41290	2	Elbow Fitting	-
26	51M7033	2	O-Ring	15.100 X 2.700 mm
27	L62122	2	Washer	-
28	14M7477	3	Nut	M18, M18X1.5
29	L63538	3	Union Fitting	-

HYDROSTATIC STEERING WITH TWO STEERING CYLINDERS (SG2 CAB)
