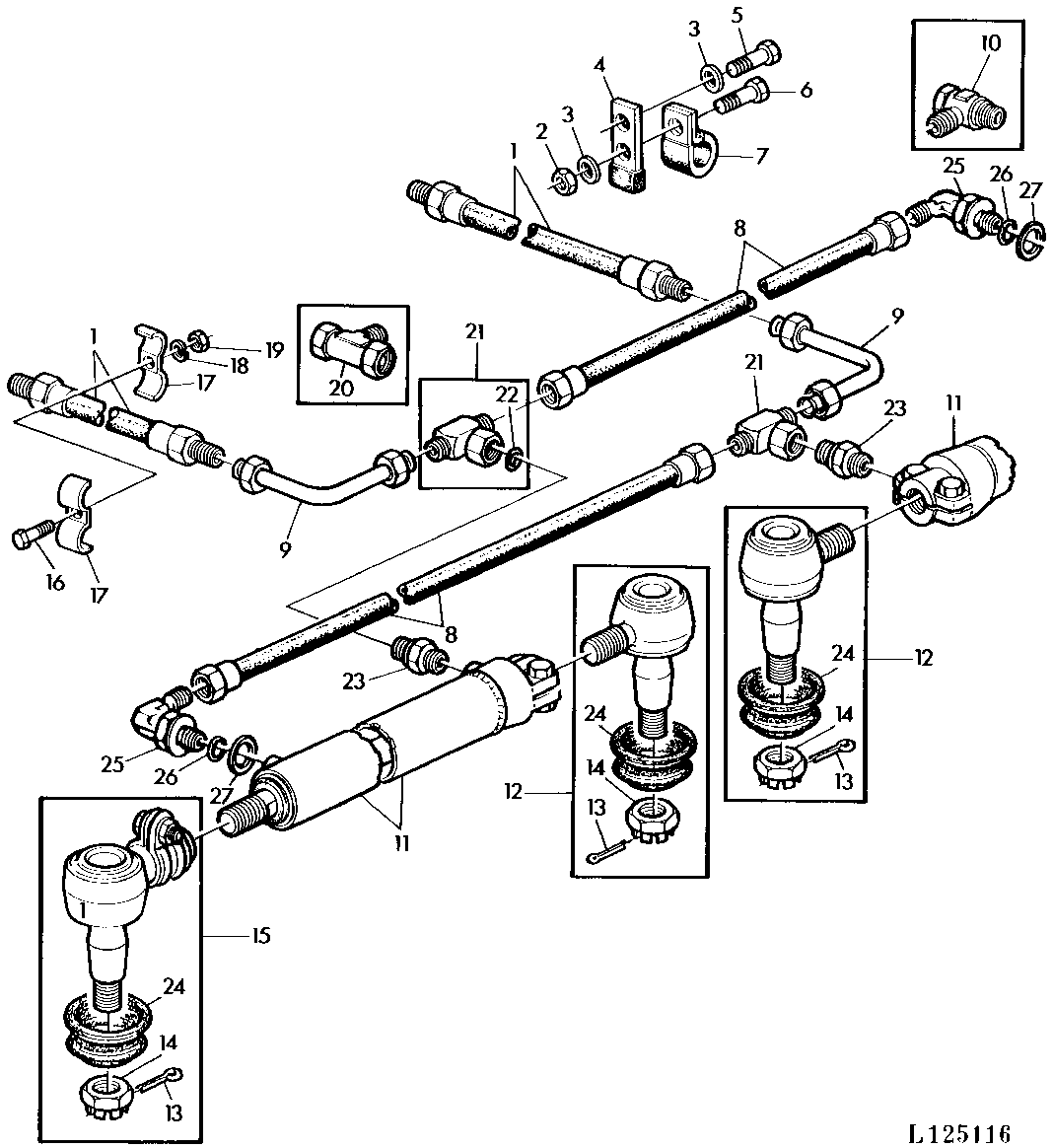

HYDROSTATIC STEERING WITH TWO DOUBLE-ACTING CYLINDERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL31417	2	Hydraulic Hose	-
2	14M7275	1	Nut	M12, M12
3	24M7145	2	Washer	15 X 24 X 2.500 mm, 15MM
4	L37268	1	Strap	-
5	19H2353	1	Cap Screw	9/16" X 1", 9/16"X1"
6	19M7386	1	Cap Screw	M12 X 20, M12X20
7	T28949	1	Clamp	-
8	AL35433	2	Hydraulic Hose	-
9	AL37134	2	Oil Line	-
10	AL39862	2	Elbow Fitting	(SUB FOR AL31412) (ORDER AL41290, L62122, 51M7033)
11	AL35552	2	Hydraulic Cylinder	ORDER AL178013, AL70998
11	AL70998	2	Hydraulic Cylinder	INCLUDES AL71036, L65398
12	AL35551	2	Ball Joint	ORDER AL178014
12	AL178014	2	Ball Joint	-
13	11M7030	4	Cotter Pin	5 X 40 mm
14	14M7181	4	Nut	M24, 24X1.5MM
14	14M7174	4	LOCK NUT	M24, USE WITH AL178013, AL178014
15	AL35550	2	Ball Joint	ORDER AL178013
15	AL178013	2	Ball Joint	-
16	19H1849	1	Cap Screw	5/16" X 1-1/4", 5/16"X1-1/4"
17	R46919	2	Half Clamp	-
18	12M7056	1	Lock Washer	8 mm
19	14H785	1	Nut	5/16", 5/16"
20	AZ22525	2	TEE FITTING	(ORDER (2) AL37132, (2) AL37134)
21	AL37132	2	Tee Fitting	-
22	R78436	2	O-Ring	-
23	L34371	2	Fitting	-
24	R78027	4	Cover	-
24	AL177978	4	Boot	USE WITH AL178013, AL178014
25	AL41290	2	Elbow Fitting	-
26	51M7033	2	O-Ring	15.100 X 2.700 mm
27	L62122	2	Washer	-
28	AL71036	2	Seal Kit	(Not Illustrated)
29	L65398	2	Rod	(Not Illustrated)

HYDROSTATIC STEERING WITH TWO DOUBLE-ACTING CYLINDERS
