HYDROSTATIC STEERING UNIT W/TWO STEERING CYLINDERS (SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL35010	1	Steering Control Unit	(WITH FRONT WHEEL DRIVE) DANFOSS OSPB 160CN 150-0168 (ORDER AL58138)
1	AL35012	1	Steering Control Unit	DANFOSS OSPB 100CN 150-0167
2	P47908	4	O-Ring	-
3	AL38398	1	Valve Stack	(SUB FOR AL34998)
4	19M7661	2	SCREW	M10 X 40, M10X1X40
5	Z31348	1	Seal	(ORDER AL112819)
6	Z31452	1	O-Ring	(ORDER AL112819)
7	Z31455	1	Back-Up Ring	(ORDER AL112819)
8	Z31351	1	Thrust Washer	NSEP (ORDER AL36989)
9	AZ20006	1	Thrust Bearing	NSEP (ORDER AL36989)
10	Z31352	1	Thrust Washer	NSEP (ORDER AL36989)
11	AL36989	1	Thrust Bearing	-
12	Z31353	1	Ring	-
13	AZ25154	1	Machine Tool	KIT
14	Z31354	1	Pin Fastener	-
15	Z31456	7	Washer	(ORDER AL112819)
16	19M7698	6	Cap Screw	M8 X 40, M8X1X40
16	19M7925	6	Cap Screw	(WITH FRONT WHEEL DRIVE) M8 X 45, M8X1X45
17	L32710	1	Medallion	-
18	Z31364	2	Screw	-
19	L32709	1	Cap Screw	M8X1X40
19	L36308	1	Cap Screw	(WITH FRONT WHEEL DRIVE) M8X1X45
20	Z31360	1	Spring Pin	-
21	L39146	1	Piston	NSEP (ORDER AL68083)
22	Z31454	2	O-Ring	(ORDER AL112819)
23	AL28272	1	STEERING METERING PUMP	NSEP (ORDER AL69627)
23	AL32778	1	Gear	(WITH FRONT WHEEL DRIVE) NSEP (ORDER AL69629)
24	Z31358	1	DISTRIBUTOR PLATE	NSEP (ORDER AL68083)
25	Z31453	1	O-Ring	(ORDER AL112819)
26	L32708	1	SHIM	-
26	L36307	1	Shim	(WITH FRONT WHEEL DRIVE)
27	Z31356	1	DRIVE SHAFT	NSEP (ORDER AL69627 OR AL69629)
28	Z31350	1	Pipe Plug	-
29	Z31349	1	Ball	8.5MM
30	AL68083	1	Distributor Plate	-
31	AL69627	1	Gear	-
31	AL69629	1	Gear	(WITH FRONT WHEEL DRIVE)

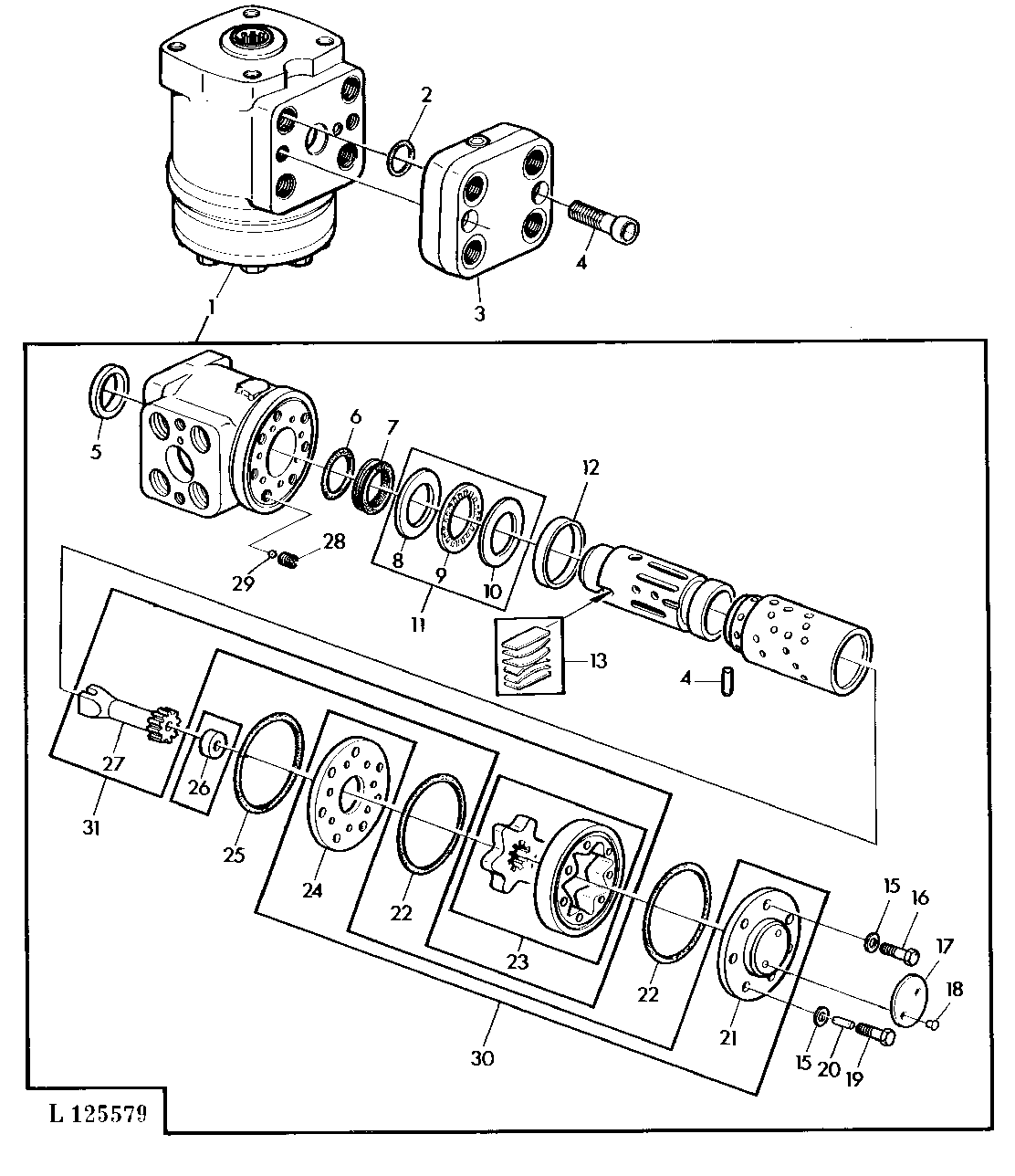

HYDROSTATIC STEERING UNIT W/TWO STEERING CYLINDERS (SG2 CAB)
