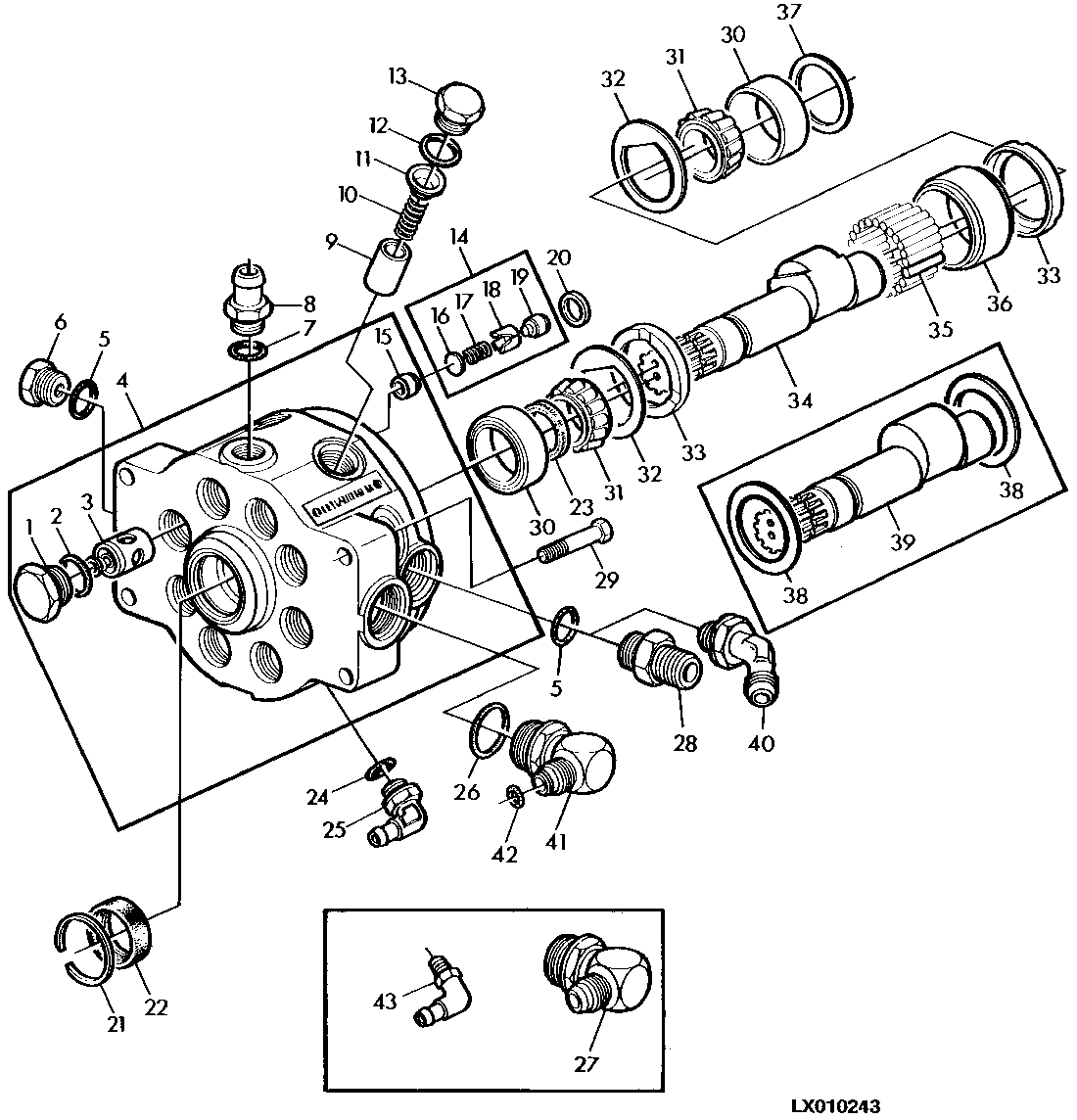

HYDRAULIC PUMP (40CM3=2.4 CU.IN.) MODEL NO. EA1

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78293	8	FITTING	-
2	R27149	8	O-Ring	-
3	AR53301	8	VALVE	-
4	RE11804	1	Housing	(MARKED R73741 OR R83507)
5	U12547	2	O-Ring	(SUB FOR F3171R APPL)
6	R27175	1	Drain Plug	1-1/16"
7	R26906	1	O-Ring	-
8	R39215	1	Fitting	-
9	R27150	8	PISTON	-
10	R62372	8	Spring	(SUB FOR AR76762)
11	AR101236	1	SHIELD	KIT (8) (SUB FOR R56749)
12	R56463	8	O-Ring	-
13	R45438	8	Fitting	-
14	RE23382	8	Valve	(SUB FOR AR96613)
15	R105583	8	Valve Seat Insert	(SUB FOR R39067)
16	R49297	1	DISK	-
17	R39228	1	SPRING	-
18	R48738	1	GUIDE	-
19	R83508	1	Stop	(SUB FOR R72886)
20	R107239	8	Packing	(SUB FOR R69279)
21	R26137	1	Snap Ring	-
22	RE28790	1	SEAL	(SUB FOR AR52224)
23	R77611	1	SEALING WASHER	(SUB FOR R68252, RE11777)
24	R26287	1	O-Ring	-
25	AL28468	1	Elbow Fitting	-
26	U13639	1	O-Ring	-
27	AL39129	1	Elbow Fitting	(SUB FOR AR39071) (ORDER AL59809, L58310)
28	R36075	1	Fitting	-
29	19H1974	4	Cap Screw	1/2" X 2-3/4", 1/2"X2-3/4"
30	JD8223	2	Bearing Cup	-
31	JD8192	2	BEARING CONE	-
32	R79151	2	Lock Washer	-
33	R72507	2	Thrust Washer	-
34	R79150	1	Shaft	-
35	R116712	25	Needle Roller	(SUB FOR R77904, R45422)
36	R80558	1	Bearing Race	(SUB FOR R72506)
37	R27478	1	SHIM	TK= 0.15MM (.006")
37	R27479	1	SHIM	TK= 0.25MM (.010")
38	R77903	2	WASHER	(SUB FOR R45425)
39	R73228	1	Shaft	(ORDER R79150, (2) R79151)
40	AL37977	1	Elbow Fitting	(WITH INCREASED LIFTING CAPACITY)
41	AL59809	1	Elbow Fitting	-
42	L58310	1	O-Ring	-
43	L63540	1	Fitting	(ORDER AL28468, R26287)

HYDRAULIC PUMP (40CM3=2.4 CU.IN.) MODEL NO. EA1
