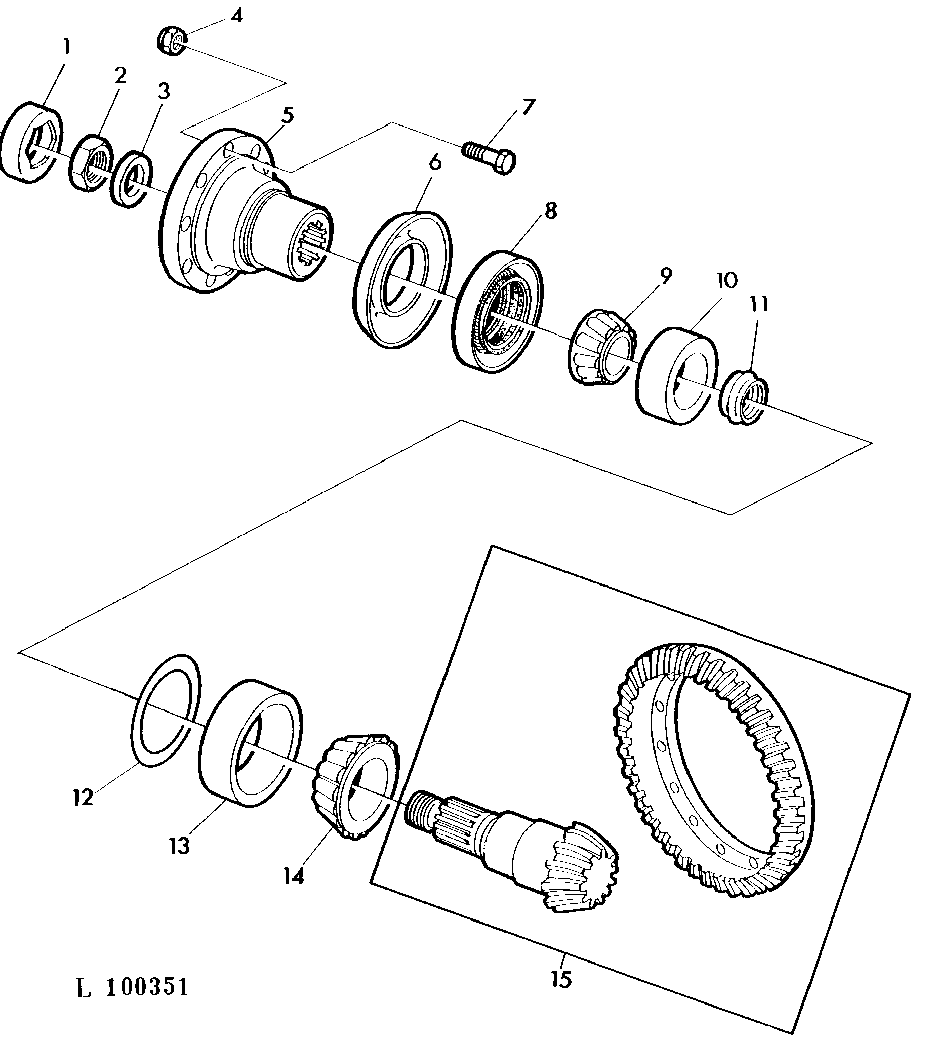

FWD-DRIVE ELEMENTS (INPUT) APL 345/350

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L55604	1	Lock Plate	(WITH INCREASED LIFTING CAPACITY)
1	L35715	1	Plate	-
2	14M7309	1	Nut	M24, M24X1.5
2	L55605	1	Nut	(WITH INCREASED LIFTING CAPACITY)
3	L35714	1	Washer	-
4	14M7308	8	Lock Nut	M10, M10X1
5	L35716	1	Flange	-
5	L41102	1	Flange	(WITH INCREASED LIFTING CAPACITY)
6	L39992	1	Guard	-
7	L35718	8	Cap Screw	M10X1X28
7	L39763	8	Cap Screw	(WITH U.J.DRIVE SHAFT BRAKE) M10X1X45
8	AL32981	1	Seal	-
9	AR94761	1	Bearing Cone	(SUB FOR JD8947)
10	JD8257	1	Bearing Cup	-
11	L35712	1	Bushing	-
12	L100592	1	Washer	TK= 0.80MM
12	L40993	1	Washer	(WITH INCREASED LIFTING CAPACITY) TK= 1.55MM
12	L40992	1	Washer	(WITH INCREASED LIFTING CAPACITY) TK= 1.50MM
12	L40991	1	Washer	(WITH INCREASED LIFTING CAPACITY) TK= 1.45MM
12	L40984	1	Washer	TK= 1.1MM
12	L40989	1	Washer	(WITH INCREASED LIFTING CAPACITY) TK= 1.35MM
12	L40988	1	Washer	(WITH INCREASED LIFTING CAPACITY) TK= 1.30MM
12	L40987	1	Washer	(WITH INCREASED LIFTING CAPACITY) TK= 1.25MM
12	L55610	1	Washer	(WITH INCREASED LIFTING CAPACITY) TK= 0.85MM
12	L55608	1	Shim	(WITH INCREASED LIFTING CAPACITY) TK= 0.75MM
12	L55607	1	Shim	(WITH INCREASED LIFTING CAPACITY) TK= 0.70MM
12	L55606	1	Shim	(WITH INCREASED LIFTING CAPACITY) TK= 0.65MM
12	L100592	1	Washer	TK= 1.60MM, SUB FOR L40994
12	L55607	1	Shim	TK= 1.40MM, SUB FOR L40990
12	L40986	1	Washer	TK= 1.20MM
12	L40985	1	Washer	TK= 1.15MM
12	L40983	1	Washer	TK= 1.05MM
12	L40982	1	Washer	TK= 1.0MM
12	L40996	1	Washer	TK= 0.95MM
12	L40995	1	Washer	TK= 0.90MM
13	JD8236	1	Bearing Cup	-
14	JD8901	1	Bearing Cone	-
15	AL38032	1	GEAR	Z= 19/42
15	AL56114	1	Assembly Line Parts	(WITH INCREASED LIFTING CAPACITY) NLA

FWD-DRIVE ELEMENTS (INPUT) APL 345/350
