FRONT WHEEL DRIVE-KNUCKLE HOUSING (APL 1552)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7770	6	Screw	M14 X 50, M14X50
2	L35765	1	Arm	RH
2	L37864	1	Arm	(WITH TWO STEERING CYLINDERS) LH
2	L37863	1	Arm	(WITH TWO STEERING CYLINDERS) RH
3	L35752	1	Washer	TK= 2.6MM
3	L35751	1	Washer	TK= 2.7MM
3	L35758	1	Washer	TK= 2.75MM
3	L35750	1	Washer	TK= 2.8MM
3	L35757	1	Washer	TK= 2.85MM
3	L35749	1	Washer	TK= 2.9MM
3	L35756	1	Washer	TK= 2.95MM
3	L35748	1	Washer	TK= 3.0MM
3	L35755	1	Washer	TK= 3.05MM
3	L35747	1	Washer	TK= 3.1MM
3	L35754	1	Washer	TK= 3.15MM
3	L35746	4	Washer	TK= 3.2MM
3	L35753	1	Washer	TK= 3.3MM
4	L35745	4	Kingpin	-
5	AL38756	2	Seal	(SUB FOR AL32996)
6	L35738	2	Bushing	-
7	L35741	1	Knuckle	RH
7	L35740	1	Knuckle	LH
8	L35744	2	Cover	-
9	58M5577	2	Lubrication Fitting	8X1MM
10	19M7878	8	Screw	M14 X 35, M14X35
11	L36647	2	Bolt	REAR
11	L36648	2	Bolt	FRONT
12	L32912	1	Washer	-
13	L36650	2	Spacer	FRONT
13	L36649	2	Spacer	REAR
14	L35743	1	Cover	LH
15	19M7392	4	Cap Screw	M14 X 35, M14X35
16	L36579	1	EXTENSION	RH
16	L36578	1	Extension	LH
17	58M5574	2	Lubrication Fitting	8X1MM

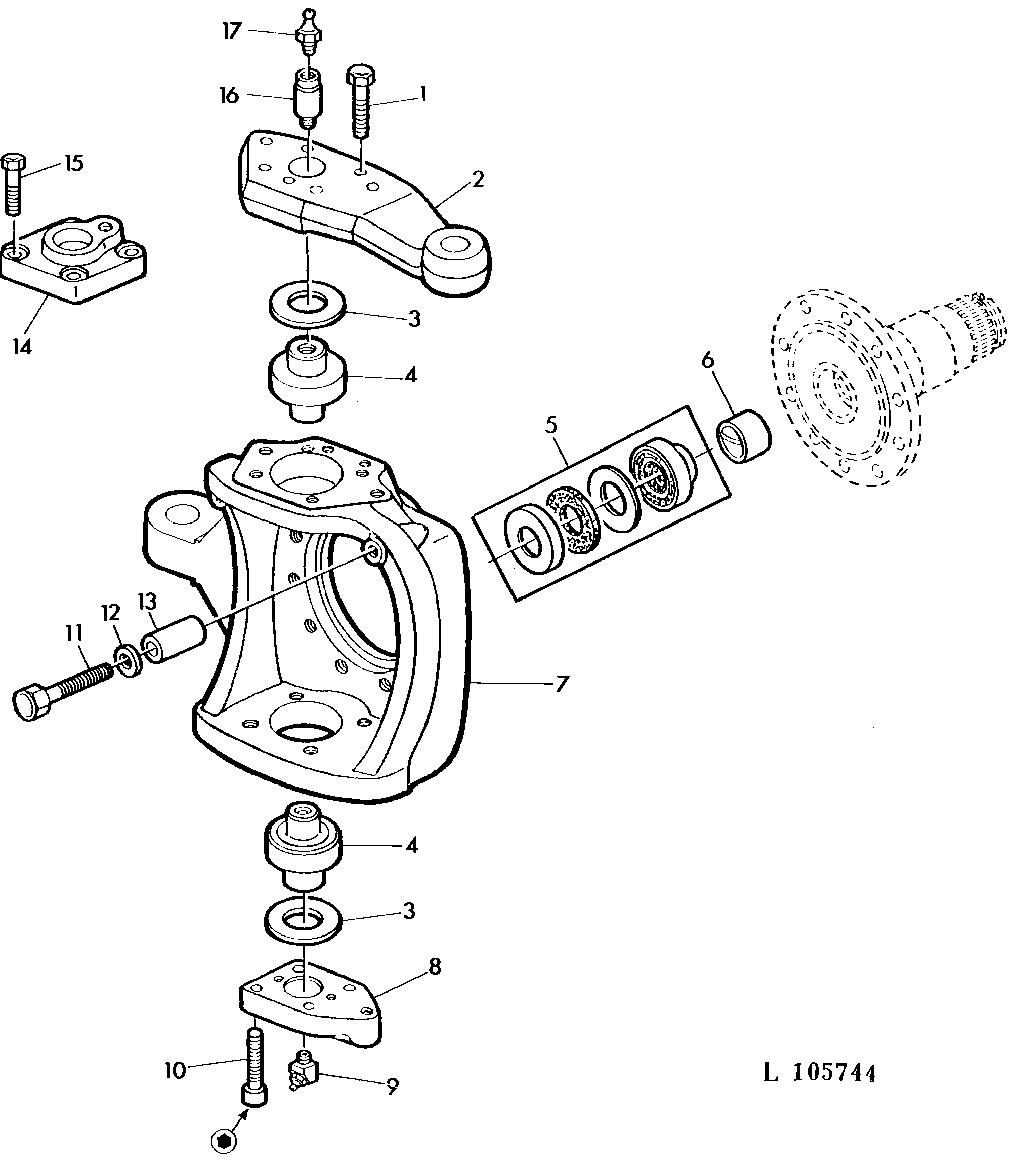

FRONT WHEEL DRIVE-KNUCKLE HOUSING (APL 1552)

Нет текстового описания
