FRONT DOOR WINDSHIELD WIPER/REAR WIPER WITH BRACKET

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL35843	1	Wiper Motor	-
2	37M7089	1	Screw	M6 X 12, M6X12
3	L38523	1	Cap	-
4	L37275	2	Washer	-
5	L37274	1	Washer	-
6	L37276	1	Nut	-
7	L38810	1	Boot	(FOR L39240)
7	L56571	1	Grommet	(FOR L57986)
7	L37277	1	Cap	(WITH REAR WINDSHIELD WIPER)
8	12M7093	1	Washer	8MM
9	14M7273	1	Nut	M8, M8
10	AL36393	1	Wiper Blade	-
10	AL153660	1	Wiper Blade	(WITH REAR WINDSHIELD WIPER) (SUB FOR AL34845)
11	L39960	1	Clamp	-
12	L38533	1	Screw	-
13	24M7117	1	Washer	4.300 X 9 X 0.800 mm, 4.3X9X0.8MM
14	12M7075	1	Washer	5.300 X 11 X 0.500 mm, 5MM
15	14M7359	1	Lock Nut	M4, M4
16	AL36392	1	Wiper Arm	-
17	AL36557	1	Lever	-
18	L38600	1	Tube	-
19	T22085	2	BUMPER	(WITH REAR WINDSHIELD WIPER)
20	21H1410	2	Screw	(WITH REAR WINDSHIELD WIPER) 1/4" X 1", 1/4"X1"
21	AL37410	1	Bracket	(WITH REAR WINDSHIELD WIPER)
22	L39802	1	Grommet	(WITH REAR WINDSHIELD WIPER)
23	AL37454	1	Wiring Harness	(WITH REAR WINDSHIELD WIPER)
24	AL37429	1	Toggle/Rocker Switch	(WITH REAR WINDSHIELD WIPER)
25	57M7102	1	Bulb	(WITH REAR WINDSHIELD WIPER)
26	AL36535	1	Socket	(WITH REAR WINDSHIELD WIPER)
27	L39638	1	Insert	(WITH REAR WINDSHIELD WIPER)
28	24M7054	4	Washer	(WITH DOOR, RIGHT HAND) 6.400 X 12 X 1.600 mm
29	37M7087	1	Screw	(WITH REAR WINDSHIELD WIPER) M10 X 25, M10X25

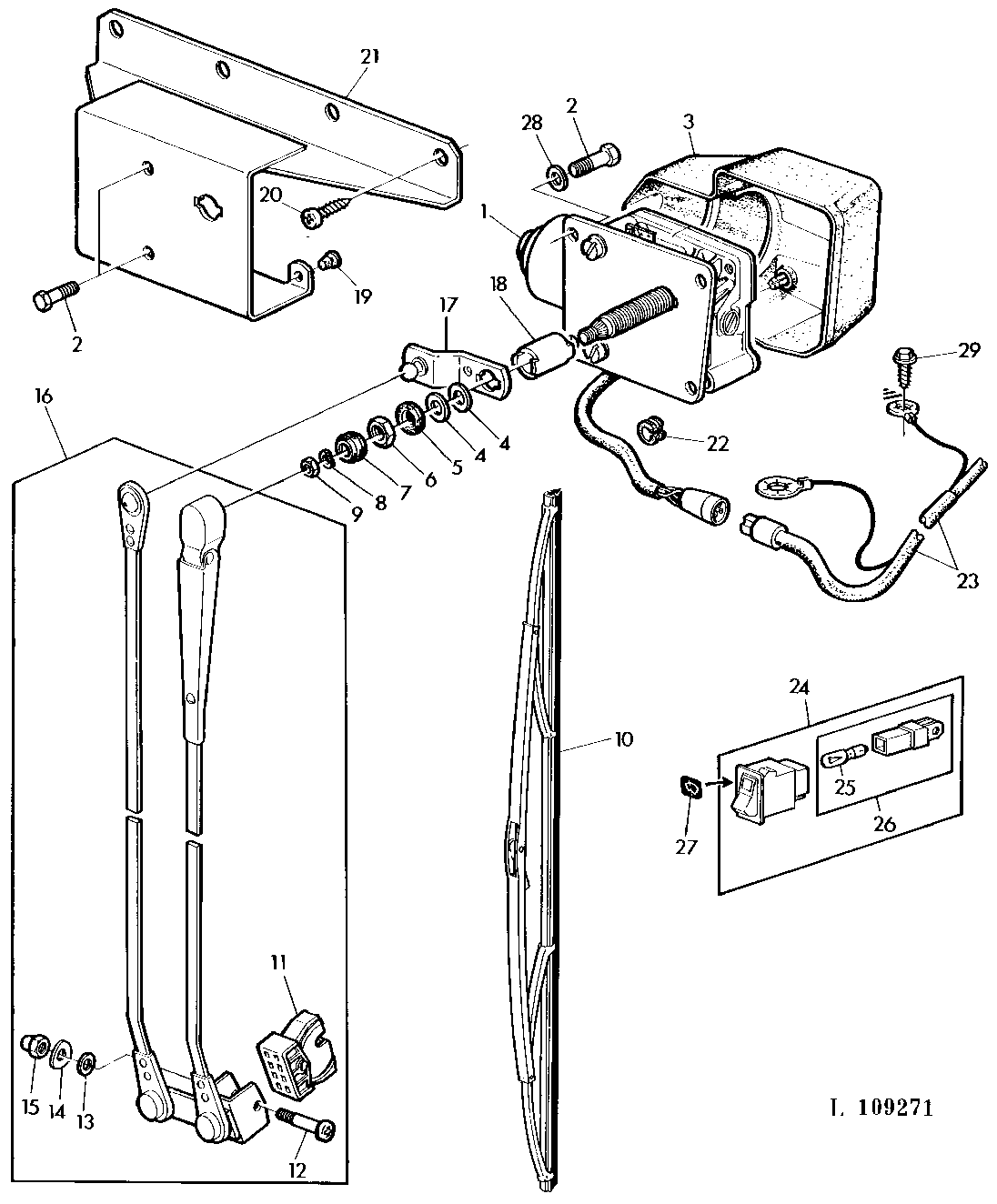

FRONT DOOR WINDSHIELD WIPER/REAR WIPER WITH BRACKET
