Chassis Wiring Harness, IT4 (4/4)

Chassis Wiring Harness, IT4 (4/4)

Chassis Wiring Harness, IT4 (4/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

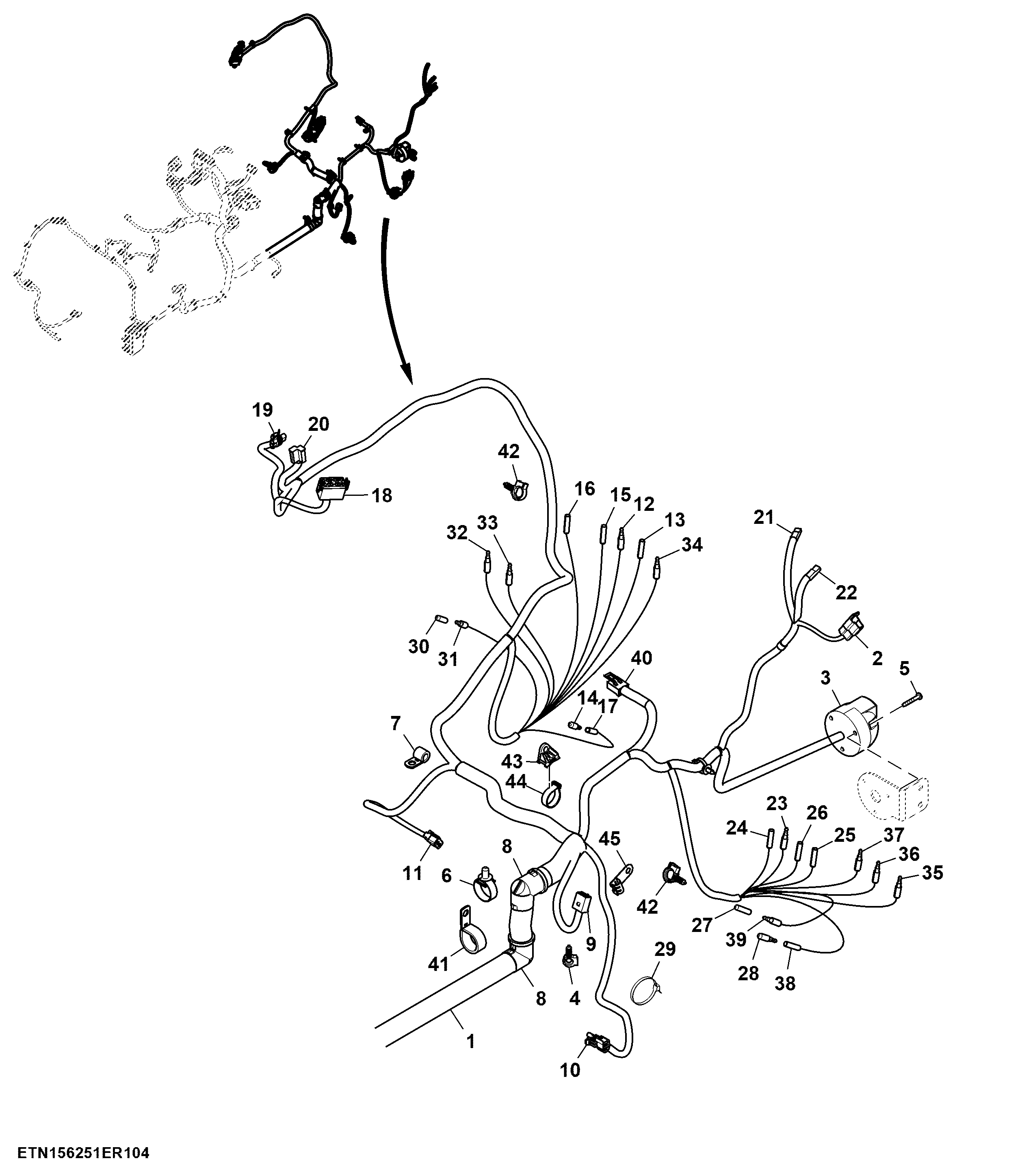

Chassis Wiring Harness, IT4 (4/4)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LVA23314	1	Wiring Harness	Chassis
2	T28586	1	Electrical Connector Assy	Licence Plate Lamp, XE15
2	57M10785	1	Elec. Connector Terminal	Cavity A
2	57M11323	1	Elec. Connector Terminal	Cavity B
3	AZ13378	1	Socket Outlet	Trailer Socket, X25
4	57M8903	3	Clip	-
5	37M7077	3	Screw	-
6	57M10630	2	Clip Kit	-
7	57M12128	1	Clamp	-
8	57M10192	2	Elec. Connector Accessory	-
9	T24167	1	Electrical Connector Assy	Park Brake Switch, XS39
9	57M9199	2	Elec. Connector Terminal	Cavity A, C
10	57M9219	2	Elec. Connector Seal	Cavity A, B
10	57M7251	2	Elec. Connector Terminal	Cavity A, B
10	RE12363	1	Electrical Connector Assy	Transmission Neutral Switch, XS04
11	57M10517	1	Elec. Connector Housing	Rear PTO Solenoid, XY03
11	57M8022	1	Elec.Connect Locking Device	-
11	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
12	57M10963	1	Elec. Connector Terminal	XE04_5
13	57M10962	1	Elec. Connector Terminal	XE04_7
14	57M10963	1	Elec. Connector Terminal	Work Light, XE06_1, RH
15	57M10962	1	Elec. Connector Terminal	Turn Hazard, XE04_4, RH
16	57M10962	1	Elec. Connector Terminal	ROPS Lamp, XE04_3, RH
17	57M10962	1	Elec. Connector Terminal	Work Light, XE06_1, RH
18	57M13436	1	Elec. Connector Housing	PTO Switch, XS03
18	57M7511	7	Elec. Connector Terminal	Cavity 1, 2, 4, 7, 8, 9, 10
19	57M9215	1	Elec. Connector Seal	Cavity A
19	57M7258	1	Elec. Connector Seal	Cavity B
19	57M10770	2	Elec. Connector Terminal	Cavity A, B
19	57M9712	1	Elec. Connector Accessory	-
19	57M7256	1	Elec. Connector Housing	-
19	57M7254	1	Elec. Connector Housing	Interconnect to Cruise, X03_W03
19	57M7259	2	Elec. Connector Seal	-
20	57M8812	1	Elec. Connector Housing	12 V, Output, XG03
20	57M9200	2	Elec. Connector Terminal	Cavity A, B
21	57M7170	1	Elec. Connector Housing	Fuel Tank Ground, W01_00S4
21	57M11588	1	Elec. Connector Terminal	Cavity A
22	57M7170	1	Elec. Connector Housing	Fuel Filler Cap Ground, W01-00S3
22	57M11588	1	Elec. Connector Terminal	Cavity A
23	57M10963	1	Elec. Connector Terminal	Brake Light, XE03_2, LH
24	57M10962	1	Elec. Connector Terminal	ROPS Lamp, XE03_1, LH
25	57M10962	1	Elec. Connector Terminal	XE03_7
26	57M10962	1	Elec. Connector Terminal	ROPS Lamp, XE03_3, LH
27	57M10962	1	Elec. Connector Terminal	Work Light, XE05_2, LH
28	57M10963	1	Elec. Connector Terminal	Work Light, XE05_1, LH
29	R105388	1	Tie Band	-
30	57M10962	1	Elec. Connector Terminal	Work Light, XE06_2, RH
31	57M10963	1	Elec. Connector Terminal	Work Light, XE06_2, RH
32	57M10963	1	Elec. Connector Terminal	ROPS Lamp, XE04_1, RH
33	57M10963	1	Elec. Connector Terminal	Brake Light, XE04_2, RH
34	57M10963	1	Elec. Connector Terminal	XE04_6
35	57M10963	1	Elec. Connector Terminal	XE03_6
36	57M10963	1	Elec. Connector Terminal	XE03_5
37	57M10963	1	Elec. Connector Terminal	Turn Hazard, XE03_4, LH
38	57M10962	1	Elec. Connector Terminal	Work Light, XE05_1, LH
39	57M10963	1	Elec. Connector Terminal	Work Light, XE05_2, LH
40	57M7974	1	Electrical Connector Assy	Seat Switch, XS38
40	57M9199	2	Elec. Connector Terminal	Cavity A, B
41	57M13312	2	Clamp	-
42	57M8902	7	Clip	-
43	H226339	2	Clamp	-
44	H224073	2	Tie Band	-
45	57M9435	1	Clamp	-
