Steering Control and Steering Lines, Heavy Duty Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ17082	1	Pipe	-
2	SJ29676	1	Hydraulic Hose	RH
3	SJ29686	1	Hydraulic Hose	LH
4	L169919	4	Clamp	-
5	T77613	2	O-Ring	-
6	T77814	10	O-Ring	-
7	19M7865	6	Screw	M8 X 16
8	T77857	4	O-Ring	-
9	38H5017	1	Elbow Fitting	-
10	51M7043	2	O-Ring	15.300 X 2.200 mm
11	R224342	6	Screw	-
12	38H1003	2	Elbow Fitting	-
13	SJ29668	1	Oil Line	LH, First Half
14	SJ20392	1	Oil Line	LH, Second Half
15	SJ29669	1	Oil Line	RH, First Half
16	SJ20394	1	Oil Line	RH, Second Half
17	SJ20395	1	Oil Line	Steering Return, First Half
18	SJ20396	1	Oil Line	Steering Return, Second Half
19	SJ20398	1	Oil Line	Pump to Steering, Second Half
20	SJ25858	1	Oil Line	Pump to Steering, First Half
21	SJ22688	1	Bracket	-
22	SU40225	3	Clamp	-
23	19M7774	2	Screw	M6 X 12
24	SJ25226	1	Bracket	-
25	SJ29677	1	Bracket	Steering Hose
26	SJ25328	1	Bracket	Steering Line Mounting
27	19M7897	2	Screw	M8 X 35
28	R213663	2	Clamp	-
29	SJ24827	1	Steering Control Unit	-
30	38H5029	1	Tee Fitting	-
31	38H5027	1	Elbow Fitting	-
32	51M7045	1	O-Ring	19.300 X 2.200 mm
33	SU49618	7	Clamp	-
34	19M7833	1	Screw	M6 X 35
35	R28782	2	O-Ring	-
36	19M7160	1	Cap Screw	M6 X 30
37	24M7139	1	Washer	6.400 X 18 X 1.600 mm

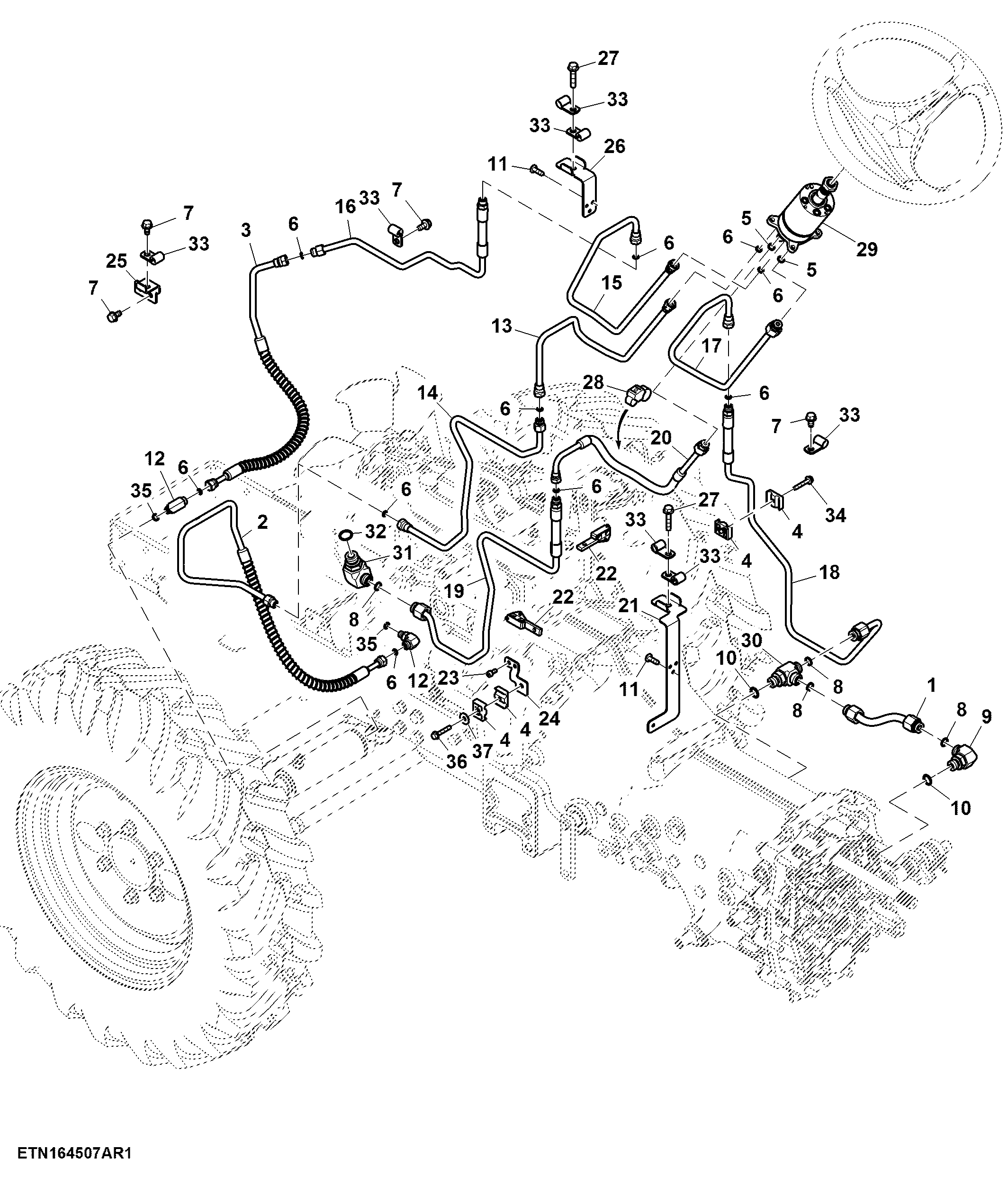

Steering Control and Steering Lines, Heavy Duty Axle

Нет текстового описания
