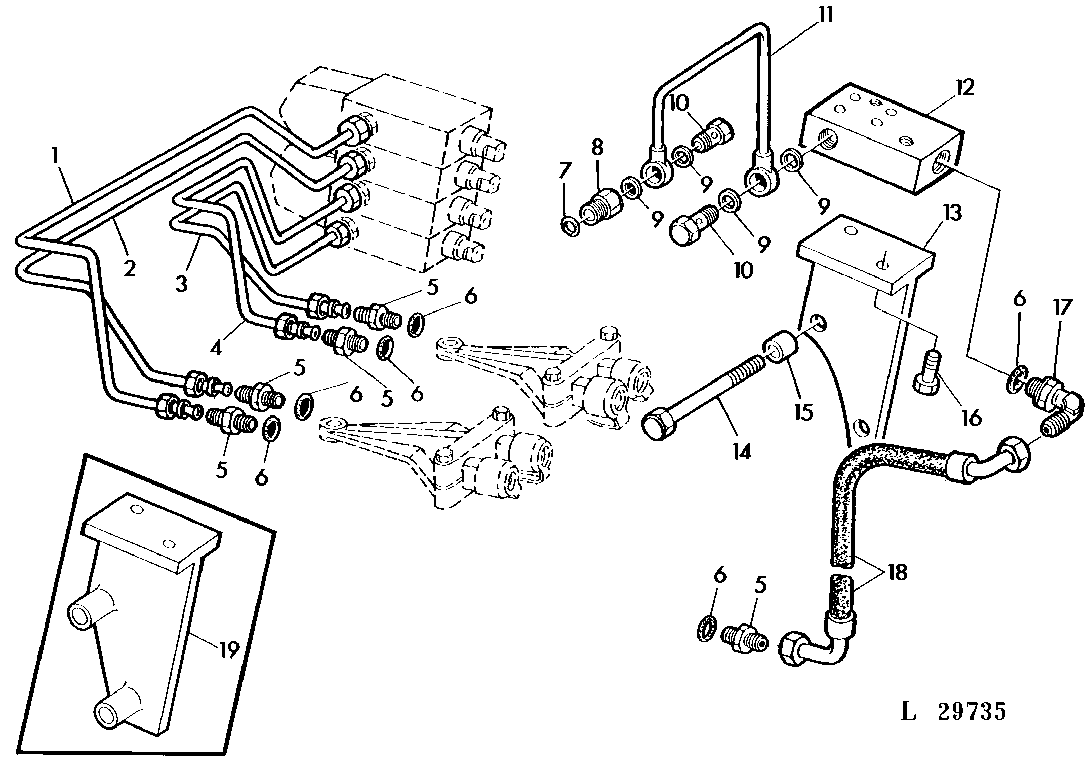

HYDR OIL LINES FOR SELECTIVE CONTROL VALVES(OPERATOR'S CAB) [02E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL28667	1	Oil Line	REAR,LH (SUB FOR AL25243)
2	AL28666	1	Oil Line	REAR,LH (SUB FOR AL25242)
3	AL28664	1	Oil Line	REAR,RH (SUB FOR AL25240)
4	AL28665	1	Oil Line	REAR,RH (SUB FOR AL25241)
5	R27237	1	Fitting	-
6	R26375	1	O-Ring	-
7	R26906	1	O-Ring	-
8	T32201	1	FITTING	7/8"X5/8"
9	51M4238	4	Sealing Ring	16X20MM
10	L63537	2	Hollow Screw	(SUB FOR T32204)
11	AL25245	1	Housing	-
12	L34376	1	Valve Stack	(SUB FOR L30454)
13	AL29858	1	Bracket	-
14	19H3458	2	Cap Screw	9/16"X8-3/4" (SUB FOR 19H3319, 19H3429)
14	19H3458	2	Cap Screw	9/16"X8-3/4" (SUB FOR 19H3319, 19H3429)
15	L33629	2	Spacer	-
16	19H1900	2	Cap Screw	5/16"X3/4"
17	AR26763	1	ELBOW FITTING	3/4"
18	AL35678	1	Hydraulic Hose	(SUB FOR AL25244, AL28668, AL31095)
19	AL24966	1	SUPPORT	-

HYDR OIL LINES FOR SELECTIVE CONTROL VALVES(OPERATOR'S CAB) [02E16]
