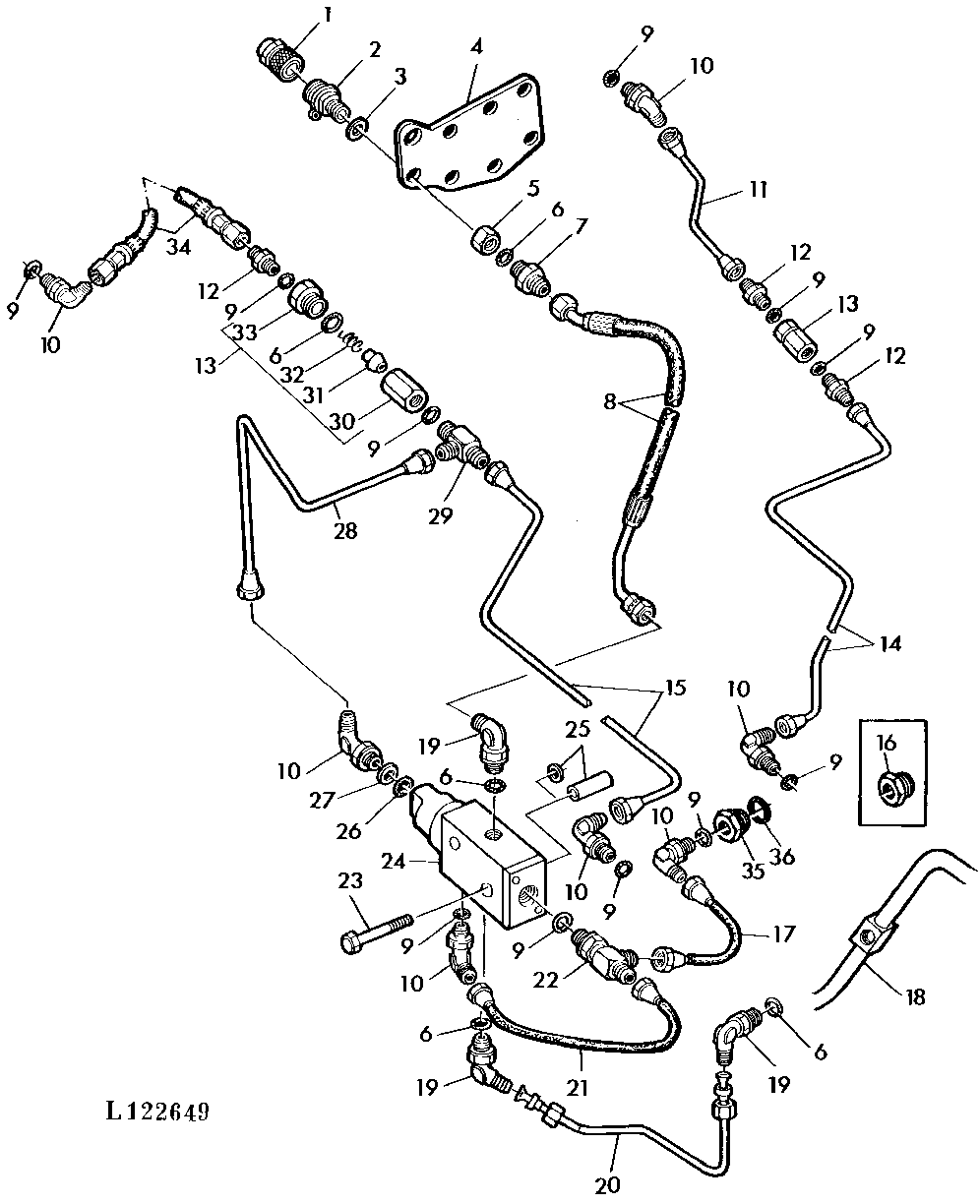

BRAKE VALVE FOR HYDR.TRAILER BRAKE (OLD TYPE) [02B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR52361	1	HYD. QUICK-CONNECT COUPLER	-
2	AR52372	1	PLUG	-
3	L37599	1	Sealing Ring	(SUB FOR 51M4236)
4	L30207	1	PLATE	-
5	L40525	1	Nut	(SUB FOR L30206)
6	R26448	6	O-Ring	-
7	R27212	1	Fitting	-
8	AL35656	1	Hydraulic Hose	(SUB FOR AL24693)
9	R26287	11	O-Ring	-
10	AR26746	7	Elbow Fitting	-
11	AL36198	1	Hydraulic Hose	LH (SUB FOR AL25102)
11	AL29860	1	OIL LINE	LH
12	R27139	3	FITTING	-
13	AL25103	2	Valve	ASSY,INCL KEYS 6,31-34
14	AL25114	1	OIL LINE	LH
15	AL25113	1	OIL LINE	RH
16	L28639	1	Pipe Plug	(ORD L41524, L41547)
17	AL36122	1	Hose	(SUB FOR AL23076)
18	AL25025	1	OIL LINE	-
18	AL25027	1	OIL LINE	(A)
18	AL28669	1	OIL LINE	-
19	AR26725	3	ELBOW FITTING	-
20	AL23899	1	OIL LINE	-
21	AL36123	1	Hydraulic Hose	(SUB FOR AL25104)
22	AL25099	1	TEE FITTING	1,2MM
22	AL25791	1	TEE FITTING	1,4MM
23	19H2054	1	CAP SCREW	3/8"X4-3/4"
24	AL25097	1	VALVE	(ORD AL25867)
24	AL25867	1	VALVE	ASSY
25	28H1878	1	SPACER	3/8"X.438"
25	24H1122	1	Washer	(A) 3/8"X7/8"X.075"
26	L53811	1	O-Ring	-
27	51M4234	1	Sealing Ring	12X16MM
28	AL25143	1	OIL LINE	-
29	AR45251	1	Tee Fitting	-
30	L30719	2	Valve	-
31	L30722	2	Poppet	-
32	L30720	2	Compression Spring	-
33	L30721	2	Valve Cover	-
34	AL36198	1	Hydraulic Hose	RH (SUB FOR AL25102)
34	AL36198	1	Hydraulic Hose	RH (SUB FOR AL29859)
35	L41524	1	Adapter Fitting	-
36	L41547	1	O-Ring	-

BRAKE VALVE FOR HYDR.TRAILER BRAKE (OLD TYPE) [02B07]

Нет текстового описания
