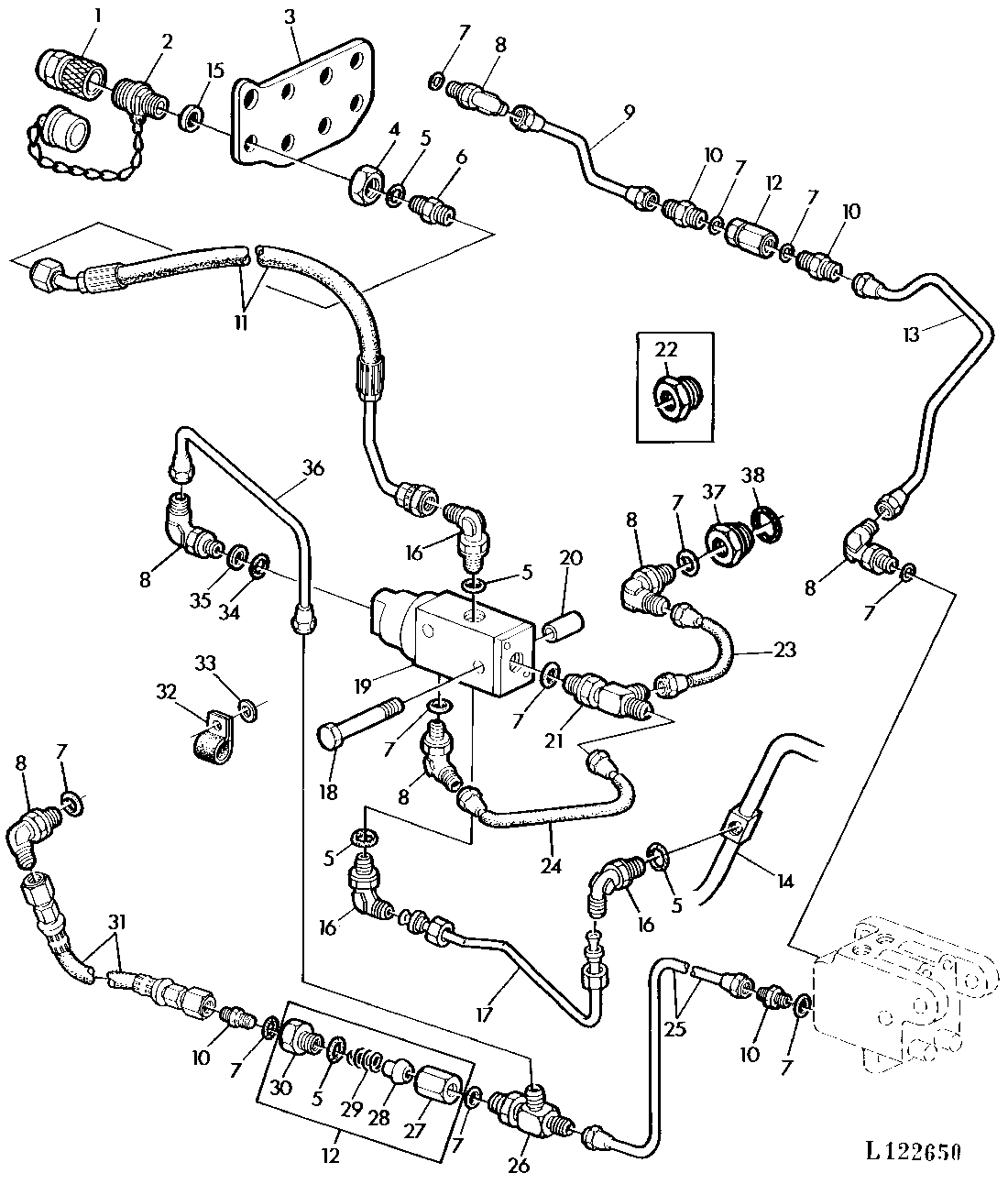

BRAKE VALVE FOR HYDR.TRAILER BRAKE (NEW TYPE) [02B09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR52361	1	HYD. QUICK-CONNECT COUPLER	-
2	AR52372	1	PLUG	-
3	L30207	1	PLATE	-
4	L40525	1	Nut	-
5	R26448	6	O-Ring	-
6	R27212	1	Fitting	-
7	R26287	11	O-Ring	-
8	AR26746	7	Elbow Fitting	-
9	AL29860	1	OIL LINE	-
10	R27139	4	FITTING	-
11	AL35656	1	Hydraulic Hose	-
12	AL25103	2	Valve	-
13	AL25114	1	OIL LINE	-
14	AL25027	1	OIL LINE	(A)
14	AL25025	1	OIL LINE	-
14	AL28669	1	OIL LINE	-
15	L37599	1	Sealing Ring	-
16	AR26725	3	ELBOW FITTING	-
17	AL23899	1	OIL LINE	-
18	19H2054	1	CAP SCREW	3/8"X4-3/4"
19	AL25867	1	VALVE	-
20	28H1878	1	SPACER	3/8"X.438"
20	24H1122	1	Washer	(A) 3/8"X7/8"X.075"
21	AL25099	1	TEE FITTING	1,2MM
21	AL25791	1	TEE FITTING	1,4MM
22	L28639	1	Pipe Plug	(ORD L41524, L41547)
23	AL36122	1	Hose	-
24	AL36123	1	Hydraulic Hose	-
25	AL36189	1	Oil Line	-
26	AR45251	1	Tee Fitting	-
27	L30719	2	Valve	-
28	L30722	2	Poppet	-
29	L30720	2	Compression Spring	-
30	L30721	2	Valve Cover	-
31	AL36198	1	Hydraulic Hose	-
32	L37536	1	Clamp	-
33	24M7028	1	Washer	10,5X21X2MM
34	L53811	1	O-Ring	-
35	51M4234	1	Sealing Ring	12X16MM
36	AL36187	1	Oil Line	-
37	L41524	1	Adapter Fitting	-
38	L41547	1	O-Ring	-

BRAKE VALVE FOR HYDR.TRAILER BRAKE (NEW TYPE) [02B09]

Нет текстового описания
